THOMSON MS33-100279 LINEAR STAGE
Quick Overview
Manufactured By: THOMSON
Manufacturer Part Number: MS33-100279
IMS Product Code: 2153144
Packaging: Sold Individually
Description:

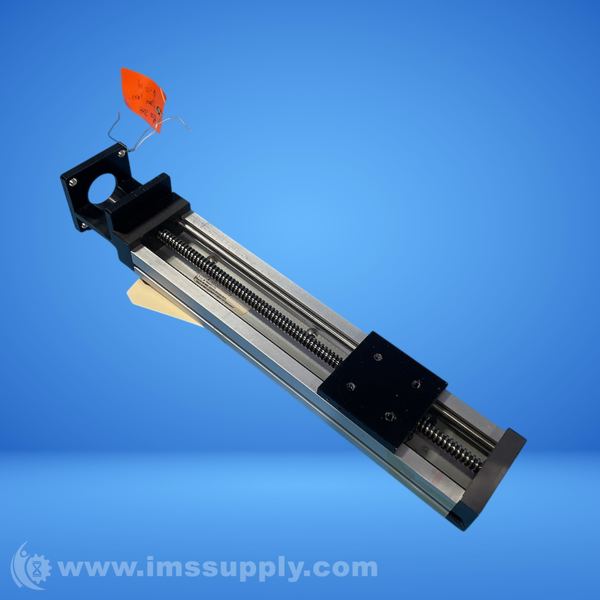

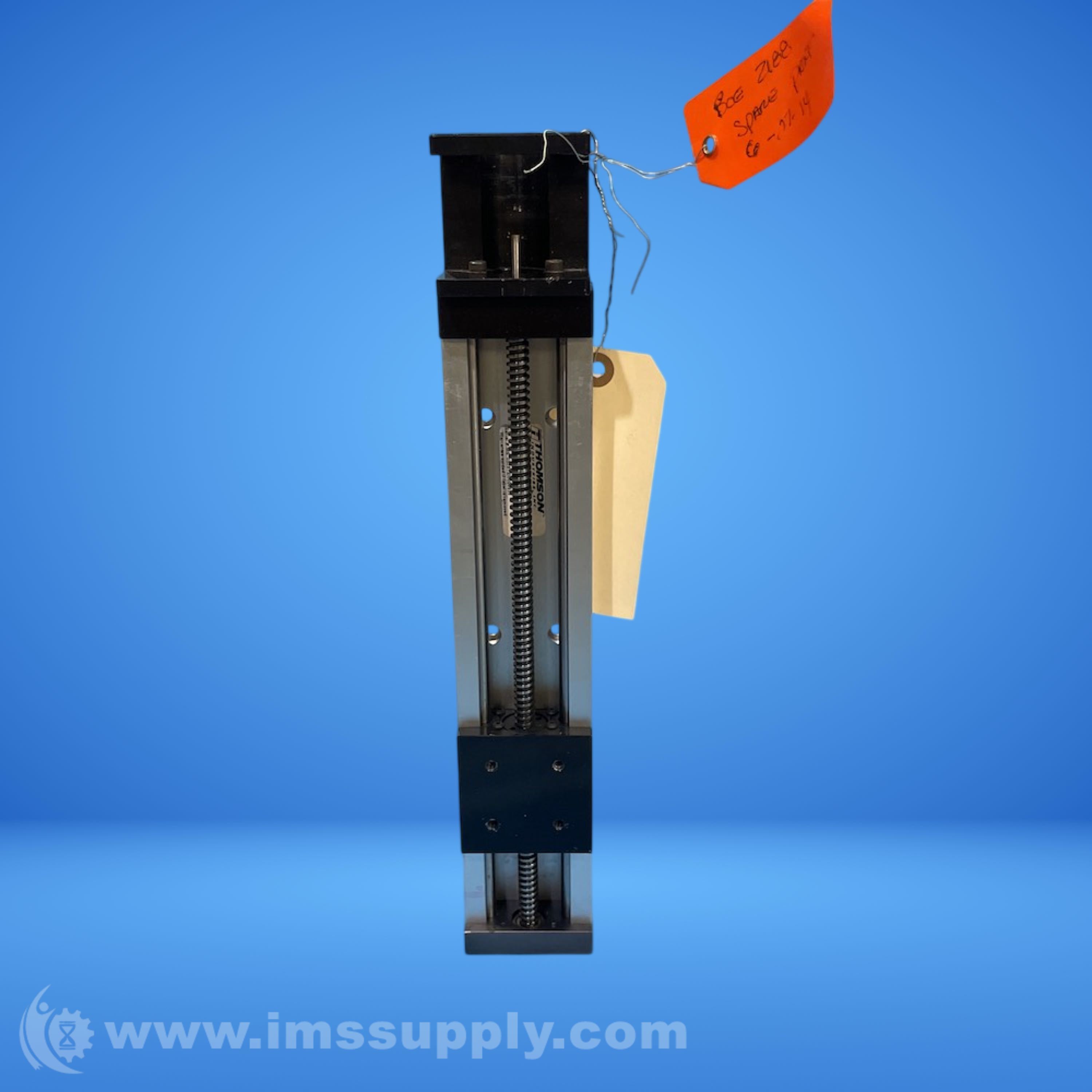

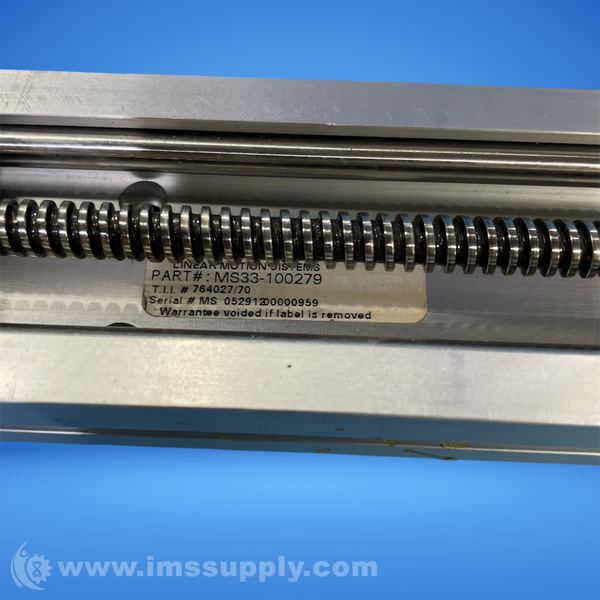

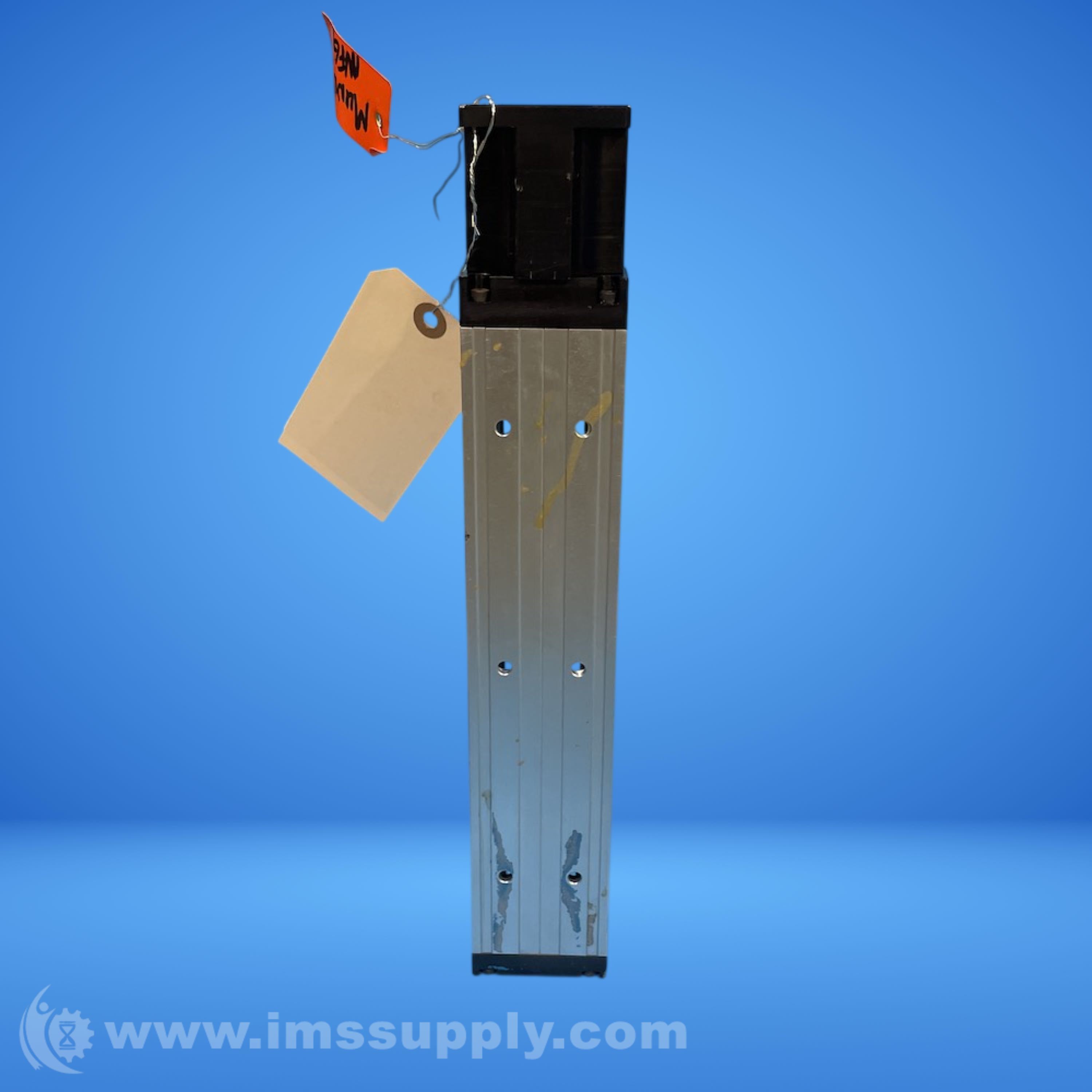

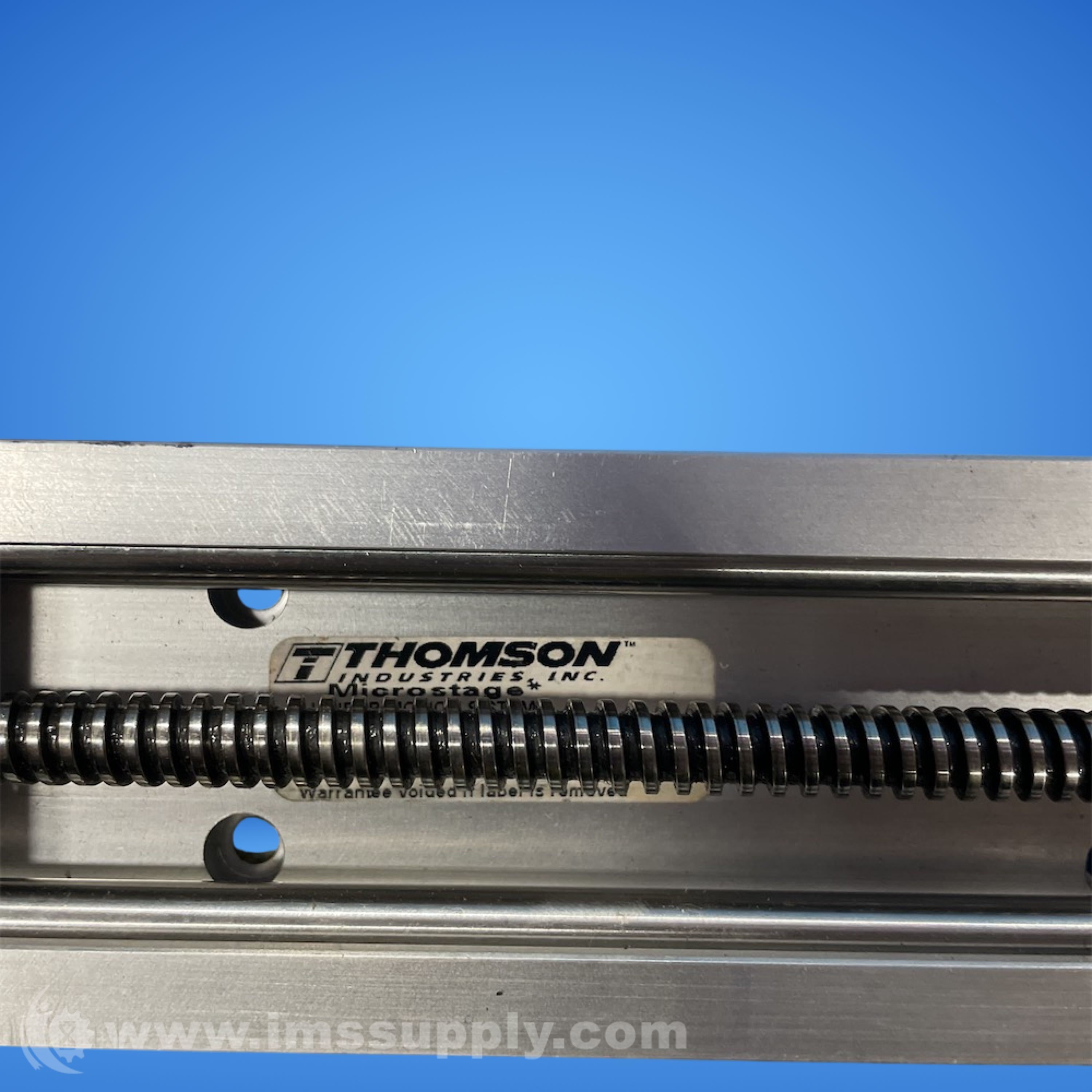

Thomson MS33-100279 Linear Stage
Thomson MS33-100279 is a micro stage linear guide with a lead screw drive and ball guide, featuring 0.005 mm repeatability and a maximum linear speed of 4.17 in/s.
Specifications
- Carriage Type: Single Standard Carriage
- Drive: Lead Screw
- Guide: Ball
- Material: Steel; Aluminum; Plastic
- Profile size (width × height): 60 x 33 mm
- Screw Nut Type: Preloaded
- Shaft Configuration: Inline
- Shaft Quantity: Single Shaft
- Weight: 1.8 kg
- Input speed, maximum: 2000 RPM
- Maximum Acceleration: 9.8 m/s²
- Maximum Linear Speed: 4.17 in/s
- Repeatability: 0.005 mm
- Travel Per Shaft Rev: 0.125 in
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
