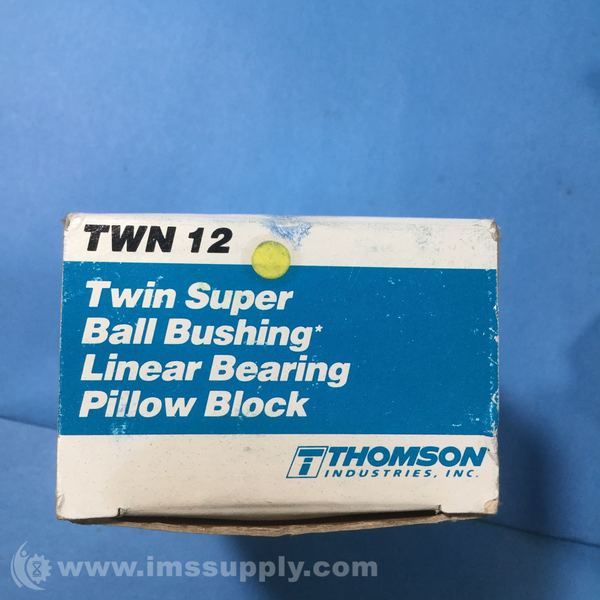

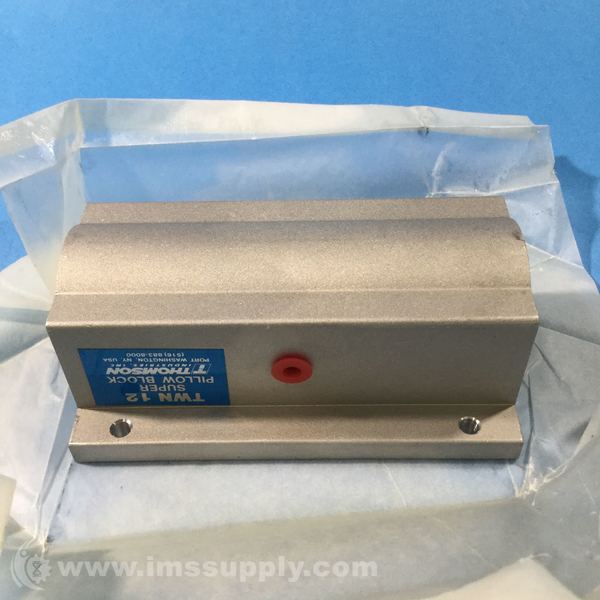

THOMSON TWN 12 TWIN SUPER BALL BUSHING LINEAR BEARING PILLOW BLOCK
Quick Overview
Manufactured By: THOMSON
Manufacturer Part Number: TWN 12
IMS Product Code: 1842805
Packaging: Sold Individually
Description:
Thomson TWN 12 Twin Super Ball Bushing Linear Bearing Pillow Block
Thomson TWN12 Pillow Block Bearing, Closed, Twin, Self-aligning, for end supported applications with 0.75 in diameter Class L shafting.
Specifications
- Pillow Block Type: Pillow Block - Twin / Tandem Bearings
- Housing Type: Closed
- Bushing Type: Ball Bushing
- Measurement Standard: Inch
- Shaft Diameter: 0.7500 in
- Overall Width: 4.5000 in
- Overall Height: 1.750 in
- Overall Length: 2.750 in
- Bearing Material: Steel
- Center Shaft Height: 0.937 in
- Clearance Alignment Type: Self-Aligning
- Dynamic Load Capacity: 1200 lbf
- Operating Temperature Range: Maximum of +185 degrees F
- Series: Super TWN
- Maximum Speed: 3 m/s
- Type: Non-Adjustable Closed Twin
- Center Line to Base: 0.937 in
- Load Capacity: 1200 lb Dynamic
- Temperature Rating: 185 deg F
- Adjustable/Not Adjustable: Not Adjustable
- Closed/Open: Closed
- Roll Pack: No Roll Pack
- Food Grade Rated: Not Food Grade
- Self Alignment: Self-aligning
- Single/Twin: Twin
- Use with shafting class: L
- Nominal Diameter: 0.75 in
- Length: 2-3/4 in
- Width: 4-1/2 in
- Height: 1-3/4 in
- Load Capacity, Dynamic: 1200 lbf
