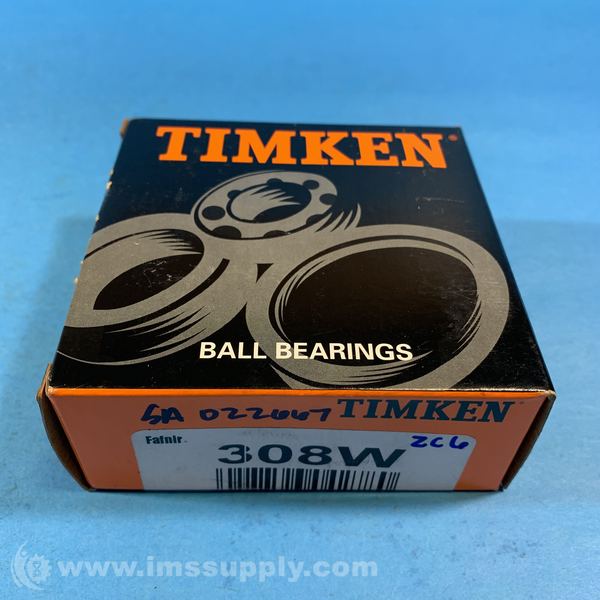

TIMKEN 308W RADIAL BALL BEARING
Quick Overview
Manufactured By: TIMKEN
Manufacturer Part Number: 308W
IMS Product Code: 1923762
Packaging: Sold Individually
Description:
Timken 308W Radial Ball Bearing
Radial ball bearings consist of an inner and outer ring with a cage containing a complement of precision balls. The standard Conrad-type bearing has a deep-groove construction capable of handling radial and axial loads from either direction in versatile designs that permit relatively high-speed operation.
Specifications
- Bore Diameter: 40 mm
- Outside Diameter: 90 mm
- Bearing Width: 23 mm
- Ball Type: Steel
- Closure Type: Open
- Internal Clearance: R
- Max Operating Temperature: 120 C
- Min Operating Temperature: -50 C
- Radial Dynamic Load Capacity: 15000 lbf
- Radial Static Load Capacity: 8800 lbf
- Limiting Speed (Grease): 3850 rpm
- Limiting Speed (Oil): 4620 rpm
- Series: 300
