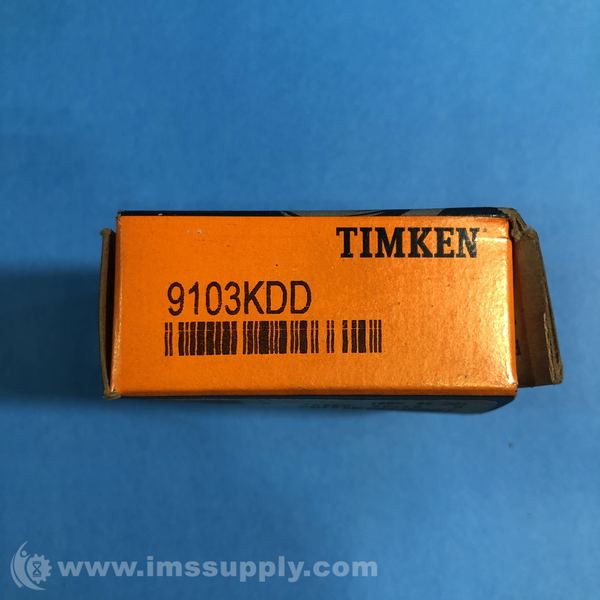

TIMKEN 9103KDD RADIAL BALL BEARING
Quick Overview
Manufactured By: TIMKEN
Manufacturer Part Number: 9103KDD
IMS Product Code: 1924572
Packaging: Sold Individually
Description:
Timken 9103KDD Radial Ball Bearing
Double Shielded Deep Groove Radial Ball Bearing, 17 mm Bore Diameter, 35 mm OD, 10 mm Width
Specifications
- d - Bore: 17 mm
- Ball Type: STEEL
- D - Outer Diameter: 35 mm
- Bearing Width: 10 mm
- Ce - Dynamic Radial Rating: 6660 N
- C0 - Static Radial Rating: 3250 N
- Limiting Speed (Grease): 11561 rpm
- Limiting Speed (Oil): 13488 rpm
- R - Inner Ring "To Clear" Radius: 0.30 mm
- r - Outer Ring "To Clear" Radius: 0.3 mm
- da - Inner Ring Backing Diameter: 19.05 mm
- Da - Outer Ring Backing Diameter: 33.02 mm
- Material: High-strength steel
- Bore Size: 17 mm
- Shield Type: Double Metal Shields (KDD)
- Dynamic Load Capacity: 1500 lbf
- Maximum Speed: 13488 rpm
- Number of Rows: 1
- Outside Diameter: 35 mm
- Seal/Shield Type: Double Shielded
- Series: Extra Light 9100K Series
- Static Load Capacity: 730 lbf
- Tolerance: +0.0000 to -0.0003 in
- Width: 0.393 in
- Design units: METRIC
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 15 hours and 17 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 15 hours and 17 minutes.
