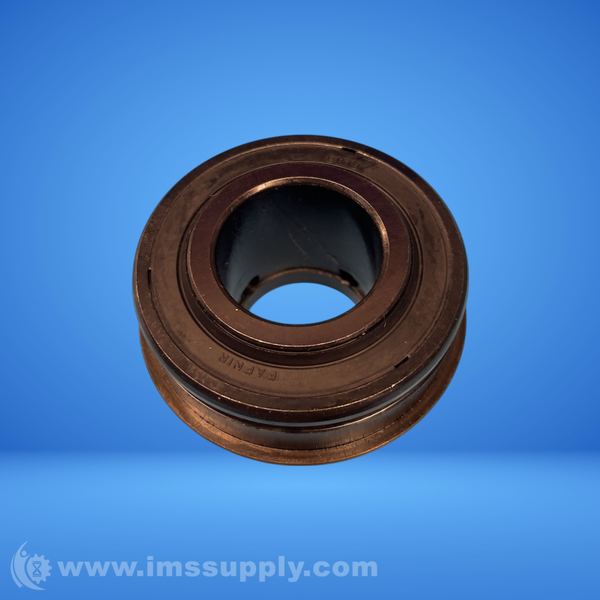

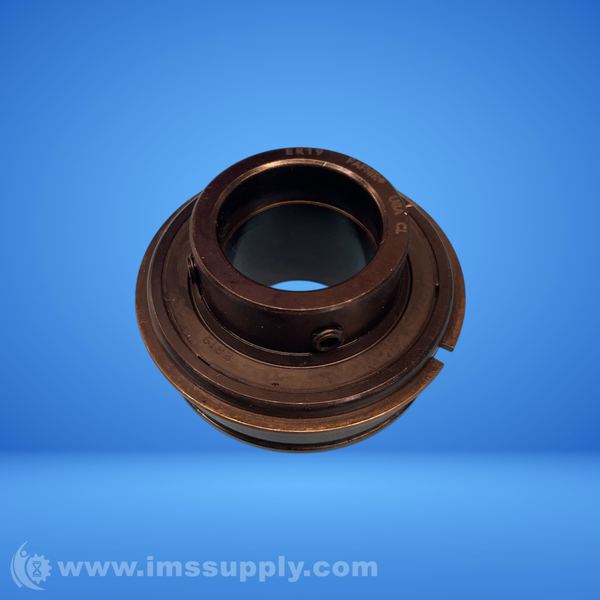

TIMKEN ER19 BALL BEARING
Quick Overview
Manufactured By: TIMKEN
Manufacturer Part Number: ER19
IMS Product Code: 2129135
Packaging: Sold Individually
Description:
Timken ER19 Ball Bearing
Ball Insert Bearing - Straight Bore, 1-3/16 in Bore Diam., 2.4409 in OD, 1.5000 in Width, Medium Duty, Set Screw Locking
Specifications
- Shaft Size d: 1 3/16 in
- Bore Type: Cylindrical bore
- Bearing Type: Ball Bearing
- Material: Bearing Steel
- Lubrication Type: Relubricatable
- O.D. Type: Cylindrical OD
- Sub Series: ER
- Seal Type: Narrow Shroud
- Basic Outer Ring Size: 206
- Outside Diameter D: 2.441 in
- Inner Ring Width B: 1.547 in
- Outside Ring Width C: 0.875 in
- Radius r: 0.024 in
- Center of Bearing from End S: 0.625 in
- Dimension S1: 0.922 in
- Dimension F: 1.578 in
- Dimension J: 0.344 in
- Dimension M: 0.219 in
- Dimension D1: 2.641 in
- Dimension T: 0.063 in
- Dimension X: 0.797 in
- Dimension Y: 0.75 in
- Set Screw Size: M6x1
- Number of Set Screws: 2
- Angle between Set Screws: 90 degrees
- Static Load Rating: 2530 lbf
- Dynamic Load Rating: 4850 lbf
- Bore Diameter: 1-3/16 in
- Outside Diameter: 2.4409 in
- Internal Clearance: C0
- Overall Width: 1.5000 in
- Outer Ring Width: 0.8750 in
- Duty Type: Medium Duty
- Inner Ring Width: 1.5000 in
- Locking Device: Set Screw
- Cage Material: Nylon
- Finish Coating: Black Oxide Coated
- Max Rpm: 4570 rpm
- Series: ER
- Weight: 0.83 lbs
- Product Type: Ball Insert Bearings

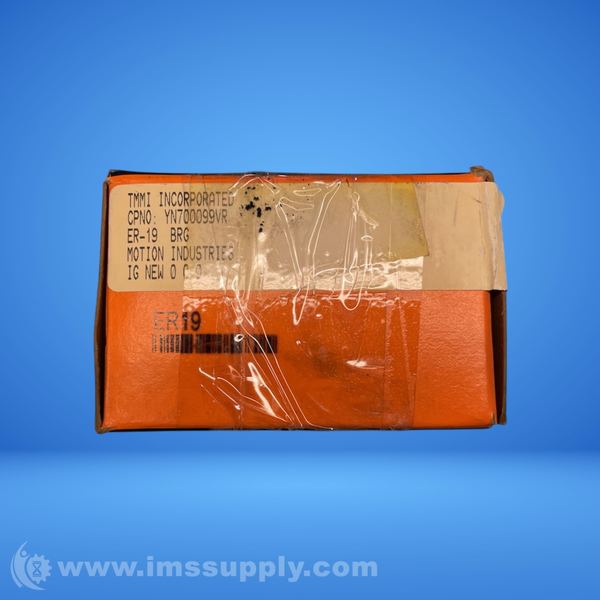

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
