TIMKEN P201KDD Z3 FS50000 STEEL BALL BEARING
Quick Overview
Manufactured By: TIMKEN
Manufacturer Part Number: P201KDD Z3 FS50000
IMS Product Code: 1924562
Packaging: Sold Individually
Description:

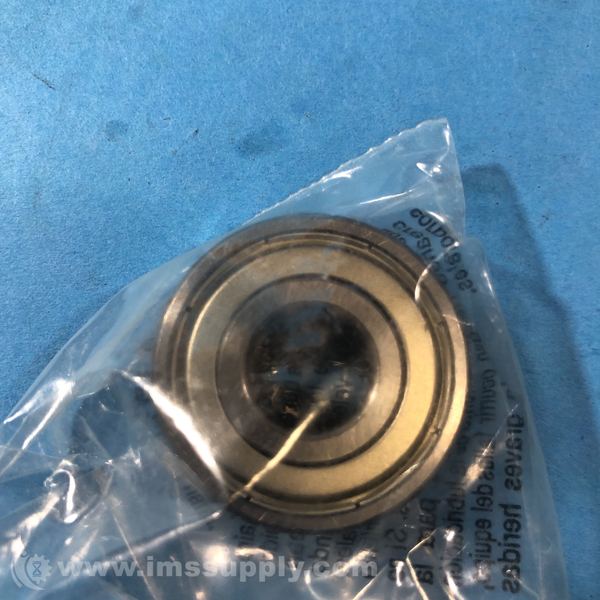

Timken P201KDD Z3 FS50000 Steel Ball Bearing
Single Row Deep Groove Ball Bearing, Metric Series, 12mm Bore, 32mm OD, 10mm Width, Double Shielded, Steel Cage, C3 Clearance, ISO P0 Tolerance
Specifications
- Inner diameter (mm): 12
- Outer diameter (mm): 32
- Width (mm): 10
- Bearing material: Steel
- Cage material: Steel
- Closure type: Double Shielded
- Bore type: Straight
- Row type: Single Row Non-Fill Slot
- Radial dynamic load capacity: 1700 lbf
- Radial static load capacity: 690 lbf
- Maximum operating RPM: 15910 rpm
- Minimum operating temperature: -50 degrees C
- Maximum operating temperature: 120 degrees C
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 6 In Stock
Ships today if ordered in the next 13 hours and 17 minutes.
