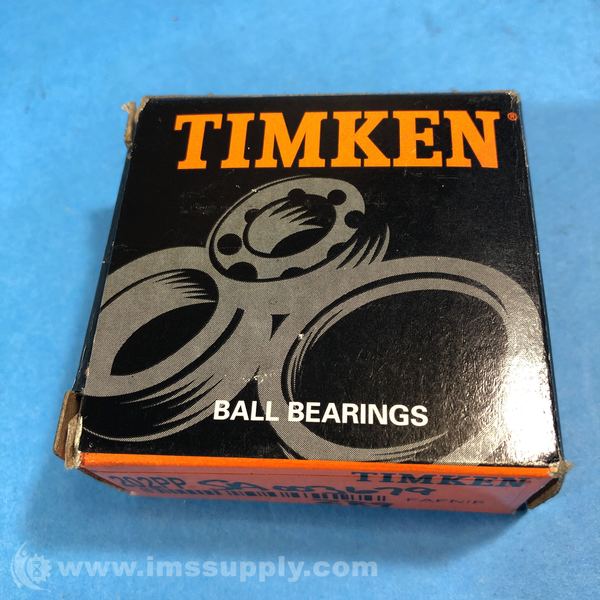

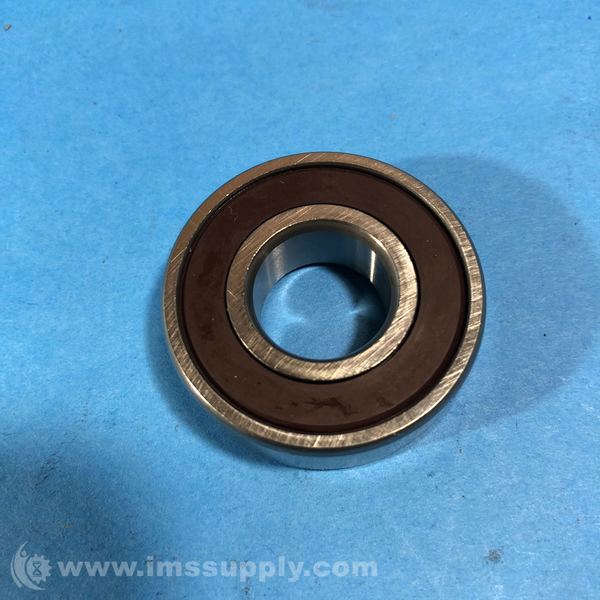

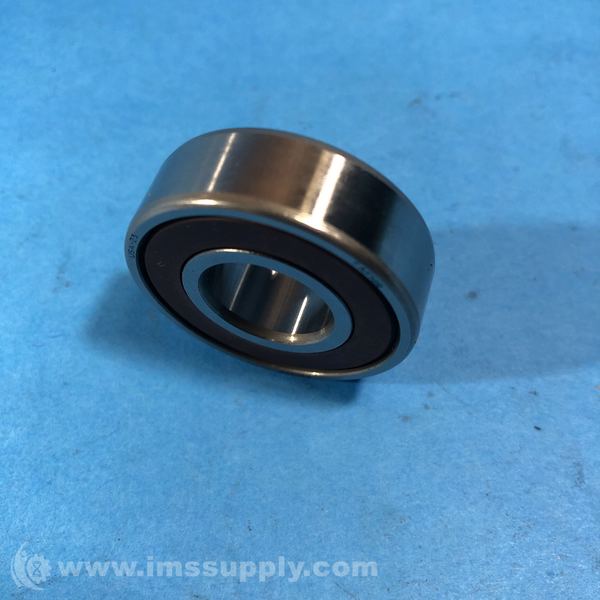

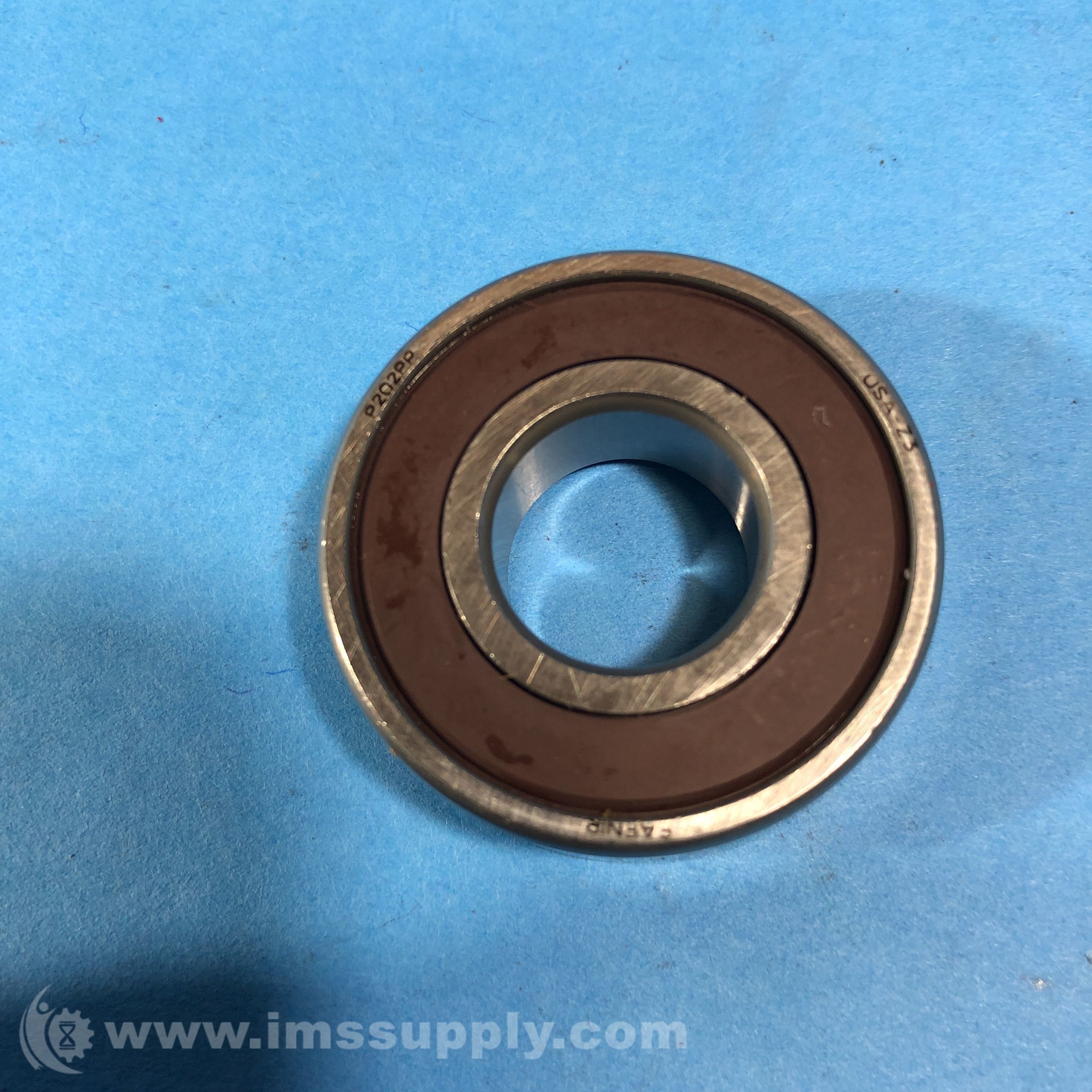

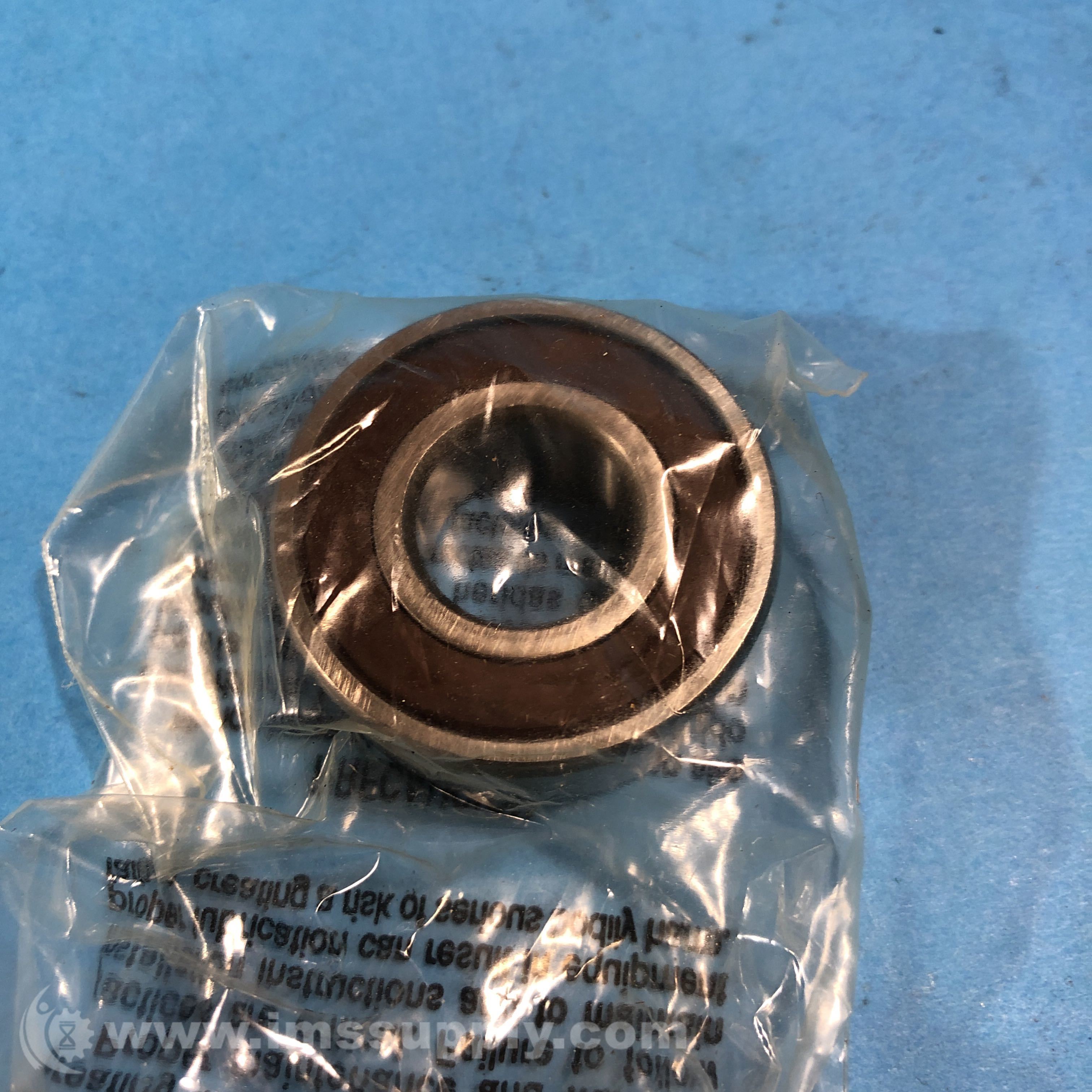

TIMKEN P202PP Z3 FS50000 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: TIMKEN
Manufacturer Part Number: P202PP Z3 FS50000
IMS Product Code: 1924429
Packaging: Sold Individually
Description:
Timken P202PP Z3 FS50000 Deep Groove Ball Bearing
Deep groove ball bearing with 15mm bore, 35mm OD, and 11mm width. Double sealed with C3 clearance and ISO P0 tolerance.
Specifications
- Bore Type: Straight
- Bore Diameter: 15 mm
- Outside Diameter: 35 mm
- Overall Width: 11 mm
- Closure Type: Double Sealed
- Snap Ring Included: Without Snap Ring
- Bearing Material: Steel
- Max Operating Temperature: 120 degrees C
- Min Operating Temperature: -50 degrees C
- Radial Dynamic Load Capacity: 1900 lbf
- Radial Static Load Capacity: 830 lbf
- Maximum Operating RPM: 20000 RPM
- Precision Class: ABEC1
- Relubricatable: No
- Rolling Element: Ball
- Row Type: Single
- Self Aligning: No
- Retainer Material: Cold Rolled Steel
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 17 minutes.
