TOKYO KEIKI ETPP-M-HHD-C-10 PRESSURE SENSOR
Quick Overview
Manufactured By: TOKYO KEIKI
Manufacturer Part Number: ETPP-M-HHD-C-10
IMS Product Code: 2179516
Packaging: Sold Individually
Description:

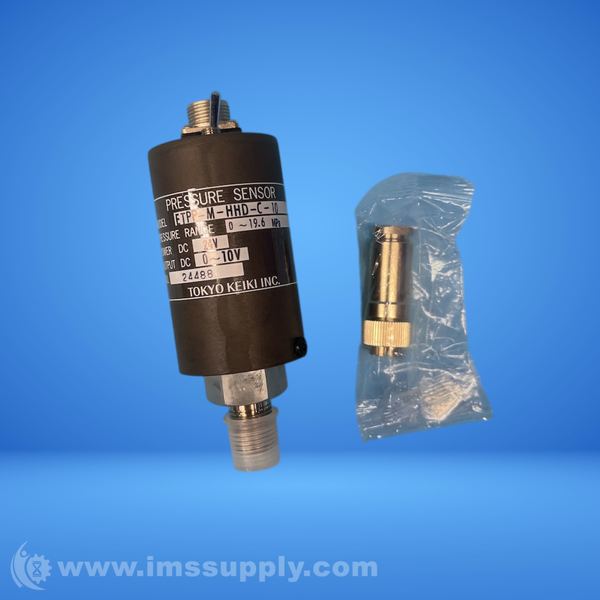

Tokyo Keiki ETPP-M-HHD-C-10 Pressure Sensor
Electronic pressure sensor with various pressure ranges and output options.
Specifications
- Pressure Ranges: 0�1 MPa, 0�10 MPa, 0�20 MPa, 0�35 MPa, 0�50 MPa
- Output Options: 0�10V DC (Min. load resistance 10 kO), 0�5V DC (Min. load resistance 10 kO), 4�20mA DC (Max. load resistance 350 O)
- Power Supply Variants: DC24V (�15%), DC�15V (�5%), DC15V (�5%)
- Accuracy Levels: �0.25% F.S. (Code C), �0.5% F.S. (Code D)
- Temperature Stability: �0.025�0.05% F.S./degrees C
- Response Time: Under 5 milliseconds
- Operating Temperature: �20 degrees C to +70 degrees C
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
