TOMOE 700G-1T-80A CAST IRON VALVE
Quick Overview
Manufactured By: TOMOE
Manufacturer Part Number: 700G-1T-80A
IMS Product Code: 1899090
Packaging: Sold Individually
Description:

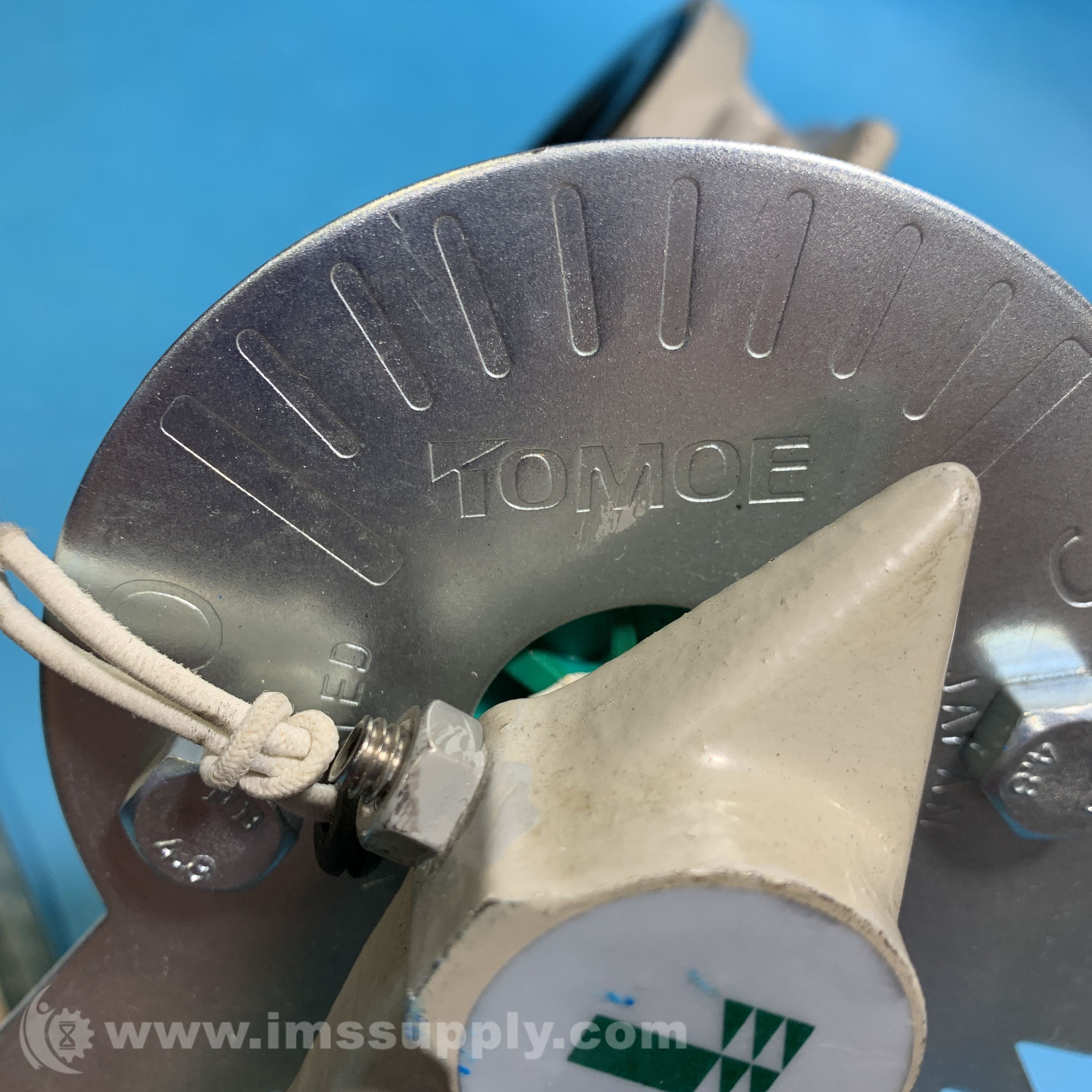

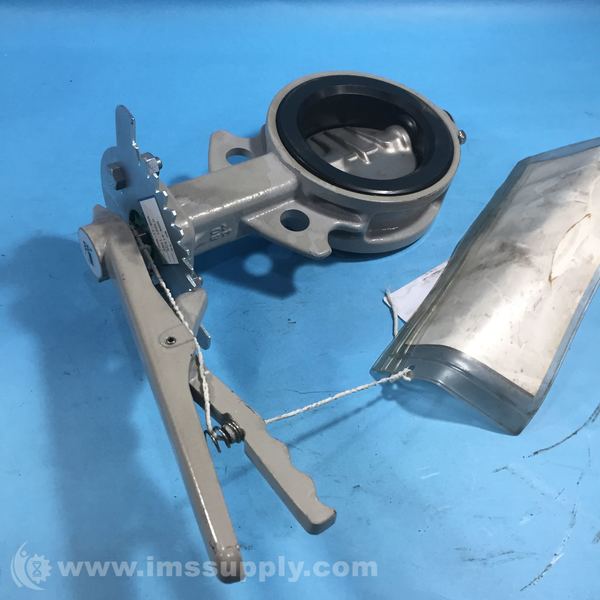

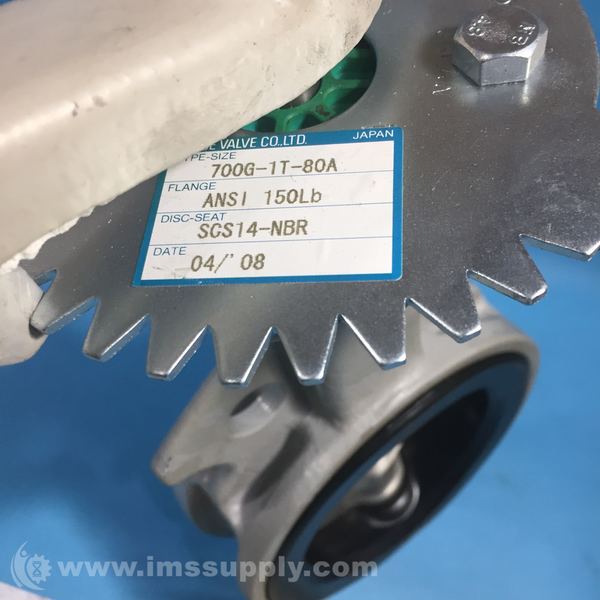

TOMOE 700G-1T-80A Cast Iron Valve
A cast iron valve with lug type connections, designed for fluid control in industrial applications.
Specifications
- Material: Cast iron
- Connections: Lug type
- Nominal Inner Diameter: DN 300
- Max pressure difference at 20 degrees C: 10 bar
- Article Compression Class: PN 10
- Seal Material: NBR (nitrile rubber)
- Min Temperature: 5 degrees C
- Max temperature: 85 degrees C
- Square Head Size: 22 mm
- Valve Design: Centric
- Max pressure difference as end valve: 10 bar
- Spindle Material: Stainless Steel
- Length operating element: 450 mm
- Bore: 300 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 46 minutes.
