TOSHIBA 0014SDSR41A-P 1HP 1800RPM MOTOR
Quick Overview
Manufactured By: TOSHIBA
Manufacturer Part Number: 0014SDSR41A-P
IMS Product Code: 2118844
Packaging: Sold Individually
Description:

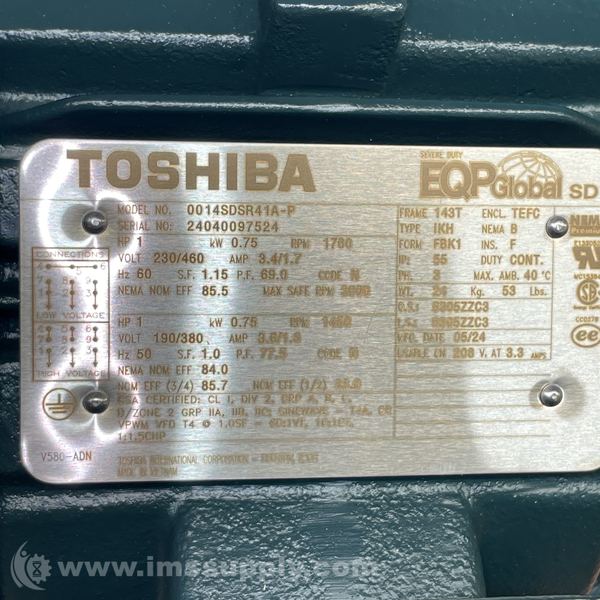

Toshiba 0014SDSR41A-P 1HP 1800RPM Motor
Toshiba EQP Global SD Series AC induction motor, 1 HP, 1800 RPM, 230/460V, 143T frame, TEFC enclosure, cast iron construction
Specifications
- Type: AC Induction Motor
- Duty: Continuous-Duty Type IKH
- Horsepower: 1 HP
- Phase: 3 Phase
- Voltage: 230/460 VAC
- Speed: 1800 RPM
- Enclosure: TEFC
- Frame: 143T
- Material: Cast Iron
- Mounting: Footed
- Service Factor: 1.15
- Insulation Class: Class F
- Shaft Diameter: 7/8 in
- Torque: 2.98 ft-lb
- Dimensions: 13.2 in L x 7.7 in H
- Weight: 51 lbs

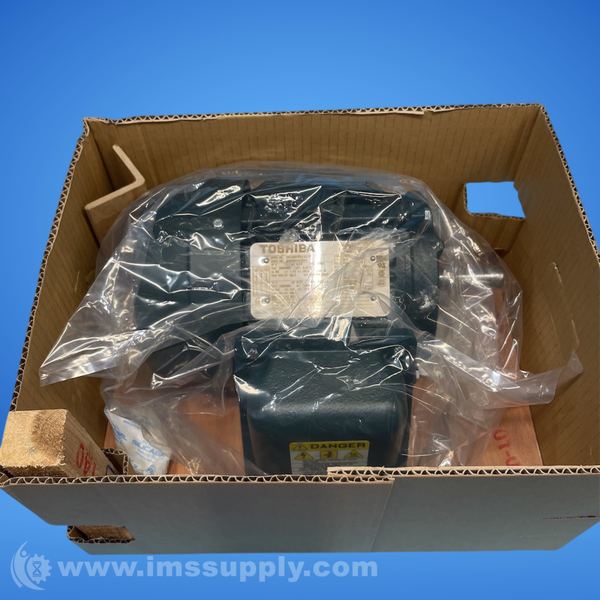

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 20 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 9 hours and 20 minutes.
