TOSHIBA 0254SDSR41A-P 25 HP ELECTRIC MOTOR

Starting At: $1,728.50

Quick Overview

Manufactured By: TOSHIBA
Manufacturer Part Number: 0254SDSR41A-P
IMS Product Code: 2017539
Packaging: Sold Individually

Description:

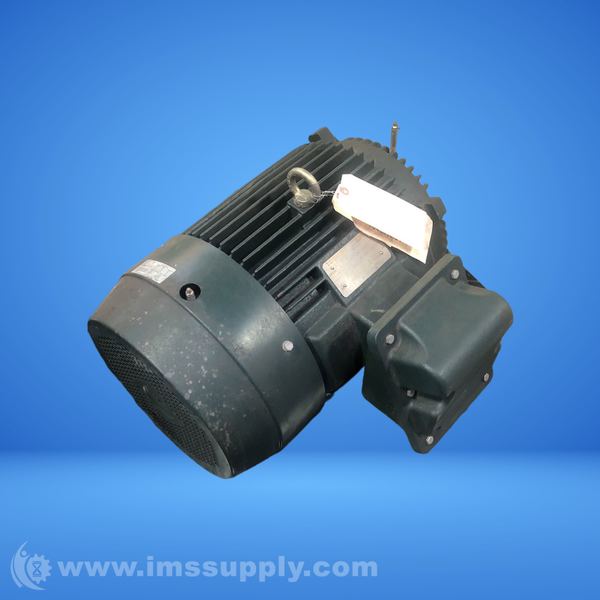

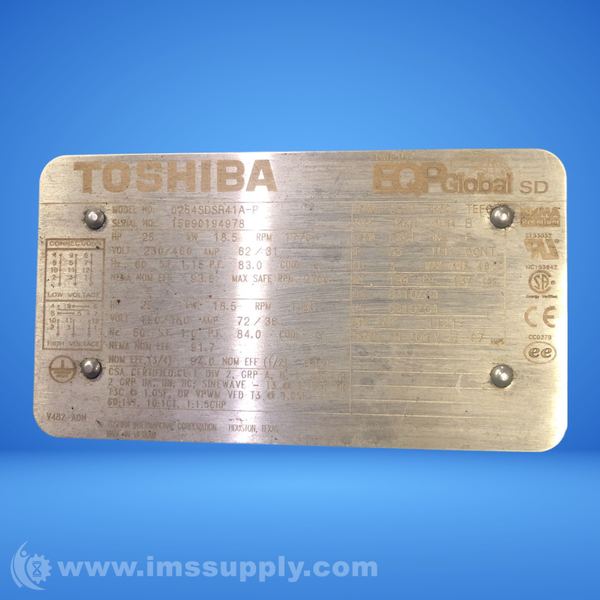

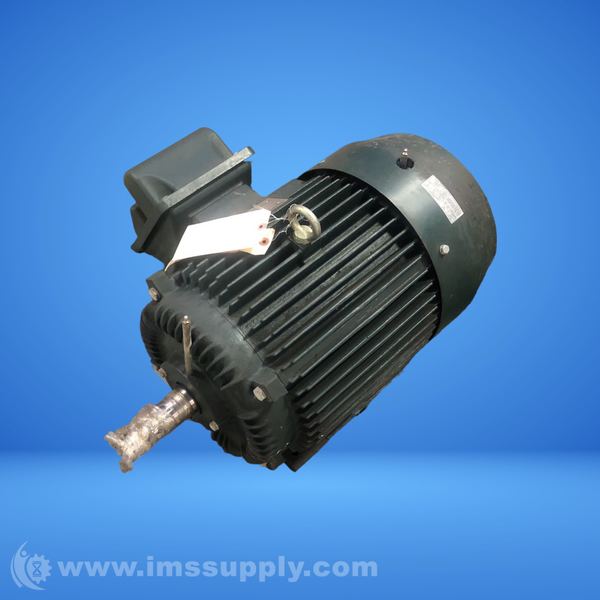

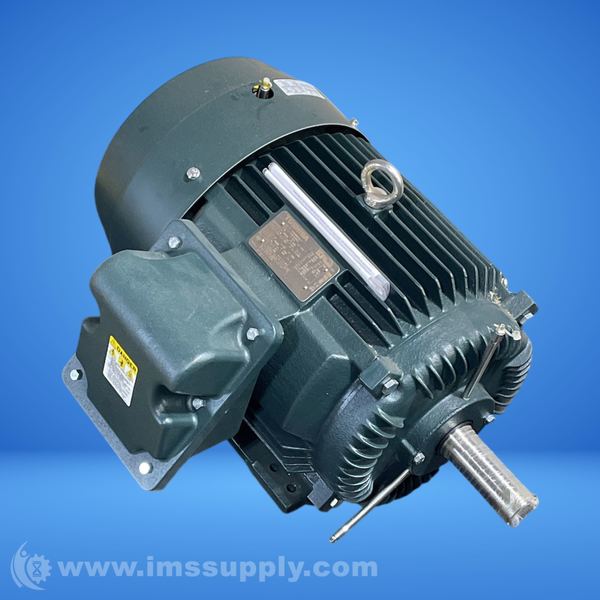

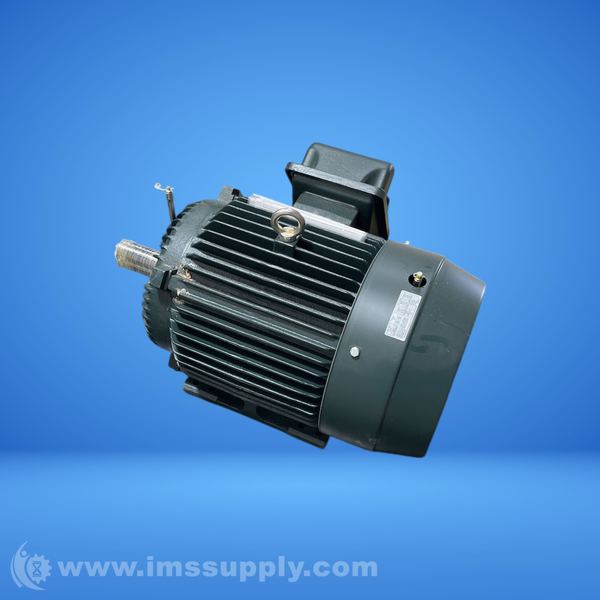

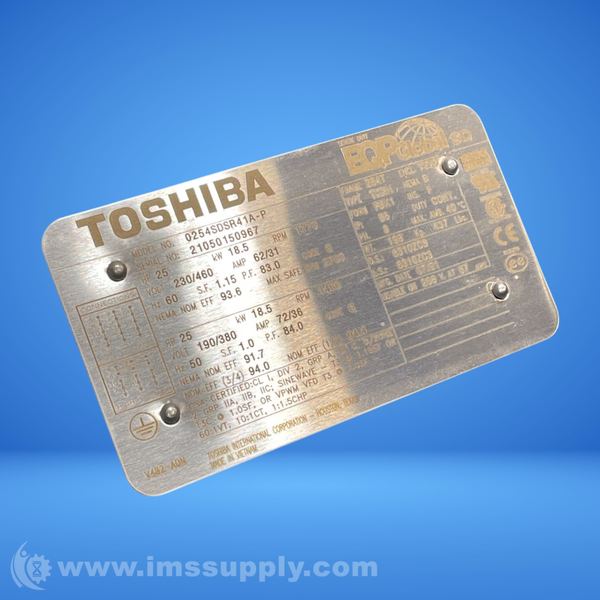

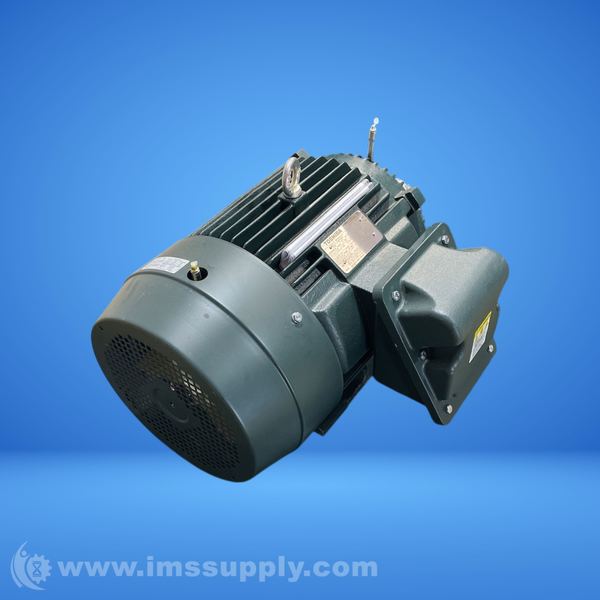

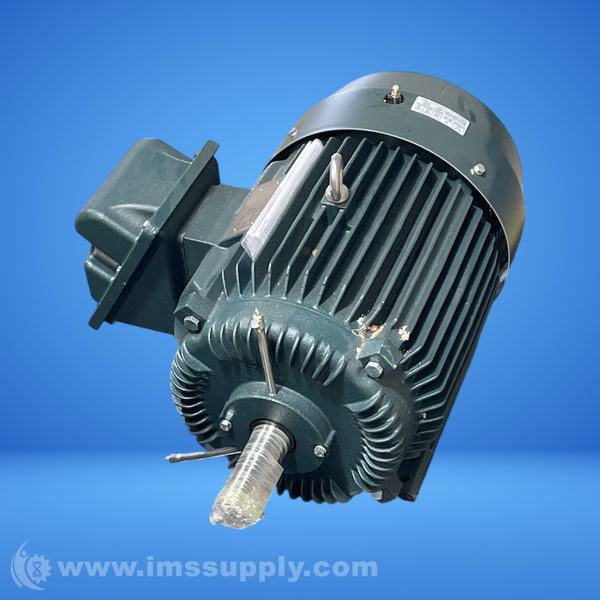

Toshiba 0254SDSR41A-P 25 HP Electric Motor

Toshiba EQP Global SD Series, 25 HP, 1800 RPM, 230/460V, 3-Phase, TEFC, NEMA 284T Frame, Cast Iron, Foot Mounted

Specifications

  • Horsepower: 25
  • Speed: 1800 RPM
  • Voltage: 230/460 VAC
  • Phase: 3
  • Enclosure: TEFC
  • Frame: 284T
  • Material: Cast Iron
  • Mounting: Footed
  • Amperage: 62/31 A
  • Frequency: 60 Hz
  • Service Factor: 1.15
  • Shaft Size: 1-7/8 in
  • Torque Rating: 74.2 ft-lb
  • Insulation Class: Class F
  • Temperature Rating: 40 deg C
  • Constant Torque Speed Range: 20:1
  • Variable Torque Speed Range: 60:1
  • Dimensions: 28.4 in L x 17.2 in H
  • Weight: 492 lbs


New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).

Availability: 1 In Stock

Ships today if ordered in the next 8 hours and 17 minutes.
