TOWA SEIDEN PRL-101 LEVEL SWITCH
Quick Overview
Manufactured By: TOWA SEIDEN INDUSTRIAL CO
Manufacturer Part Number: PRL-101
IMS Product Code: 2121382
Packaging: Sold Individually
Description:

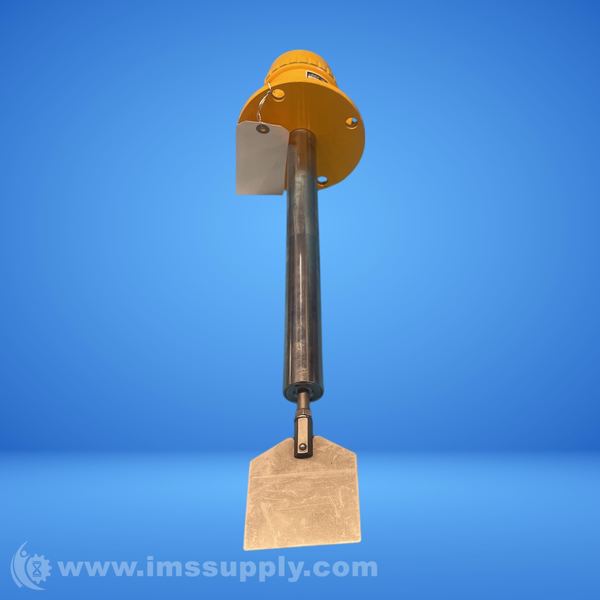

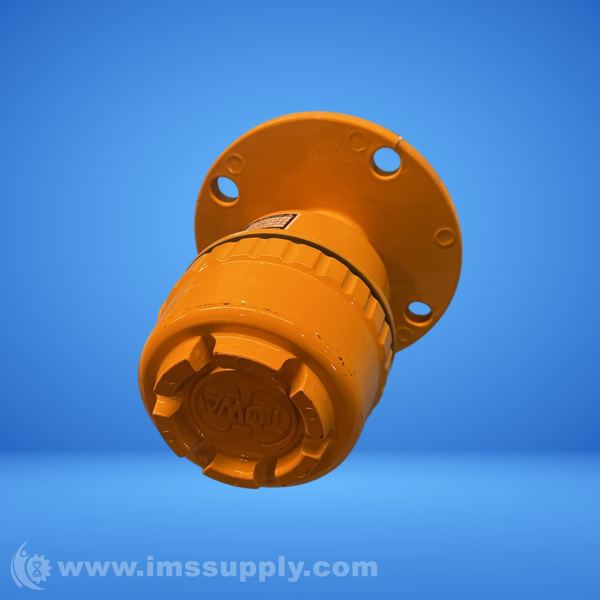

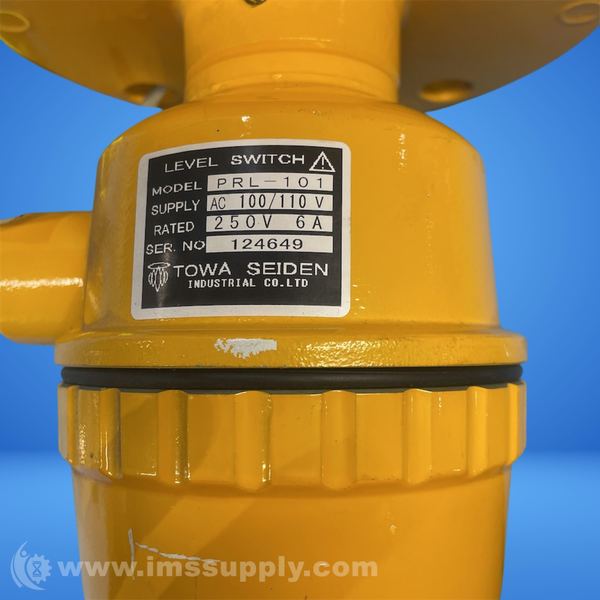

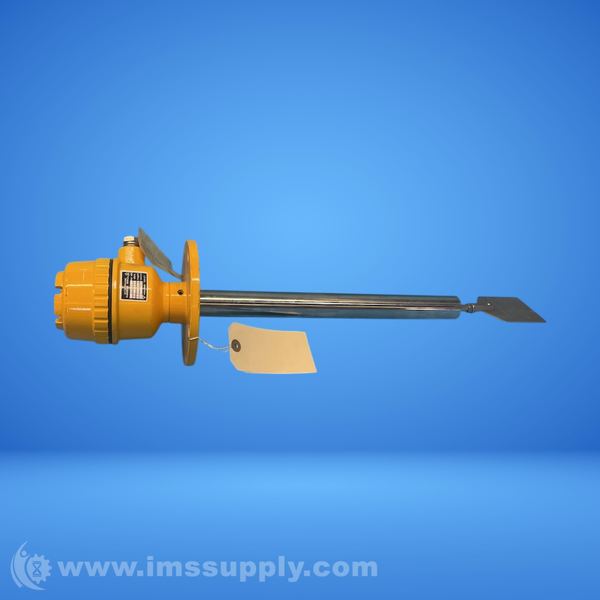

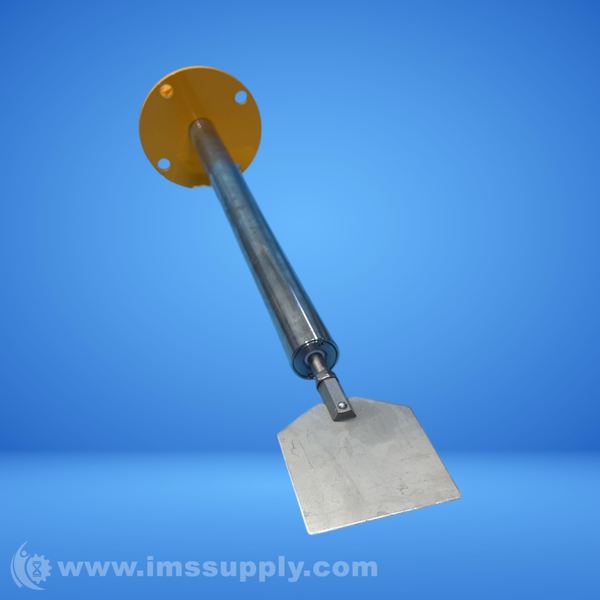

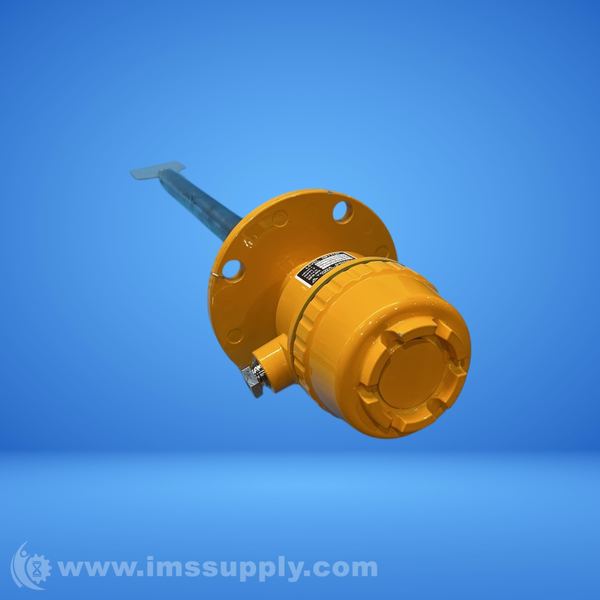

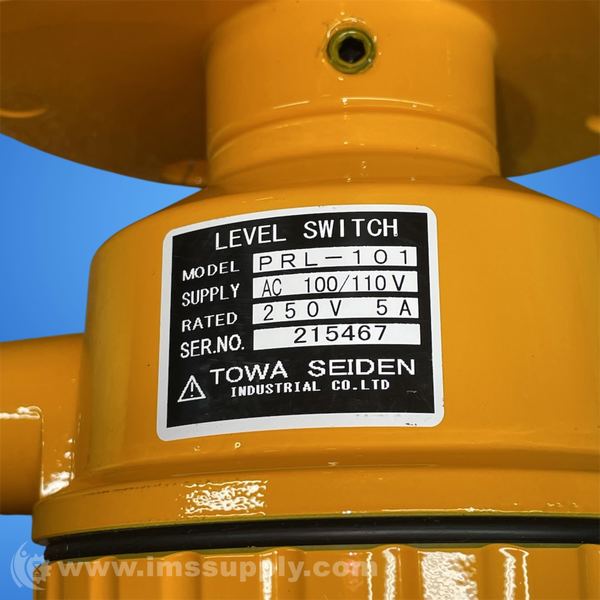

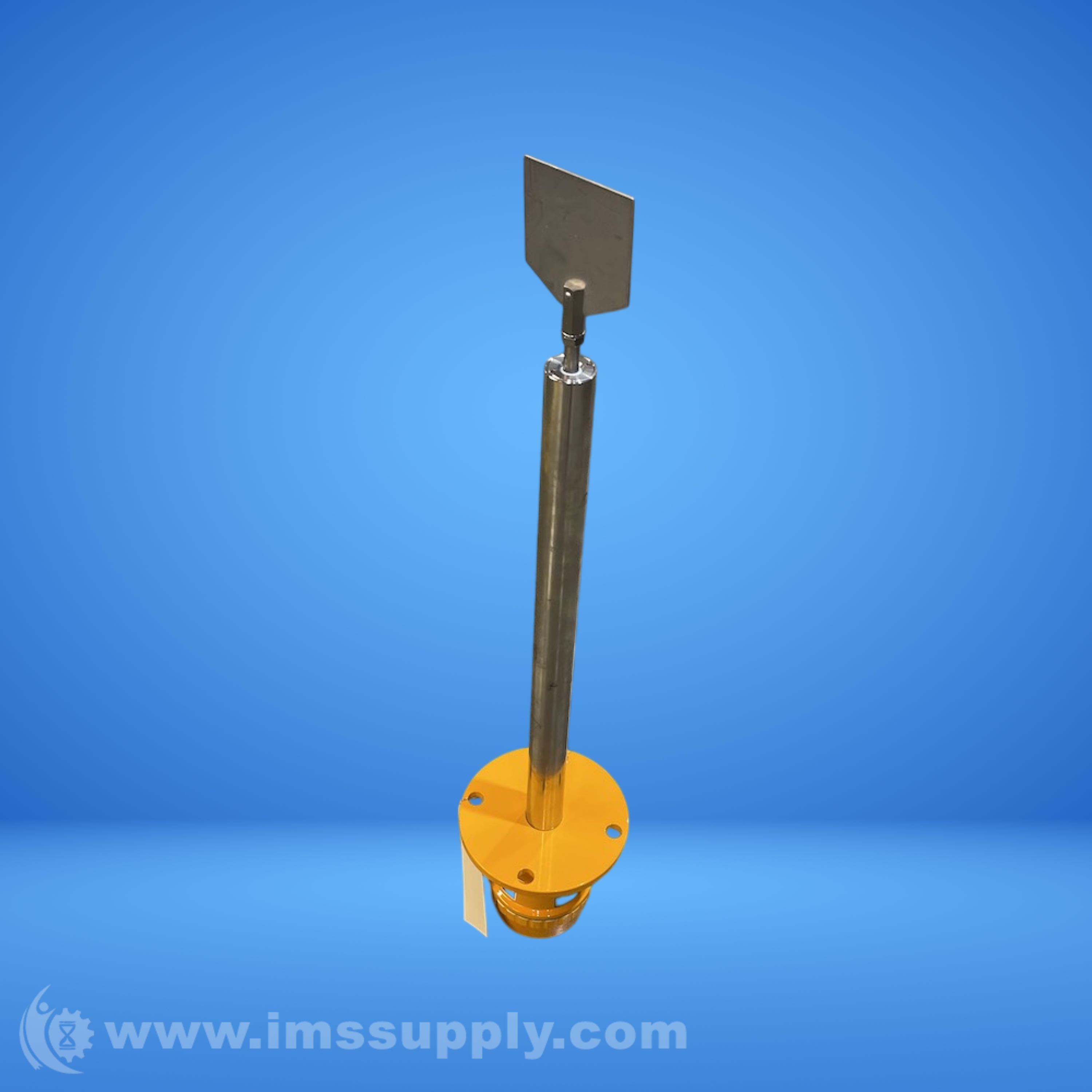

Towa Seiden PRL-101 Level Switch
Rotary Paddle Type Level Switch with Protecting Tube for Longer Shaft
Specifications
- Supply Voltage: AC220/240V 50/60Hz
- Attaching Method: Flange Attachment JIS 5K65A
- Power Consumption: 2.5W
- Contact Output: 1c Contact 250VAC 6A (Resistance Load)
- Detection Torque: Approx. 10 N.cm
- Slip Torque: Approx. 24.5 to 29.4 N.cm
- Rotation Speed: 1R.P.M
- Material: Main Body, Case And Flange - Aluminum Casting : Main Shaft And Blade - SUS 304 : Seal - Nitrile Rubber
- Temperature Ranges: Tank Inside Max 70 C : Tank Outside Max 55 C
- Max. Pressure: Tank Inside 0 ~ 196 kPa
- Mechanical Protection: IP65
- Standard Length: L-580 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
