TOYO SOKKI UNLS-2KN COMPRESSION LOAD CELL
Quick Overview
Manufactured By: TOYO SOKKI CO LTD
Manufacturer Part Number: UNLS-2KN
IMS Product Code: 2120860
Packaging: Sold Individually
Description:

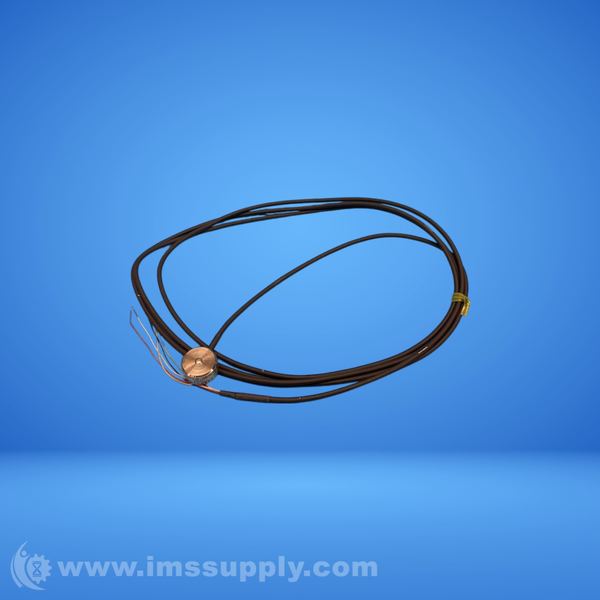

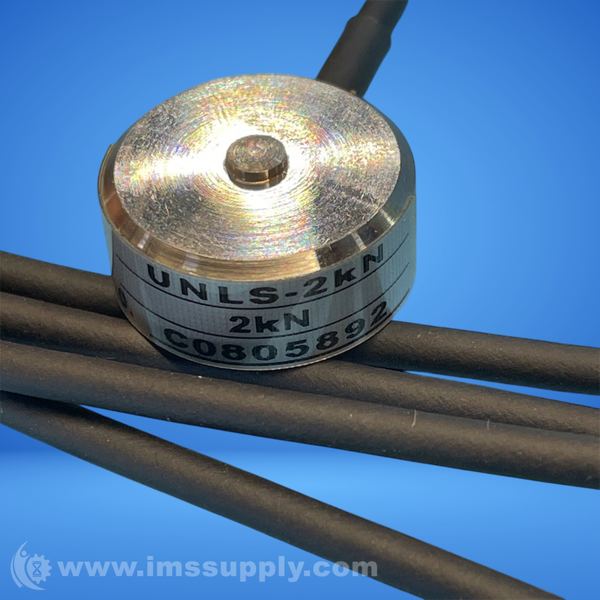

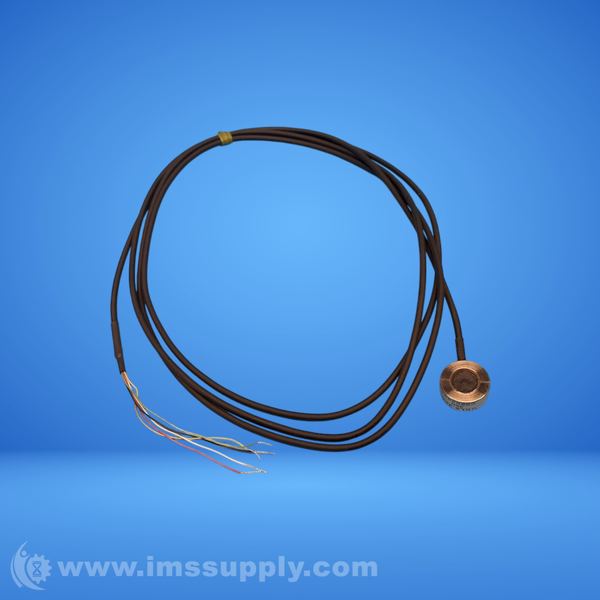

Toyo Sokki UNLS-2KN Compression Load Cell
Compact compression type load cell with 21 mm diameter and 10 mm height.
Specifications
- Rated Capacity: 2k N
- Rated Output: 1±20% mV/V
- Safe Overload: 150 %R.C.
- Zero Balance: ±10 %R.O.
- Non-linearity: 0.5 %R.O.
- Hysteresis: 0.3 %R.O.
- Repeatability: 1.0 %R.O.
- Compensated Temperature Range: 0 to +50 ?
- Safe Temperature Range: 0 to +60 ?
- Temperature Effect on Zero: 0.5 %R.O./10?
- Temperature Effect on Span: 0.5 %R.O./10?
- Input Resistance: Approx.350 O
- Output Resistance: Approx.350 O
- Recommended Excitation Voltage: 2.5 V
- Maximum Excitation Voltage: 5 V
- Insulation Resistance (DC50V): 1000 or more MO
- Cable: f3 4-conductor color shield cable, 2m length, 5-leads
- Cable Color Code: +EXC: Red, +SIG: Green, -EXC: White, -SIG: Black, SHIELD: Yellow
- Load Cell Material: Stainless steel
- Deflection at Rated: 0.025 mm
- Natural Frequency: 98 kHz
- Weight: 20 g
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
