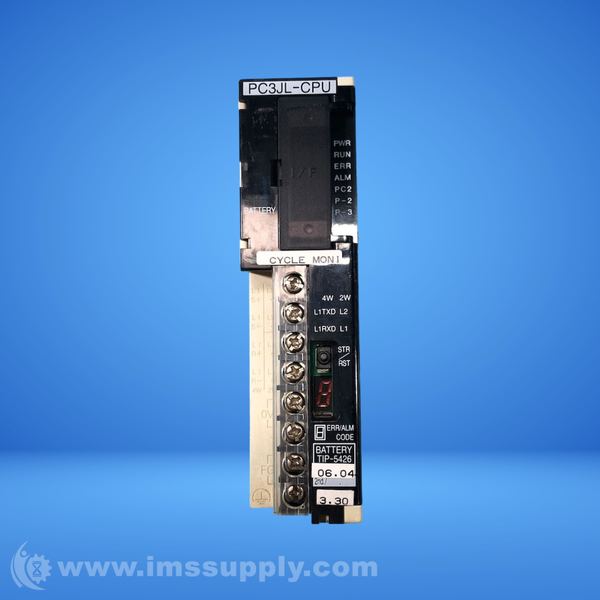

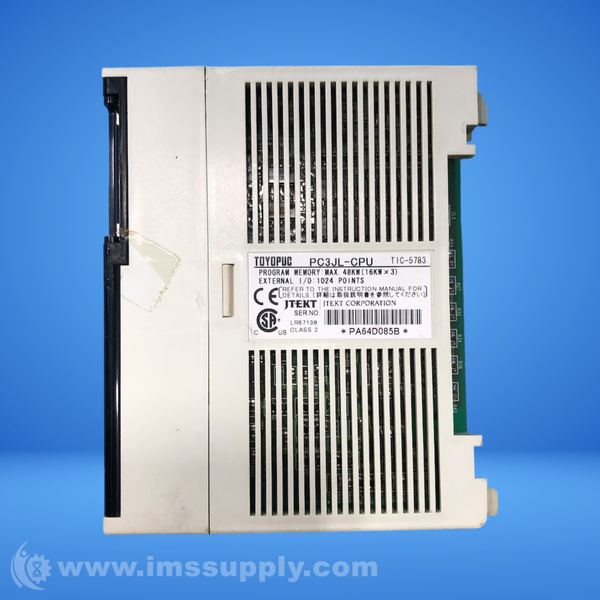

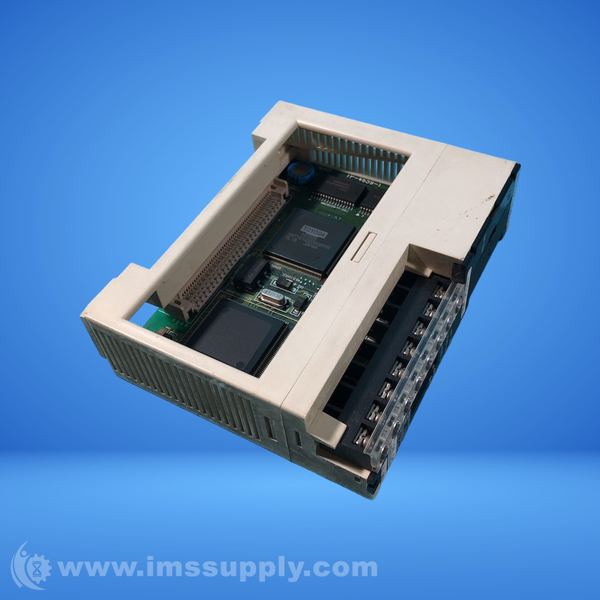

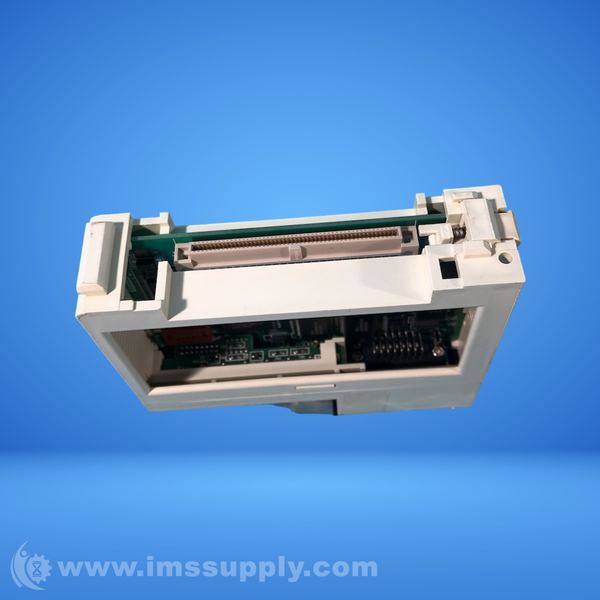

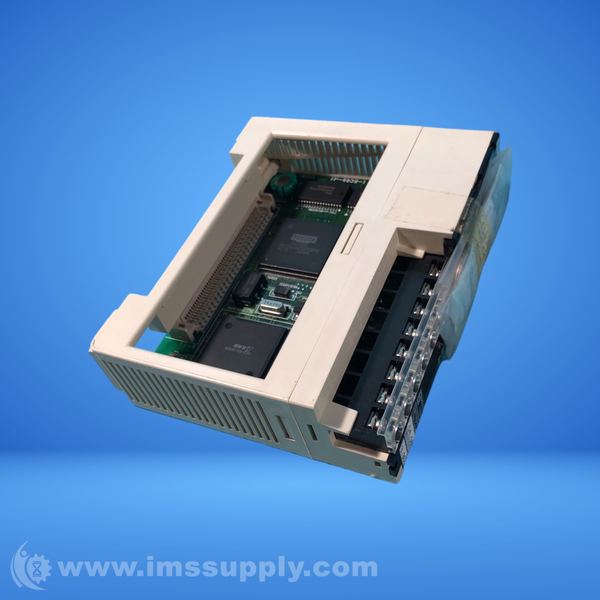

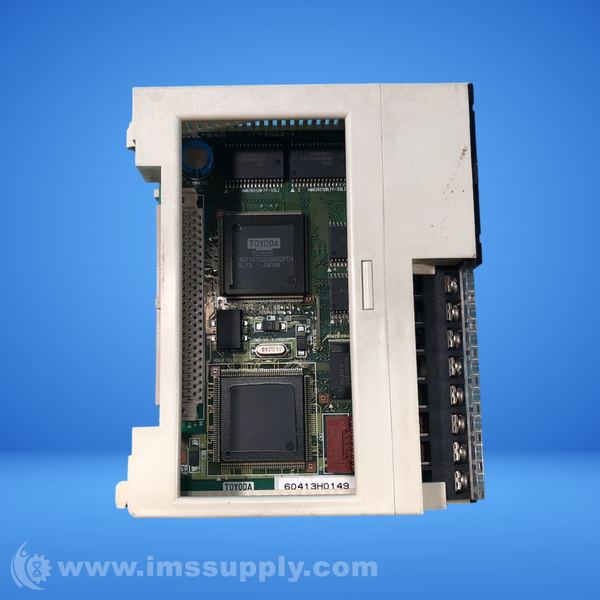

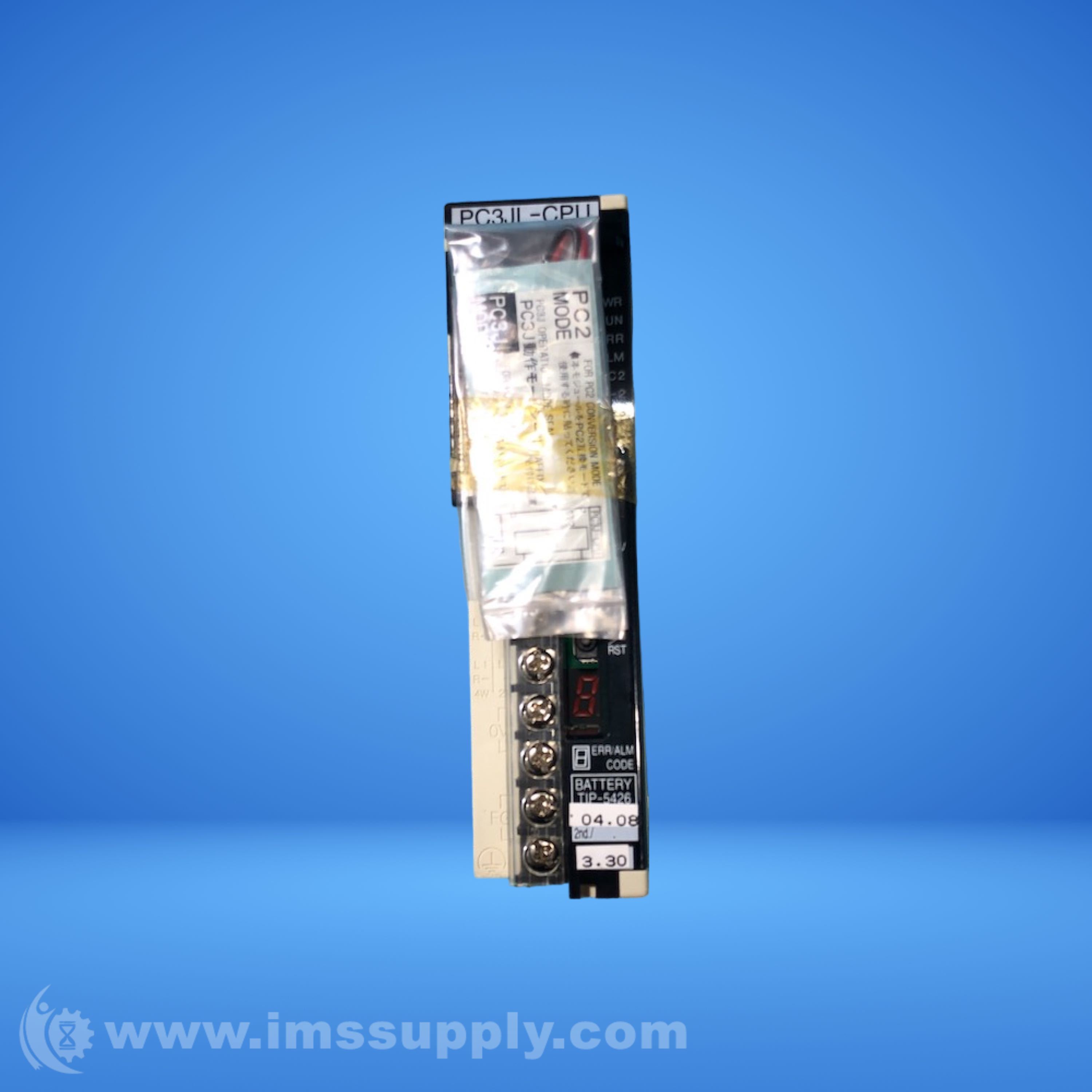

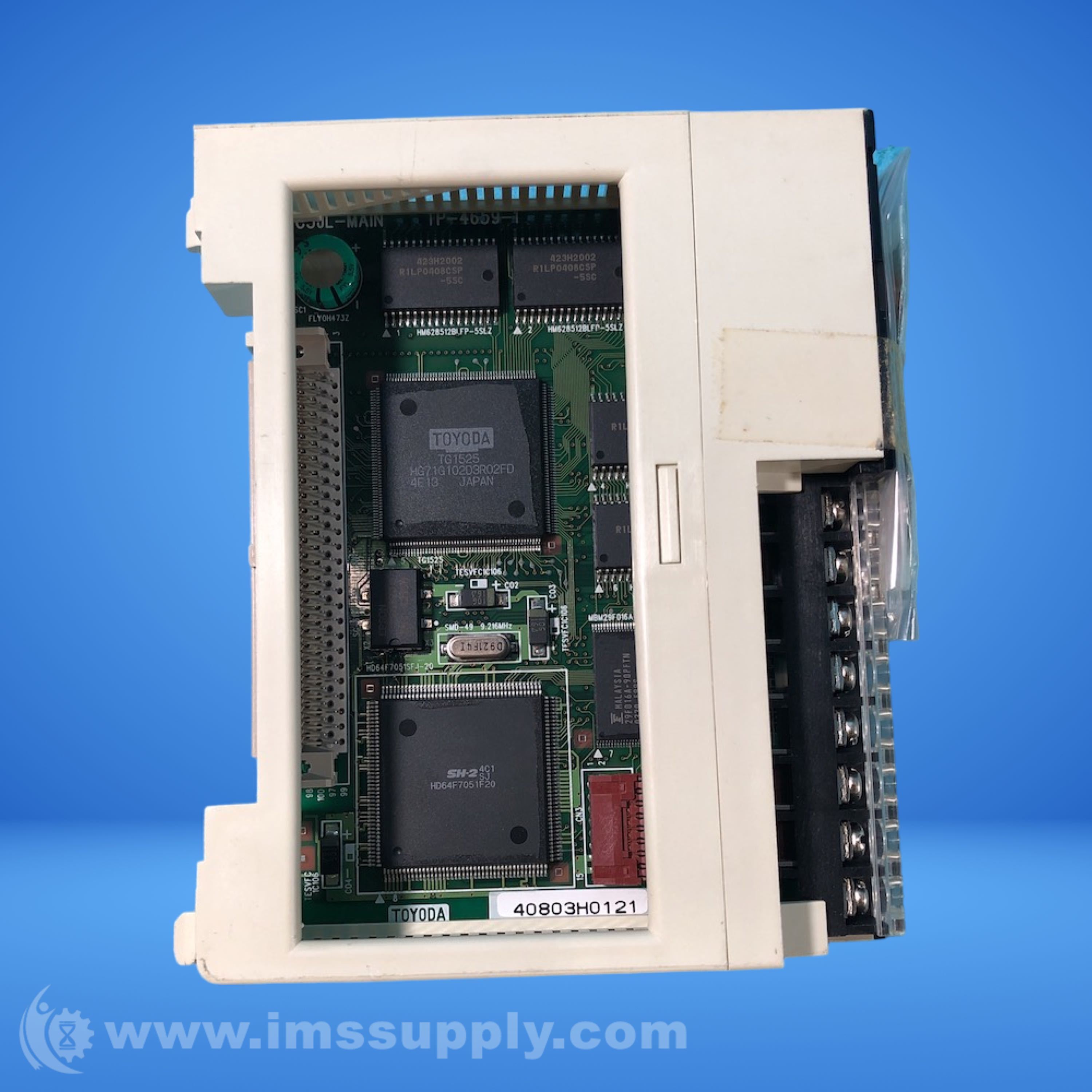

TOYOPUC PC3JL-CPU PROGRAMMABLE CONTROLLER
Quick Overview
Manufactured By: TOYOPUC
Manufacturer Part Number: PC3JL-CPU
IMS Product Code: 2045983
Packaging: Sold Individually
Description:

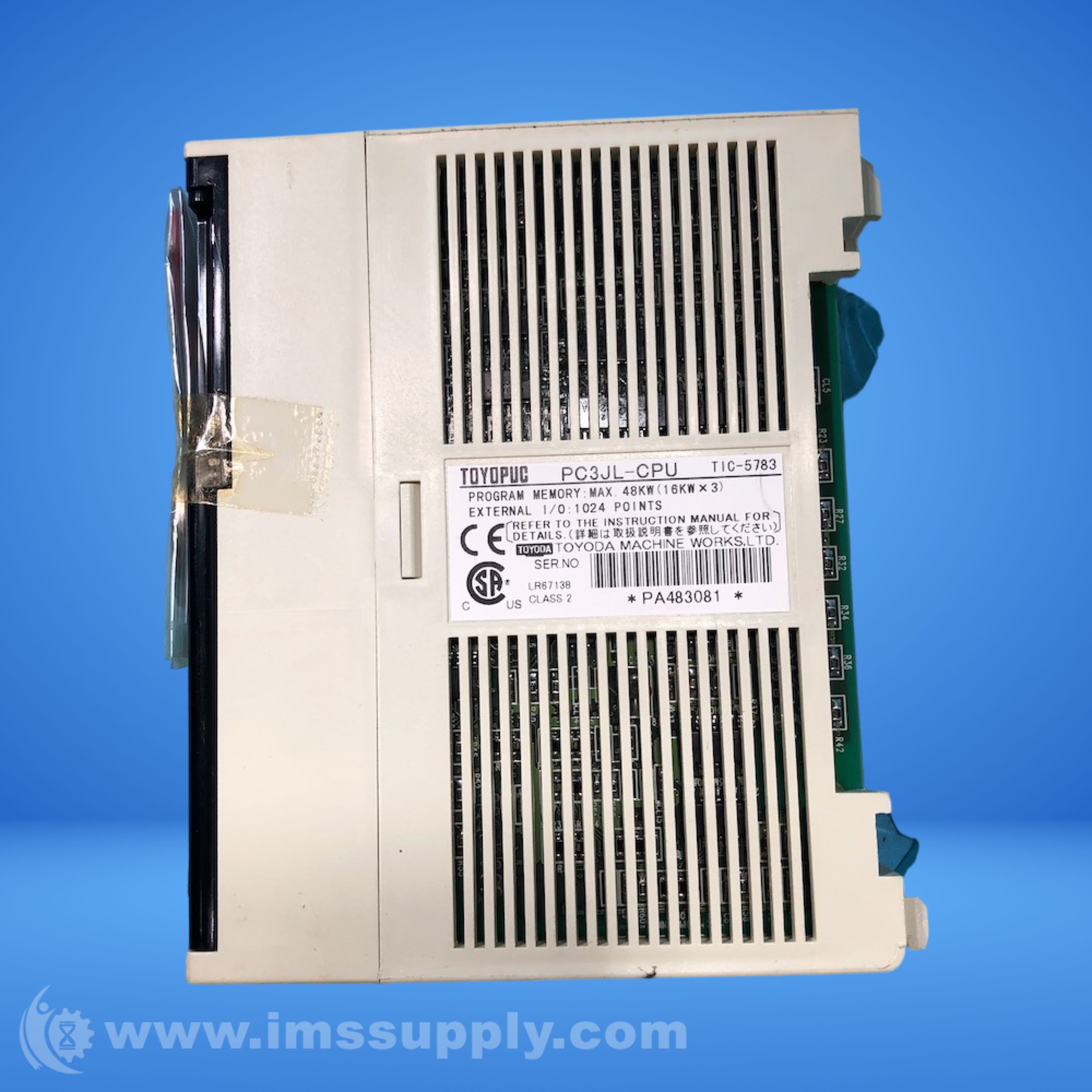

Toyopuc PC3JL-CPU Programmable Controller
A programmable controller with 48KW program memory, 1024 point external I/O, and enhanced library functions.
Specifications
- Power Supply: AC85-264V 47 - 66 Hz (POWER1) or DC 18-32V (POWER2)
- Power Consumption: Less than 38W (80 VA) for POWER1, 40 VA for POWER2
- Ambient Temperature: 0-55 degrees Celsius
- Relative Humidity: 30 - 85% RH (no condensation)
- Vibration Resistance: Conforming to JIS C0911
- Shock Resistance: Conforming to JIS C0912 (147m/s^2, 3 directions)
- Noise Resistance: 1000V noise simulator based on P-P (1 microsecond width)
- Insulation Resistance: AC1500V for 1 minute (AC external terminal-ground), AC1000V for 1 minute (DC external terminal-ground)
- Instantaneous Power Failure Tolerance: 0.5 cycles or less for POWER1, 10ms or less for POWER2
- Consumption Current: 390mA typical
- Dimensions: 35(W) x 130(H) x 110(D) mm
- Mass: 0.22kg
- Program Memory: MAX .48(16KWx3)
- External I/O: 1024 POINTS
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 35 minutes.
New - Missing Box (Special):
Part comes with additional piece attached.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 35 minutes.
New - Missing Box (Special):
Part is missing additional pieces.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 35 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 35 minutes.
