TOYOPUC PC3JT PLC
Quick Overview
Manufactured By: TOYOPUC
Manufacturer Part Number: PC3JT
IMS Product Code: 2164997
Packaging: Sold Individually
Description:

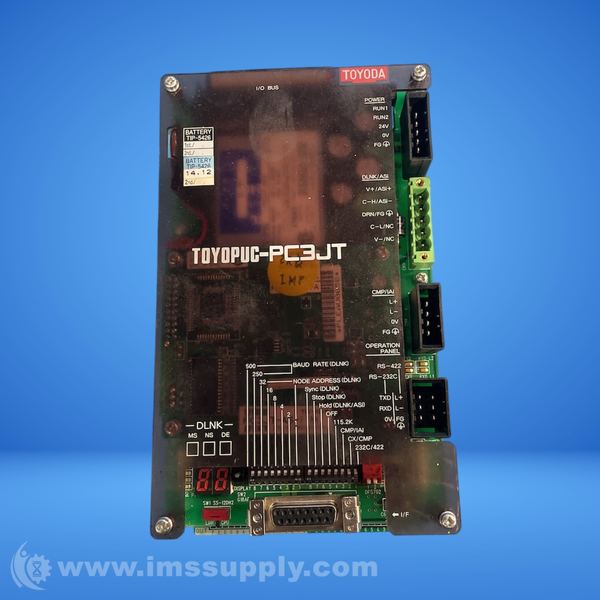

Toyopuc PC3JT PLC
Programmable Logic Controller with stored program method, cyclic operation, and image registration input/output control.
Specifications
- Power source: POWER1: AC85?264V 47?66 Hz, POWER2: DC18?32V, POWER2H:DC18~32V
- Consumption power: POWER1: 38W or less (80VA or less), POWER2: 40VA or less, POWER2H:50VA or less
- Ambient temperature: 0?55 degrees C
- Relative humidity: 30?85% RH (no condensation)
- Vibration resistance: Frequency: 10?57Hz, Amplitude: 0.15mm, Sweep cycles: 10 cycles
- Shock resistance: 147 m/s2 3-directions each 3 shocks
- Dielectric strength: AC1500V 1 minute (between AC external terminal and earth)
- Insulation resistance: DC500V 10MO or more (between AC external terminal and earth)
- Programming method: Stored program method
- Program capacity: 16K words � 3 + Standard library 32K words + User library 32K words
- No. of external I/O: 1024 points
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
Ships today if ordered in the next 1 hours and 35 minutes.
