TOYOPUC TDC-6344 CPU SECTION
Quick Overview
Manufactured By: TOYOPUC
Manufacturer Part Number: TDC-6344
IMS Product Code: 2165128
Packaging: Sold Individually
Description:

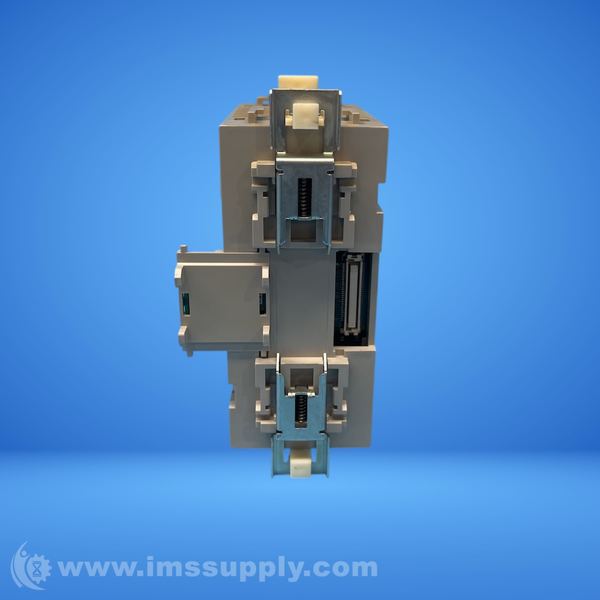

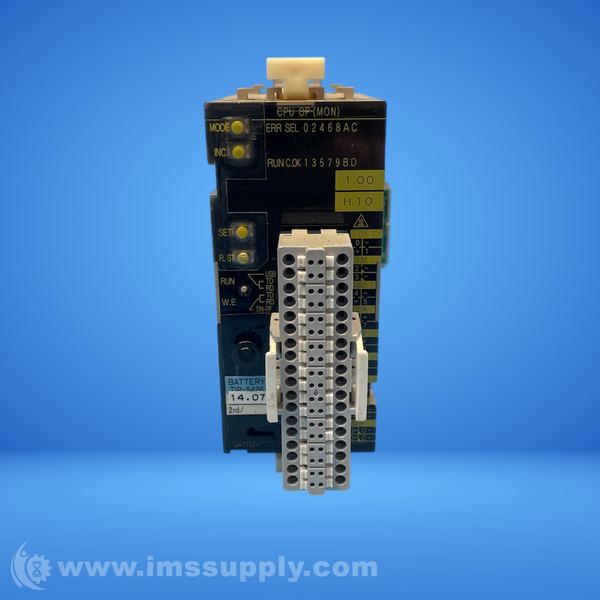

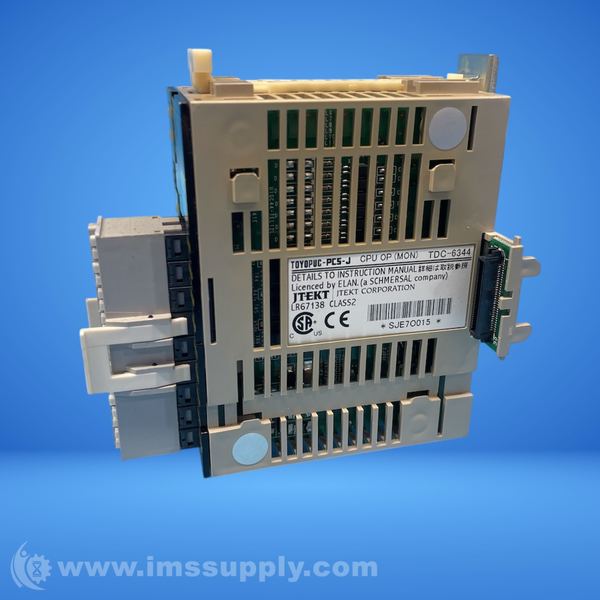

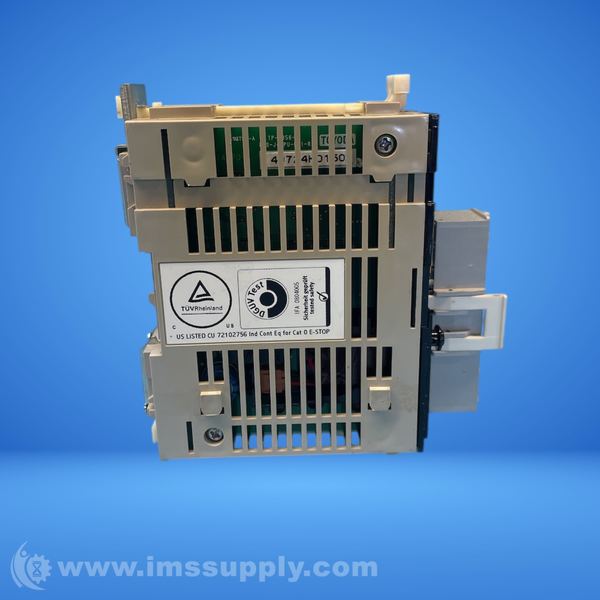

Toyopuc TDC-6344 CPU Section
CPU section with I/O built-in
Specifications
- Program method: Stored program method
- Cyclic operation method: Cyclic operation method
- Input/output control method: Image registration method
- Process speed: 15ms/15 ms/scan
- Program capacity: Source program size: max 16 kW (Executed program size: 64 KB)
- Hold memory: Program: Flash ROM, Safety data: No memory held
- Battery: Rechargeable (Lithium secondary battery: 5 years life)
- Maximum connection slot number: 14 slots (including CPU-OP (MON))
- No. of external I/O: 256point
- No. of internal outputs: 2048 points
- Display unit: 7-seg LED display
- Input/output format: Input: Photo coupler, Output: FET
- I/O points: Input: 2 points (+ common), 6point(-common), Output: 6point(-common)
- Voltage, current: Input: 24VDC 5mA/point, Output: 24VDC 0.5A/point
- Power Voltage: 24 VDC
- Power consumption: 24W
- Ambient temperature: 0~55°C
- Current consumption: 70 mA
- Mass: 260 g
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
