TRITAN UC208-24 INSERT BALL BEARING
Quick Overview
Manufactured By: TRITAN
Manufacturer Part Number: UC208-24
IMS Product Code: 2159381
Packaging: Sold Individually
Description:

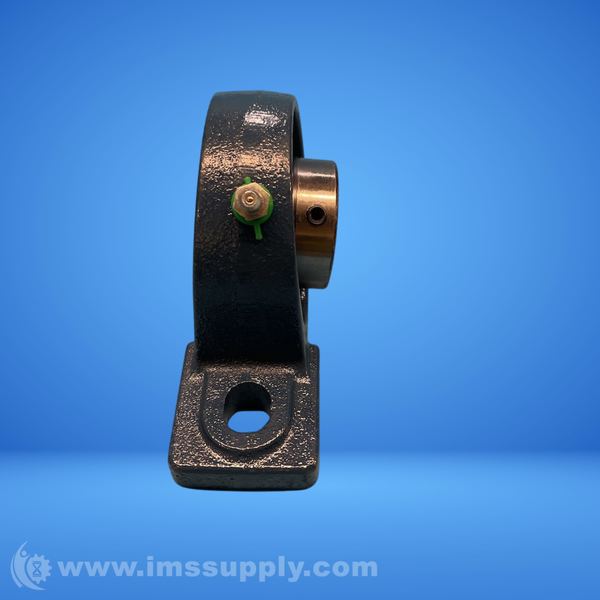

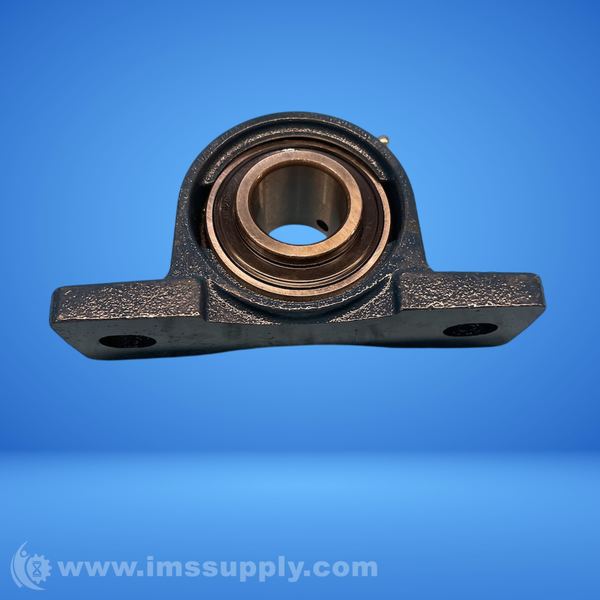

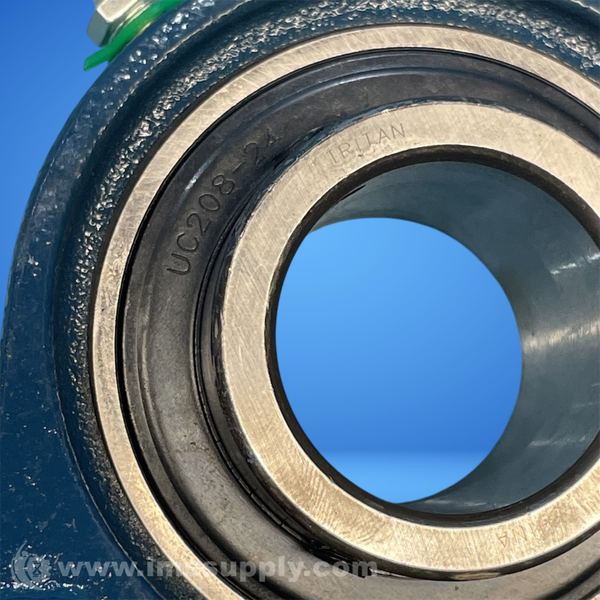

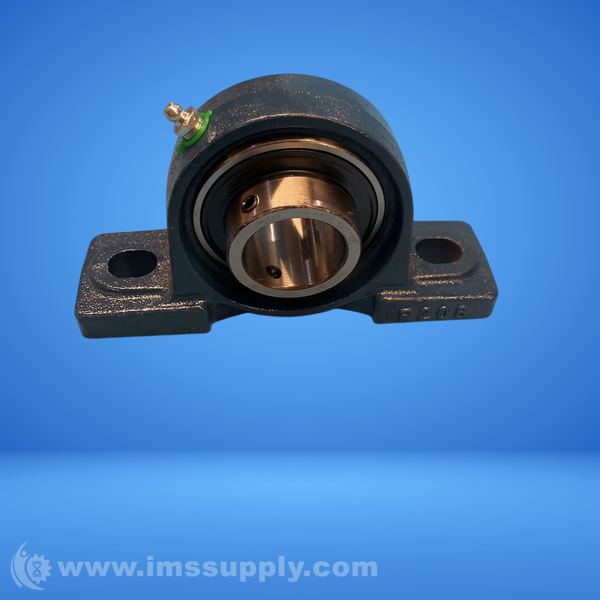

Tritan UC208-24 Insert Ball Bearing
Spherical insert ball bearing with set screw locking, 1.5 inch bore diameter, AISI 52100 chrome steel material, double sealed with rubber closure.
Specifications
- Bore Diameter: 1.5 in
- Outside Diameter: 3.1496 in
- Outer Ring Width: 0.8268 in
- Bearing Material: AISI 52100 Chrome Steel
- Closure Type: Dual Seals (B-Type)
- Seal Material: NBR/Rubber
- Set Screw Size: 5/16-24
- Dynamic Radial Load Capacity: 6631.86 lbf
- Static Radial Load Capacity: 4069.04 lbf
- Maximum Temperature: 250 degrees F
- Minimum Temperature: -40 degrees F
- Finish: Black Oxide
- Series: UC200
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
