TSUBAKI RS80 ROLLER CHAIN
Quick Overview
Manufactured By: TSUBAKI CHAIN CO.
Manufacturer Part Number: RS80
IMS Product Code: 2144691
Variation: Unspecified
Unspecified
No. of Links: 1
No. of Links: 111
No. of Links: 120
No. of Links: 22
No. of Links: 24
No. of Links: 50
No. of Links: 56
Packaging: No. of Links 44
Description:

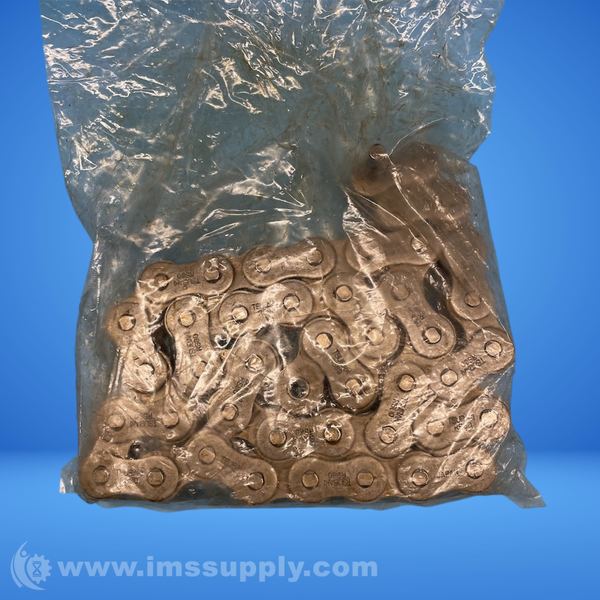

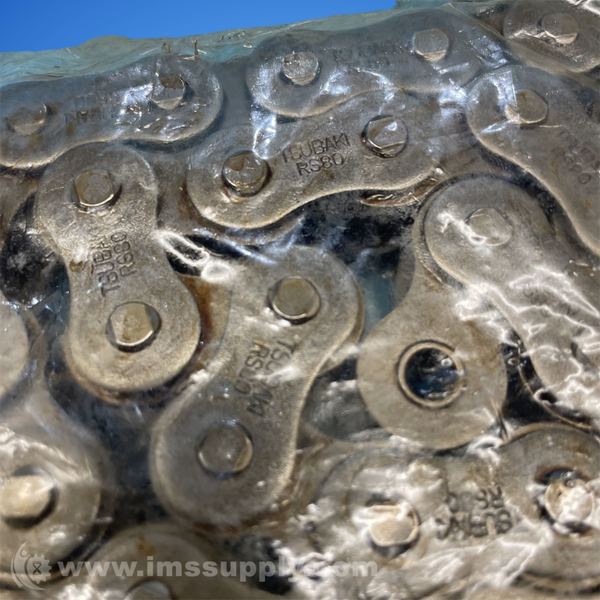

Tsubaki RS80 Roller Chain
Tsubaki RS single pitch roller chains
Specifications
- ANSI No.: 80
- P - Pitch: 1.000 in
- R - Roller Diameter: 0.625 in
- W - Width Between Roller Link Plates: 0.625 in
- Number of Strands: 1
- C - Transverse Pitch: 1.153 in
- Standard Type of Pin: Riveted
- Min. Ultimate Strength ANSI Standard: 12500 lb
- Average Tensile Strength: 17640 lb
- Maximum Allowable Load: 3300 lb
- D - Pin Diameter: 0.312 in
- L1+L2: 1.398 in
- L1: 0.640 in
- L2: 0.758 in
- L: 1.417 in
- T: 0.125 in
- H: 0.949 in
- h: 0.819 in
- Material: Carbon Steel
- Chain Construction: Riveted
- Measurement Standard: Imperial
- Series: Standard
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 55 minutes.
