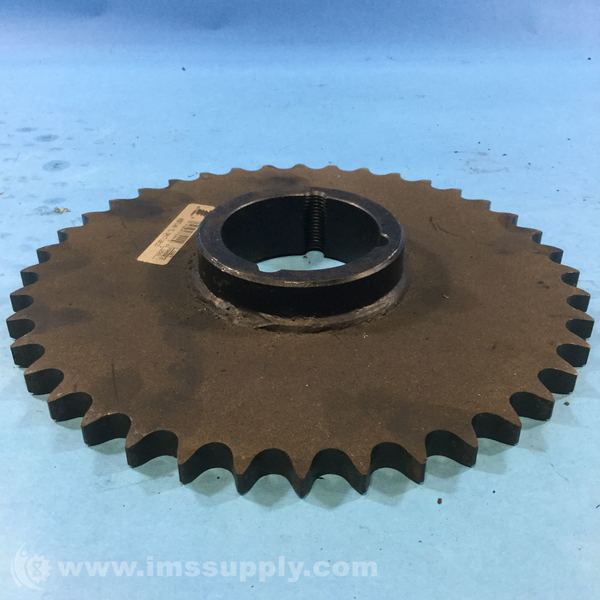

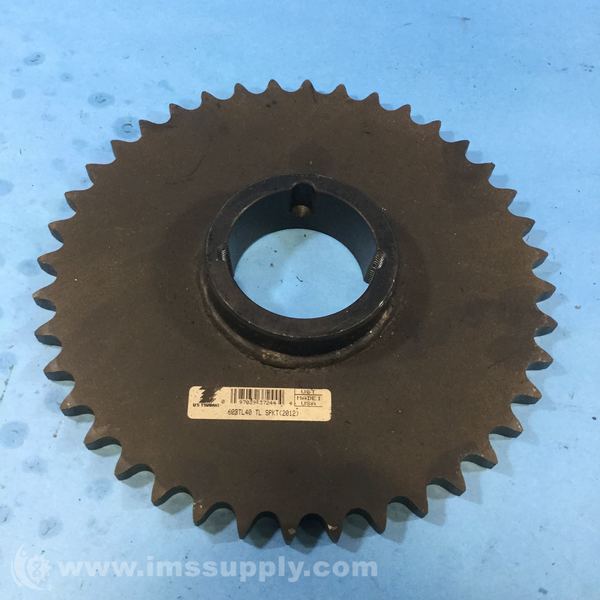

TSUBAKI 60BTL40 SPROCKET, 60 CHAIN SIZE, 40 TEETH
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: 60BTL40
IMS Product Code: 1792619
Packaging: Sold Individually
Description:
Tsubaki 60BTL40 Sprocket, 60 Chain Size, 40 Teeth
Tsubaki 60BTL40 Taper Lock Type B Single Pitch Roller Chain Sprocket, 1-5/8 in Dia Bore, 9.98 in OD, #60 Chain, 40 Teeth, 3/4 in Pitch, Carbon Steel
Specifications
- Bushing Type: Taper Lock Bushing
- Bushing Size: 2012
- Number Of Teeth: 40
- Hub Type: B
- Chain Number & Pitch: 60 / 3/4 in
- Bore Diameter: 1-5/8"
- Bushing Series: 2012 Taper Lock
- For Chain Pitch: 3/4"
- For Chain Size: 60
- Hub Diameter: 3.563"
- Length Through Bore: 1-1/4"
- Material: Carbon Steel
- Outside Diameter: 9.98"
- Pitch Diameter: 9.559"
- Pitch Type: Standard
- Sprocket Classification: Single Strand
- Strands: 1
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 12 minutes.
