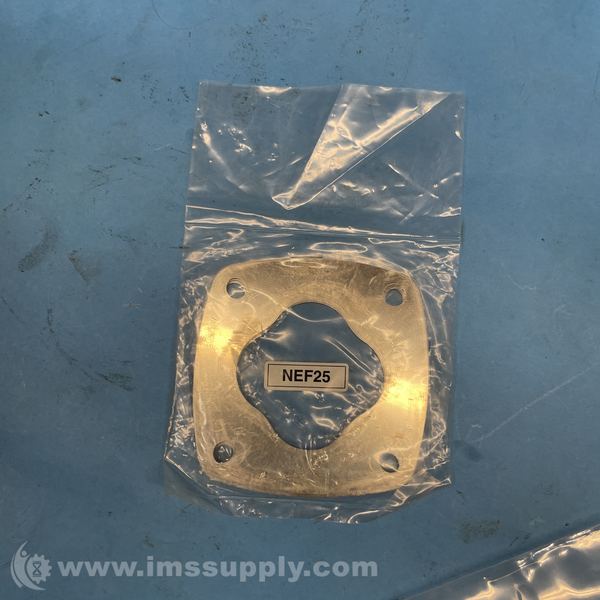

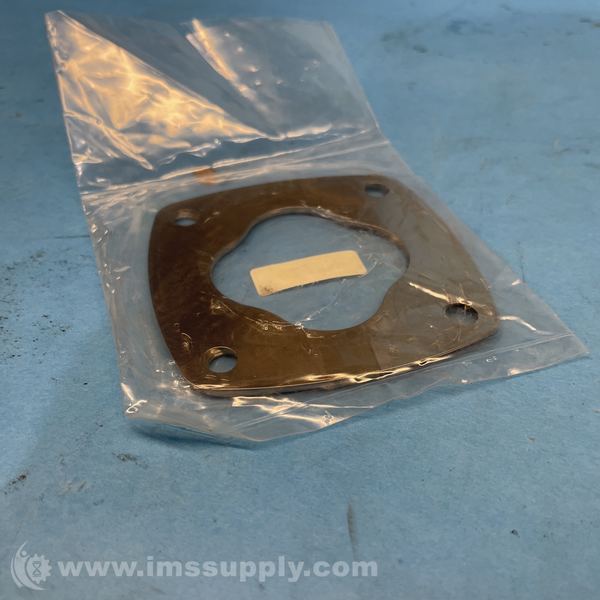

TSUBAKI NEF25 COUPLING
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: NEF25
IMS Product Code: 2137917
Packaging: Pack of 12
Pack of 4
Pack of 12
Description:
Tsubaki NEF25 Coupling
ECHT-FLEX Coupling NEF Series, Model No. :NEF25W-N25JXN30J
Specifications
- Allowable Torque: 245 N·m
- Max. Rotation Speed: 15000 r/min
- Plain Bore: 15
- Standard Stock Bore Dia. Range: 17~42
- Keyway Maximum Shaft Diameter: 42
- Torsional Rigidity: 12.7·10^4 N·m/rad
- Axial Spring Constant: 78.4 N/mm
- PCD: 82
- A1: 120
- A2: 136.5
- B: 33.5
- BL: 50
- E: 11.2
- F: 9
- H: 61
- HL: 78
- J: 53
- K: 104
- Dd: 45
- N: 47
- No: 58
- Ni: 47
- T: 21
- T': 4.5
- Allowable Misalignment Angular Misalignment: 2 deg
- Allowable Misalignment Parallel Misalignment: 0.7 mm
- Allowable Misalignment Axial Displacement: ±2.8 mm
- Mass: 3.0 kg
- Moment of Inertia: 41×10^-4 kg·m^2
- GD2: 166 kgf·cm^2
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships on Monday, December 15, 2025
