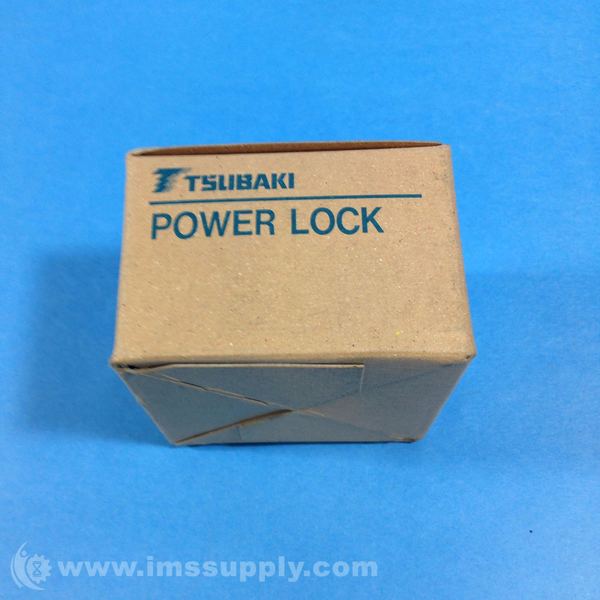

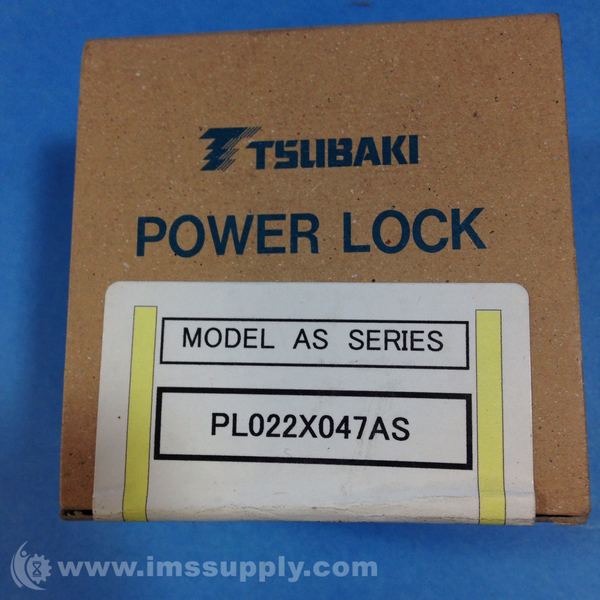

TSUBAKI PL022X047AS POWER LOCK
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: PL022X047AS
IMS Product Code: 1761512
Packaging: Sold Individually
Description:
Tsubaki PL022X047AS Power Lock
A keyless bushing that connects shaft and boss without using a key.
Specifications
- Applicable Shaft Tolerance: h8
- Applicable Hub Hole Tolerance: H8
- Applicable Surface Roughness: Ra1.6
- Centering Function: NO
- Lubrication During Assembly: Required
- Hub Movement During Assembly: NO
- Inner Diameter (mm): 22
- Outer Diameter (mm): 47
- Length (mm): 20
- Maximum Allowable Torque (N*m): 333
- Across Flat Dimension (mm): 20
- Operating Temperature Range: -30 degrees C to +200 degrees C
- Transmitted Torque (N*m): 333
- Thrust Load (kN): 30.4
- Mass: 0.19 kg
