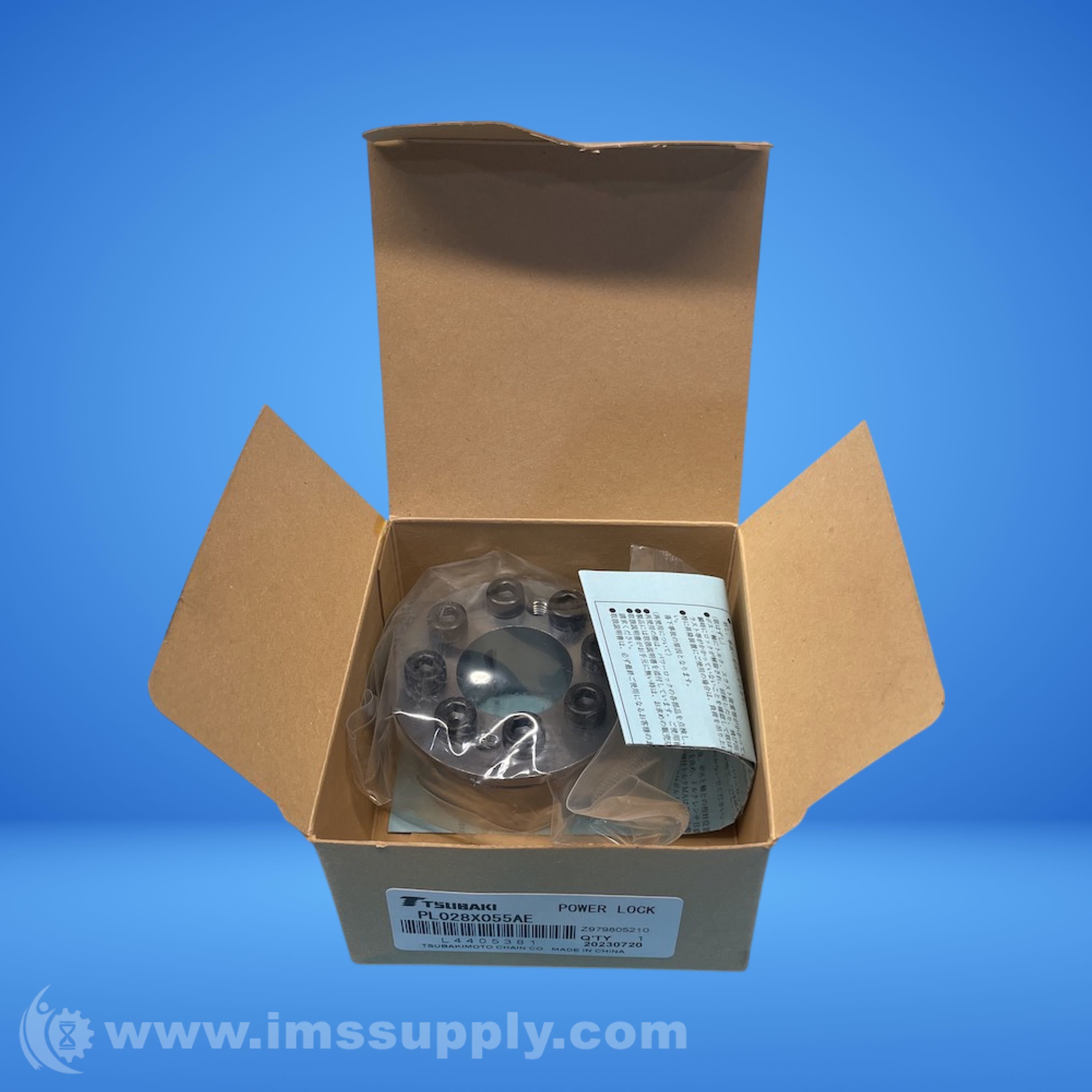

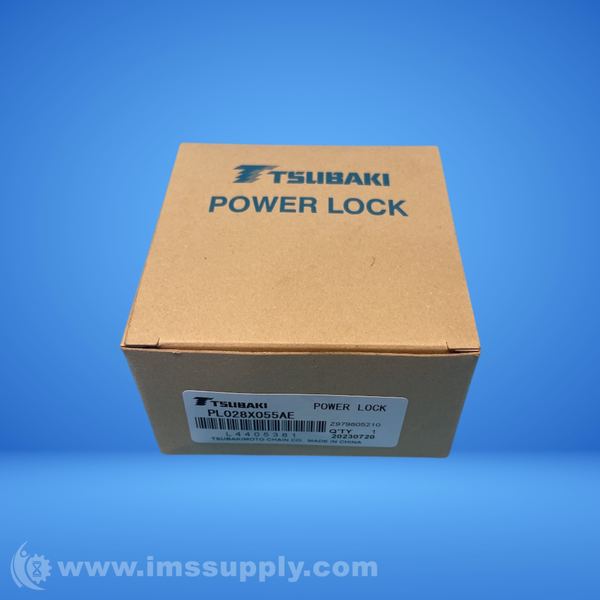

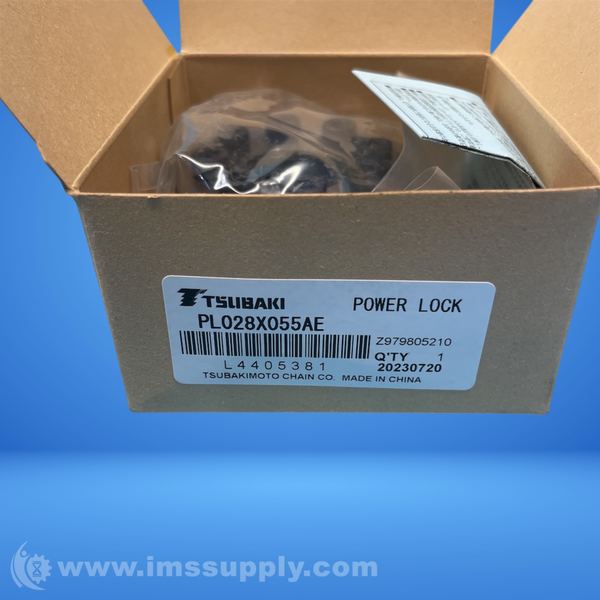

TSUBAKI PL028X055AE POWER LOCK
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: PL028X055AE
IMS Product Code: 2143751
Packaging: Sold Individually
Description:
Tsubaki PL028X055AE Power Lock
Tsubaki Power Lock coupling for precise shaft-hub connection
Specifications
- Applicable shaft tolerance: h8
- Applicable hub hole tolerance: H8
- Applicable surface roughness: Ra1.6
- Centering function: Yes
- Lubrication during assembly: Required
- Hub movement during assembly: NO
- d: 28
- D: 55
- D - Hub Counter I.D.: 2.165 in
- D1: 2.441 in
- L: 1.126 in
- Lt: 1.362 in
- P - Contact Pressure - Shaft: 39016 psi
- P' - Contact Pressure - Hub Bore: 15374 psi
- Quantity: 8
- Size: M6x18
- T1: 0.130 in
- T2: 0.118 in
- Tightening Torque: 12.500 ft�lb
- Transmissible Thrust: 8426 lb
- Transmissible Torque: 383 ft�lb
- Weight: 0.770 lb
- d - Shaft O.D.: 1.102 in
- l: 0.748 in
- t1 - Shaft Dia. Tolerance: -0.0013 in
- t2 - Hub Counter ID Tolerance: +0.0015 in
