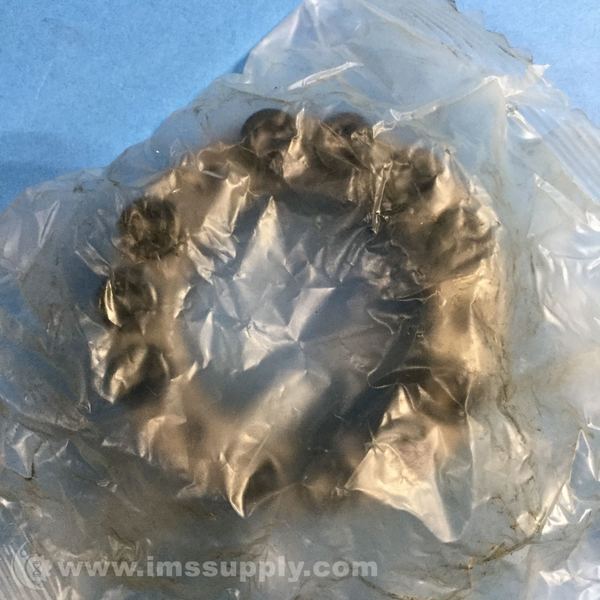

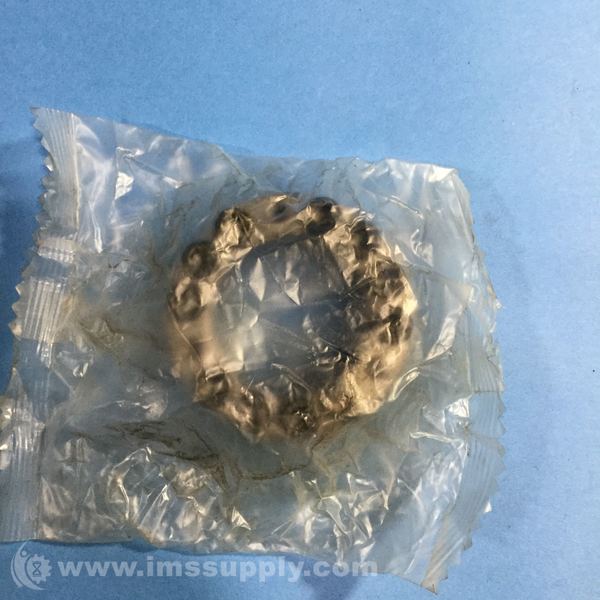

TSUBAKI PL040X065 KEYLESS LOCKING DEVICE
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: PL040X065
IMS Product Code: 1512486
Packaging: Sold Individually
Description:
Tsubaki PL040X065 Keyless Locking Device
Tsubaki Power-Lock Keyless Locking Device, Multi-Purpose, Series: AS Series, 40 mm Bore Dia, 65 mm Outside Dia, 941 N-m Transmissible Torque, 47 kN Transmissible Thrust, 174 MPa Shaft Contact, 107 MPa Hub Contact, M6 x 18 Screw, 26 mm Overall Length, -30 to 200 deg C, Carbon Steel, Uncoated
Specifications
- Bore Diameter: 40
- Material: Carbon Steel
- Outside Diameter: 65
- Overall Length: 26
- Screw Size: M6 x 18
- Series: AS Series
- Shaft Contact Pressure: 174
- Temperature Rating: -30 to 200
- Transmissible Thrust: 47
- Transmissible Torque: 941
- Type: Multi-Purpose
