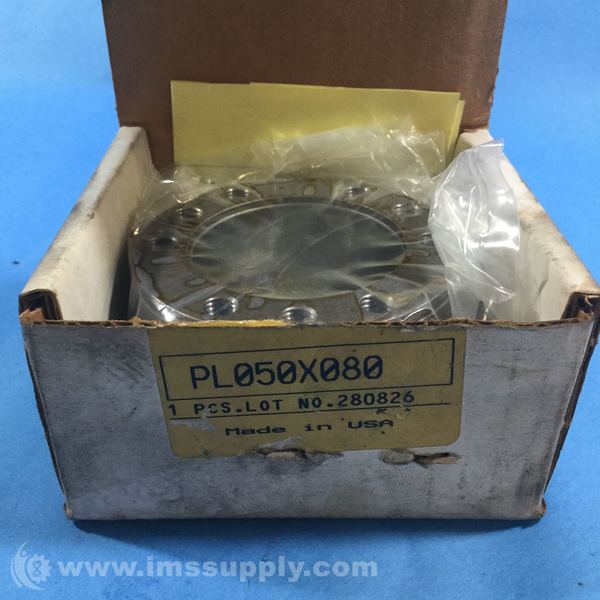

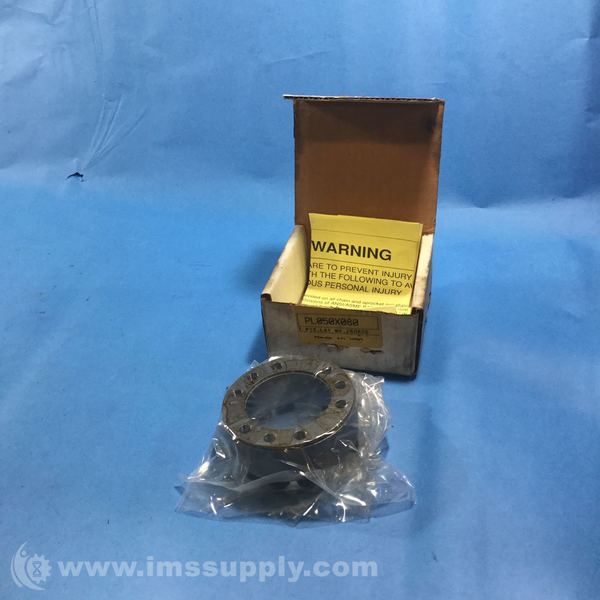

TSUBAKI PL050X080 KEYLESS LOCKING DEVICE
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: PL050X080
IMS Product Code: 1512498
Packaging: Sold Individually
Description:
Tsubaki PL050X080 Keyless Locking Device
Multi-Purpose, AS Series, 50 mm Bore Diameter, 80 mm Outside Diameter, 32 mm Overall Length, Carbon Steel, Uncoated
Specifications
- d - Shaft O.D.: 1.969 in
- t1 - Shaft Dia. Tolerance: -0.0015 in +0
- D - Hub Counter I.D.: 3.150 in
- t2 - Hub Counter ID Tolerance: +0.0018 in -0
- L: 0.945 in
- l: 0.827 in
- Lt: 1.260 in
- Transmissible Torque: 1306 ft·lb
- Transmissible Thrust: 15840 lb
- P - Contact Pressure - Shaft: 26107 psi
- P' - Contact Pressure - Hub Bore: 16390 psi
- Weight: 1.200 lb
- Type: Multi-Purpose
- Series: AS Series
- Bore Diameter: 50 mm
- Outside Diameter: 80 mm
- Screw Size: M8 x 22
- Temperature Rating: -30 to 200 deg C
- Material: Carbon Steel
- Finish: Uncoated
