TSUBAKI PL060X082KE KEYLESS BUSHING
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: PL060X082KE
IMS Product Code: 2171853
Packaging: Sold Individually
Description:

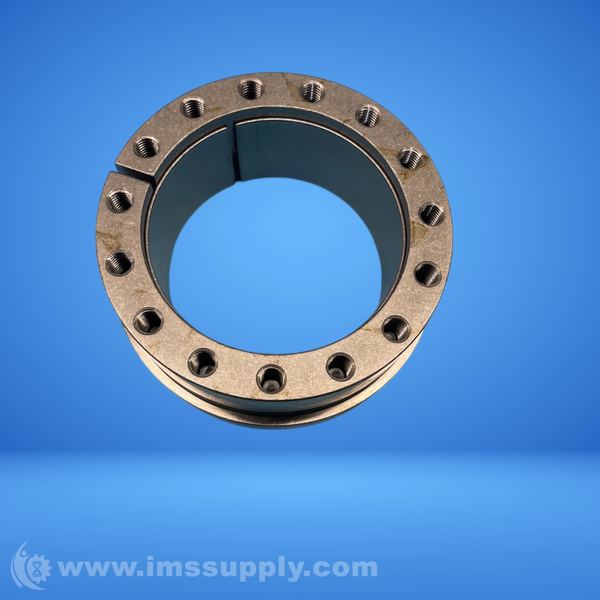

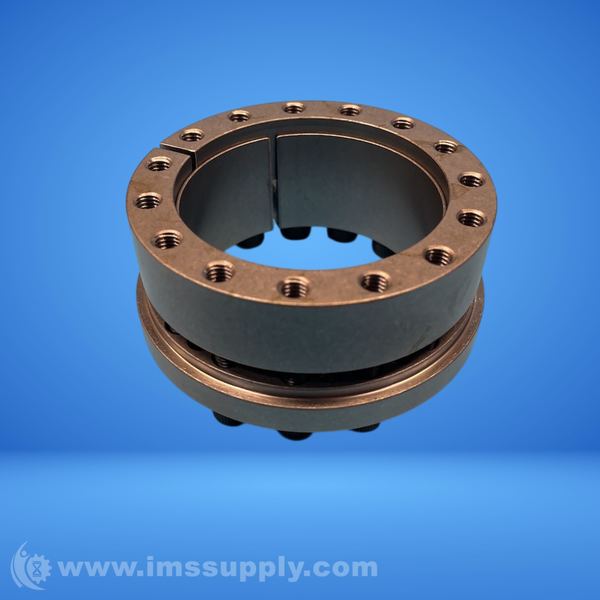

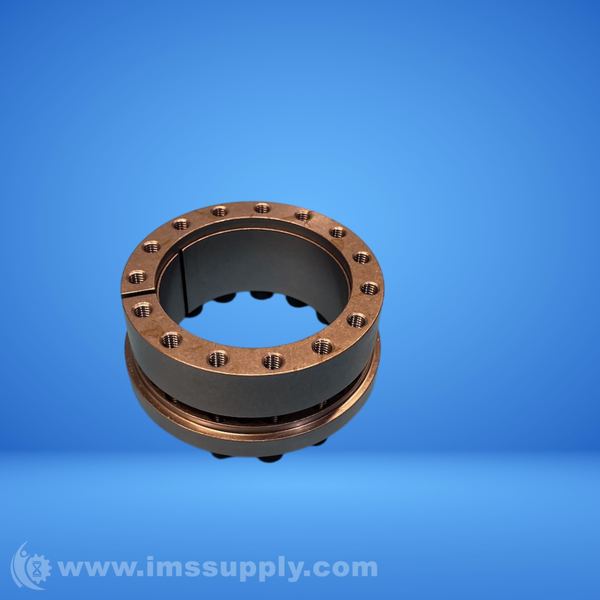

Tsubaki PL060X082KE Keyless Bushing
POWER-LOCK KE Self-Centering Ideal for A-type sprockets and narrow gears
Specifications
- Shaft O.D.: 2.362 in
- Shaft Dia. Tolerance: -0.0018 in +0
- Hub Counter I.D.: 3.228 in
- Hub Counter ID Tolerance: +0.0021 in -0
- O.D. of KE: 3.425 in
- Lt: 1.594 in
- L: 1.358 in
- L2: 1.024 in
- l: 0.748 in
- Transmissible Torque: 1608 ft�lb
- Transmissible Thrust: 15421 lb
- Shaft Contact Pressure: 27268 psi
- Hub Bore Contact Pressure: 19871 psi
- Qty. Locking Bolts: 15
- Size Locking Bolts: M6 x 25
- Tightening Torque: 12.500 ft�lb
- Weight: 1.300 lb
- Flange Type: Flanged
- Outside Diameter: 82 mm
- Bore Diameter: 60 mm
- Series: KE

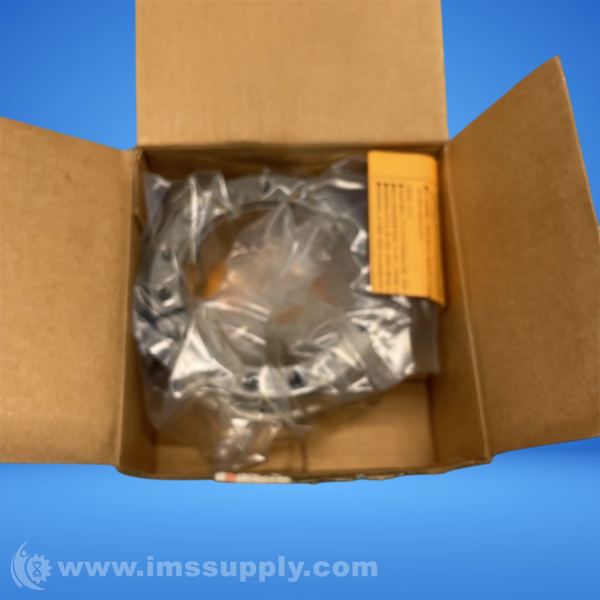

New - Open Box:
