TSUBAKI PL075X115 KEYLESS LOCKING DEVICE
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: PL075X115
IMS Product Code: 1512512
Packaging: Sold Individually
Description:

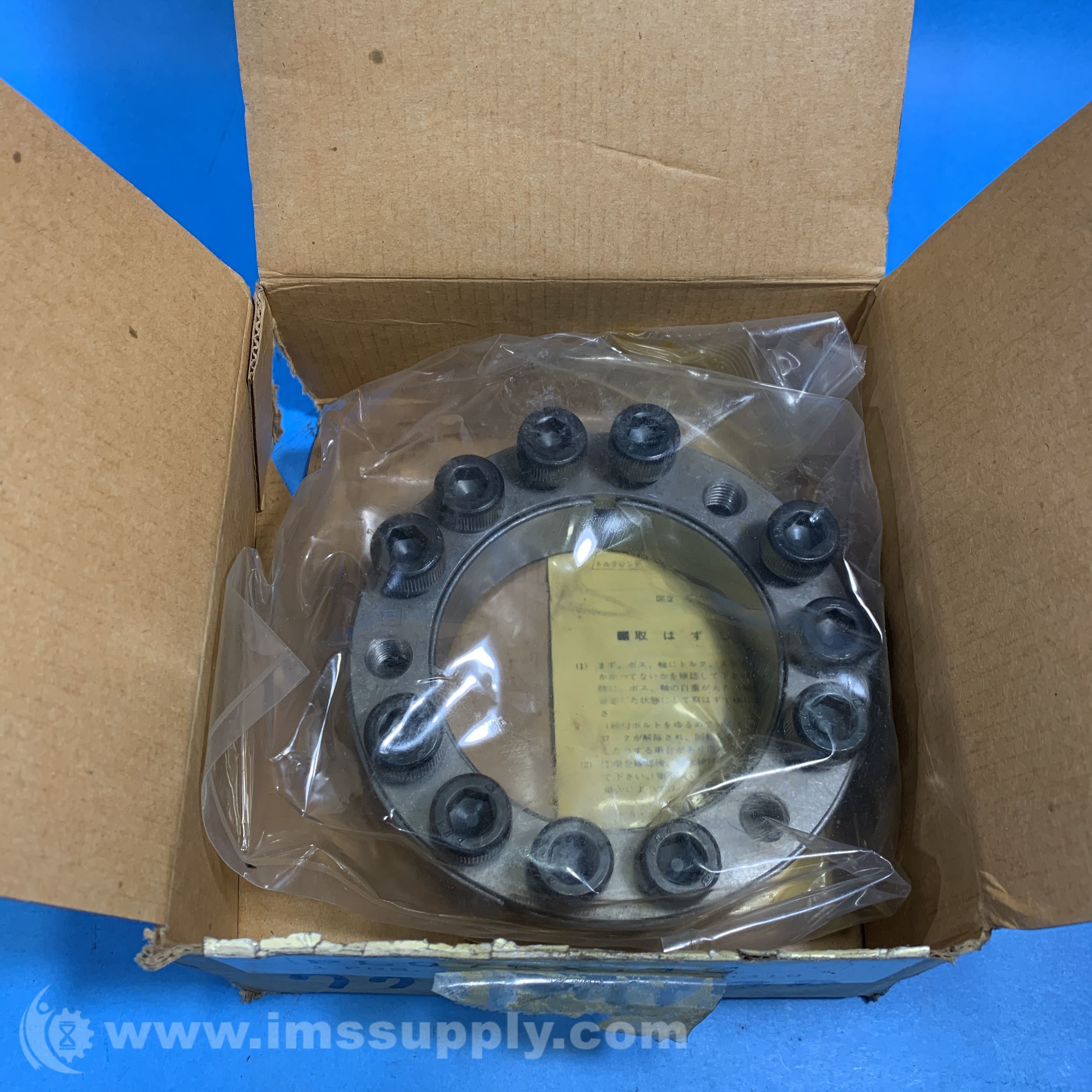

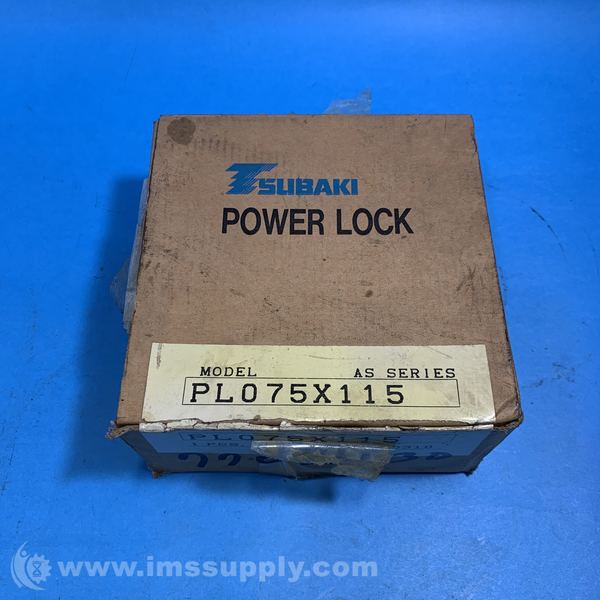

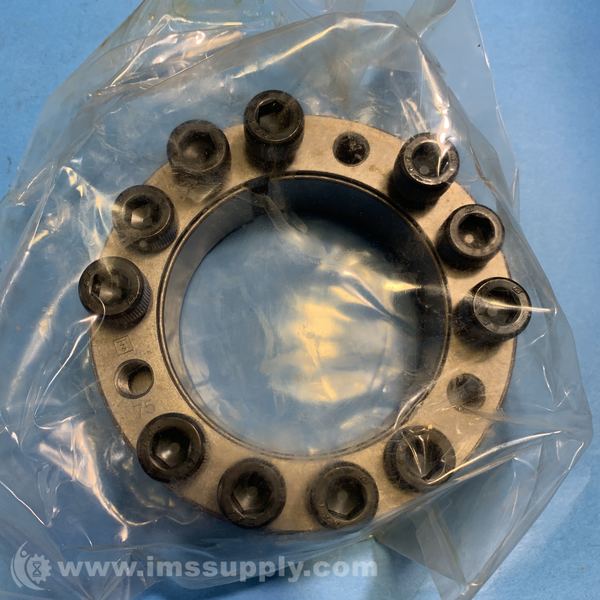

Tsubaki PL075X115 Keyless Locking Device
Multi-purpose keyless locking device, AS Series, 75 mm bore diameter, 115 mm outside diameter, carbon steel material, uncoated finish.
Specifications
- Bore Diameter: 75 mm
- Outside Diameter: 115 mm
- Transmissible Torque: 5190 N-m
- Transmissible Thrust: 138 kN
- Shaft Contact Pressure: 196 MPa
- Hub Contact Pressure: 127 MPa
- Screw Size: M10 x 25
- Overall Length: 38 mm
- Temperature Rating: -30 to 200 deg C
- Material: Carbon Steel
- Finish: Uncoated
- Type: Multi-Purpose
- Series: AS Series
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 27 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 27 minutes.
