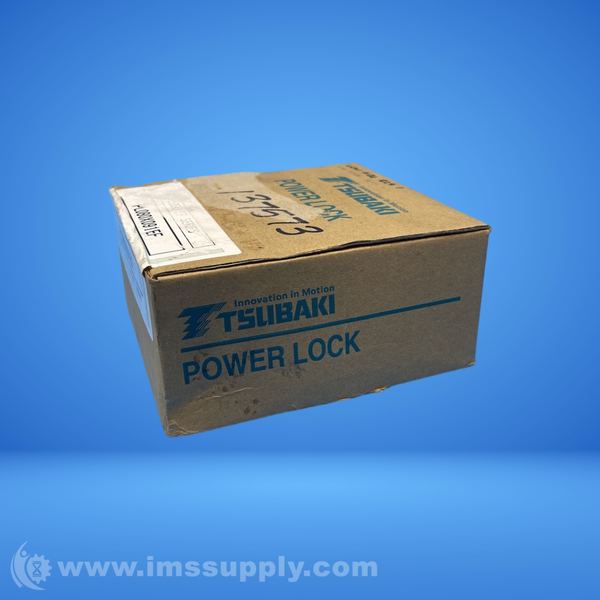

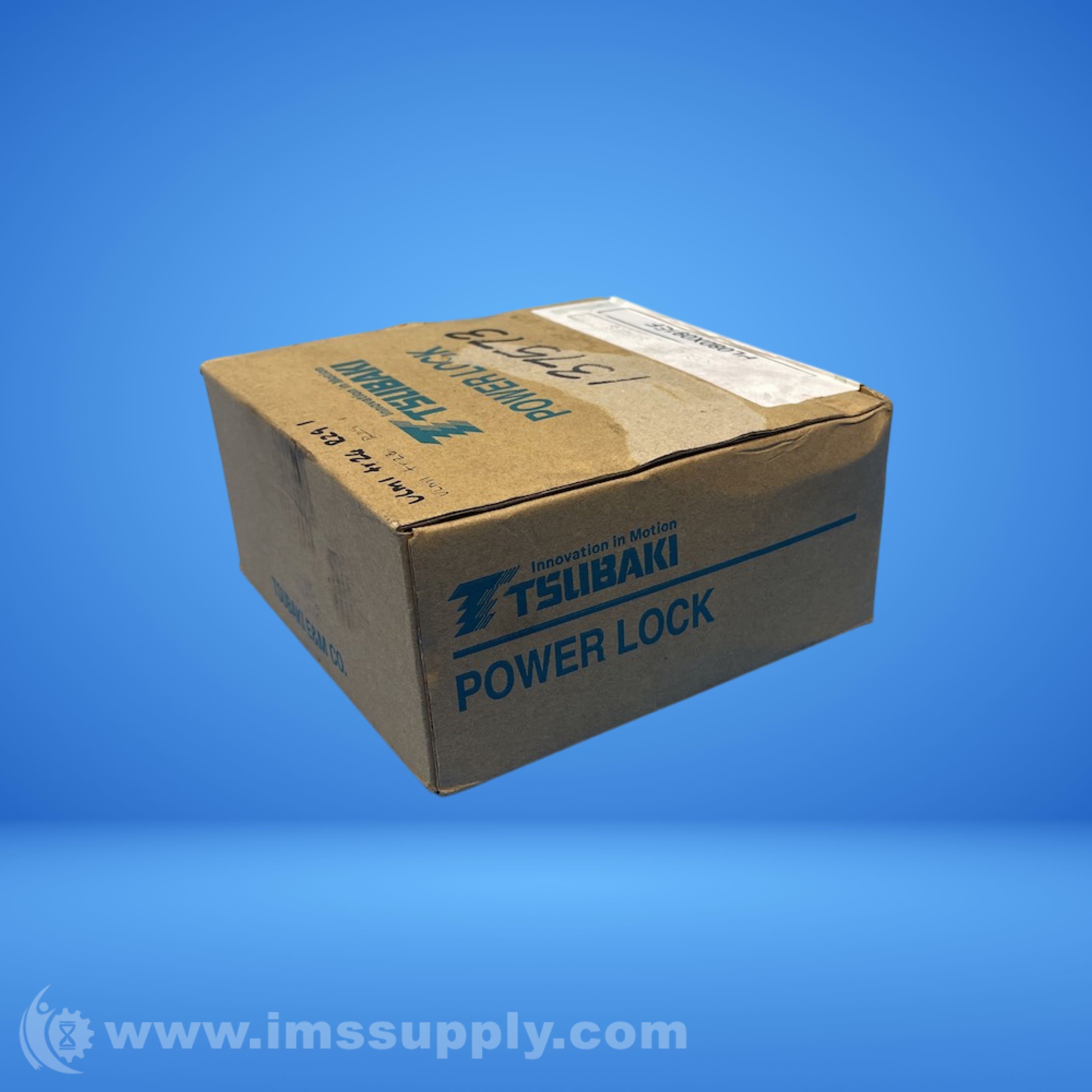

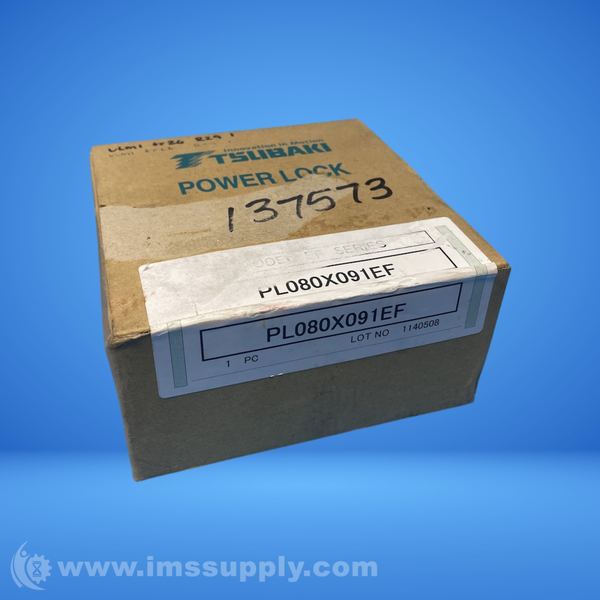

TSUBAKI PL080X091EF POWER LOCK
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: PL080X091EF
IMS Product Code: 2124354
Packaging: Sold Individually
Description:
Tsubaki PL080X091EF Power Lock
Tsubaki Power Lock EF series, shaft locking device
Specifications
- d - Shaft O.D.: 3.150 in
- t1 - Shaft Dia. Tolerance: -0.0018 in +0
- D - Hub Counter I.D.: 3.583 in
- t2 - Hub Counter ID Tolerance: +0.0021 in -0
- l: 1.339 in
- L2: 1.654 in
- L3: 0.669 in
- L4: 0.157 in
- Lt: 2.638 in
- D1: 3.898 in
- D2: 4.331 in
- D3: 4.921 in
- Transmissible Torque: 3260 ft·lb
- Transmissible Thrust: 24953 lb
- P - Contact Pressure - Shaft: 25527 psi
- P' - Contact Pressure - Hub Bore: 22481 psi
- Weight: 3.700 lb
- Tightening Torque: 25.500 ft·lb
- Applicable shaft tolerance: h8
- Applicable hub hole tolerance: H8
- Applicable surface roughness: Ra1.6
- Centering function: Yes
- Lubrication during assembly: Required
- Hub movement during assembly: Yes
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
