TSUBAKI PL130X180 KEYLESS LOCKING ASSEMBLY
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: PL130X180
IMS Product Code: 1512532
Packaging: Sold Individually
Description:

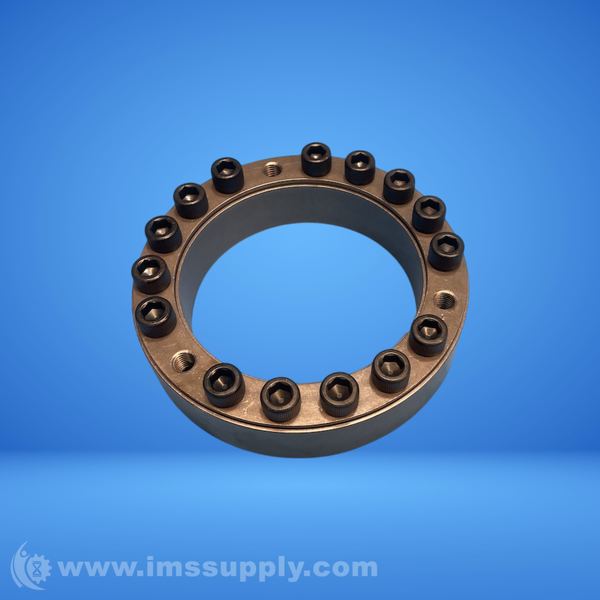

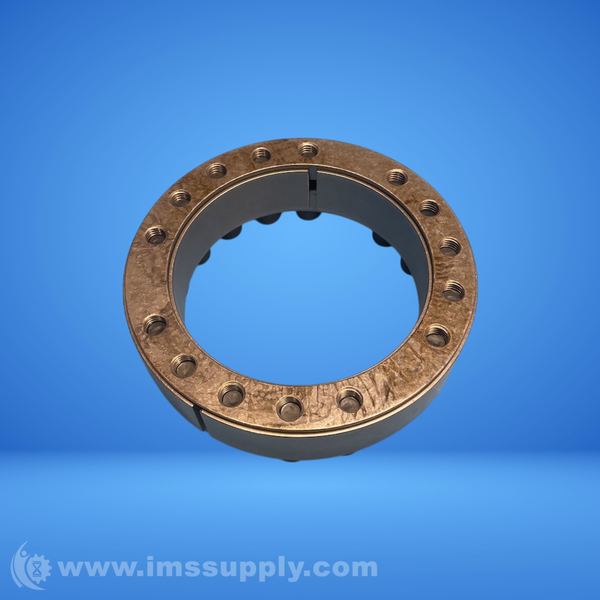

Tsubaki PL130X180 Keyless Locking Assembly
Keyless locking assembly with 130 mm bore diameter, 180 mm outside diameter, and M12 x 35 cap screw.
Specifications
- Bore Diameter: 130 mm
- Outside Diameter: 180 mm
- Overall Length: 50 mm
- Material: Carbon Steel
- Series: AS Series
- Screw Size: M12 x 35
- Transmissible Torque: 17800 N-m
- Transmissible Thrust: 274 kN
- Shaft Contact Pressure: 166 MPa
- Hub Contact Pressure: 120 MPa
- Temperature Rating: -30 to 200 degrees C
- Type: Multi-Purpose
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
