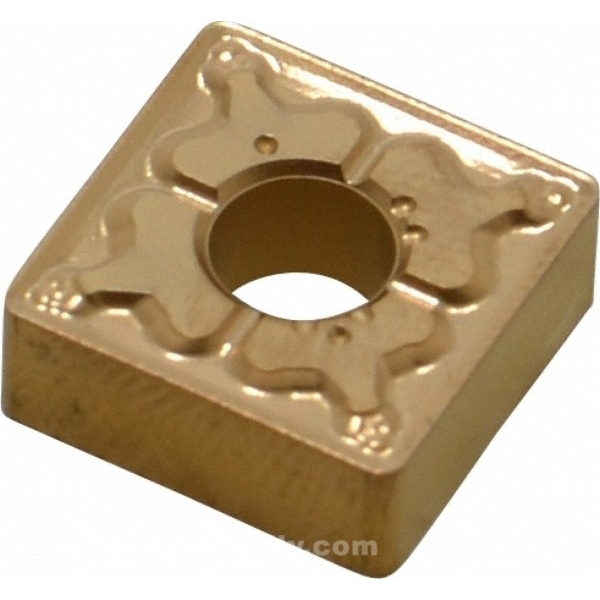

TUNGALOY 6864604, SNMG432 TM GRADE T9125 CARBIDE TURNING INSERT
Quick Overview
Manufactured By: TUNGALOY
Manufacturer Part Number: 6864604
IMS Product Code: 1791244
Packaging: Sold Individually
Description:
Tungaloy 6864604, SNMG432 TM Grade T9125 Carbide Turning Insert
Specifications:
| Insert Style | SNMG |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle | 12.70 |
| Inscribed Circle | 0.5000 |
| Inscribed Circle | 1/2 |
| Thickness | 3/16 |
| Thickness | 0.1875 |
| Corner Radius | 1/32 |
| Corner Radius | 0.0313 |
| Manufacturer's Grade | T9125 |
| Coating | TiCN/Al2O3 |
| Material Grade | C6 |
| Chip breaker | TM |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | SNMG432 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
