TURCK B4231-0/9 FIELD WIREABLE CONNECTOR
Quick Overview
Manufactured By: TURCK
Manufacturer Part Number: B4231-0/9
IMS Product Code: 2131612
Packaging: Sold Individually
Description:

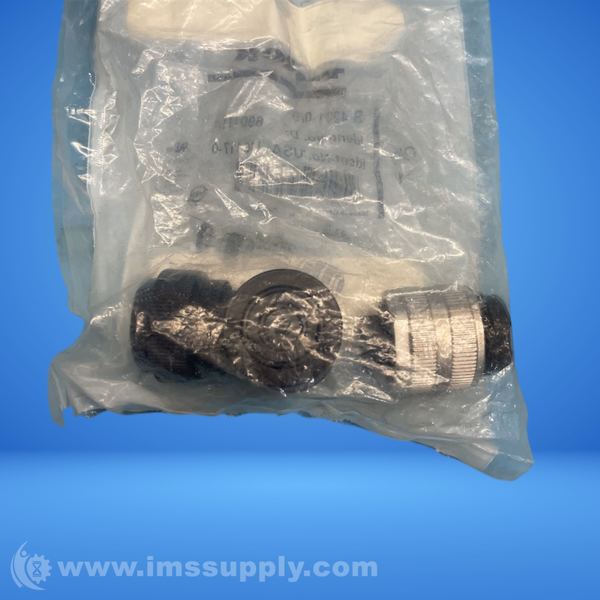

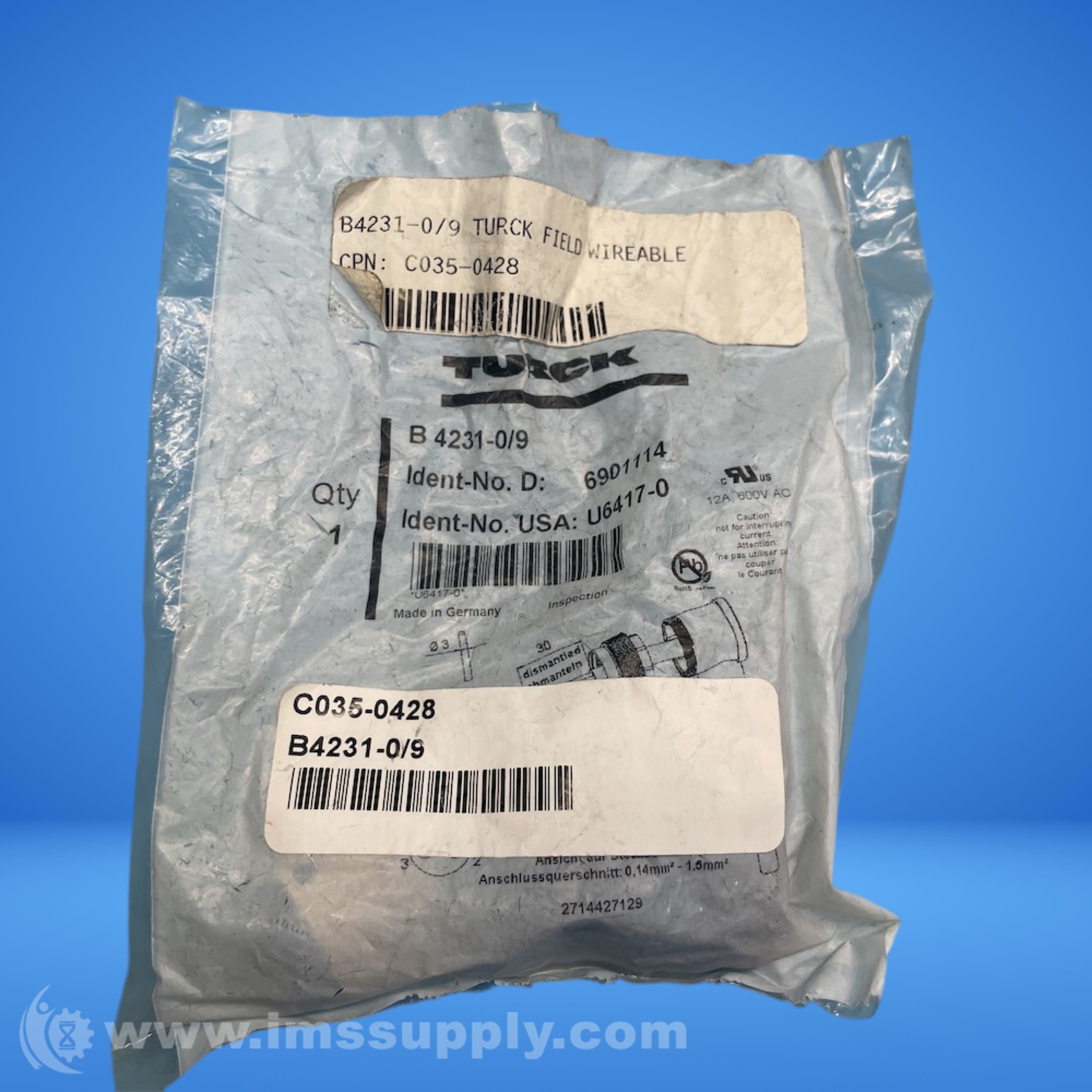

Turck B4231-0/9 Field Wireable Connector
7/8? Female, Angled, Screw-clamp terminal, Metal coupling nut, 3-pin, PG9 screw-in thread
Specifications
- Connector A: Female, 7/8?-16 UN, Angled
- Number of pins: 3
- Connection mode: Screw/clamp connection
- Screw-in thread: PG9
- Housing material: Plastic, PBT(UL 94 V0)
- Coupling nut/screw material: Die-cast Zinc, GD-Zn, Nickel-plated
- External diameter of the cable: 6…8 mm
- Core cross-section/Clamping ability: 0.14…1.5 mm˛
- Voltage: 600 V
- Current: 12 A
- Approvals: cULus recognized
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 11 In Stock
Ships on Monday, October 6, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
