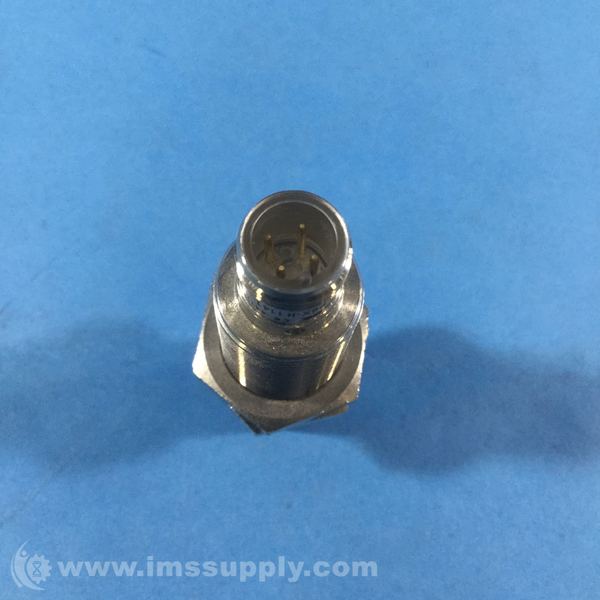

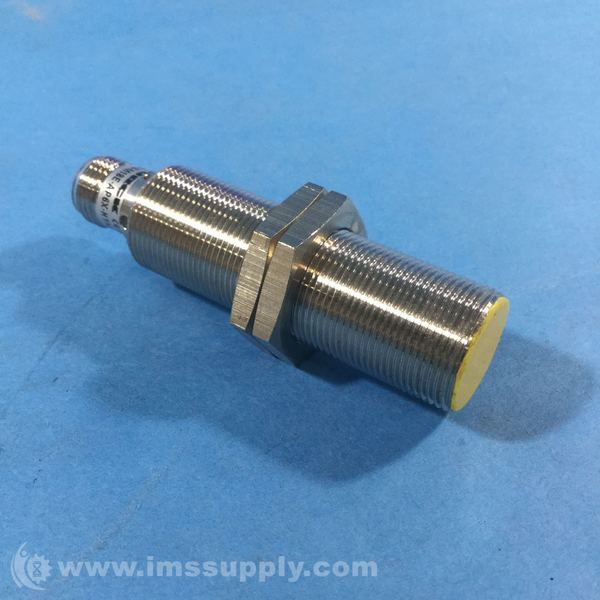

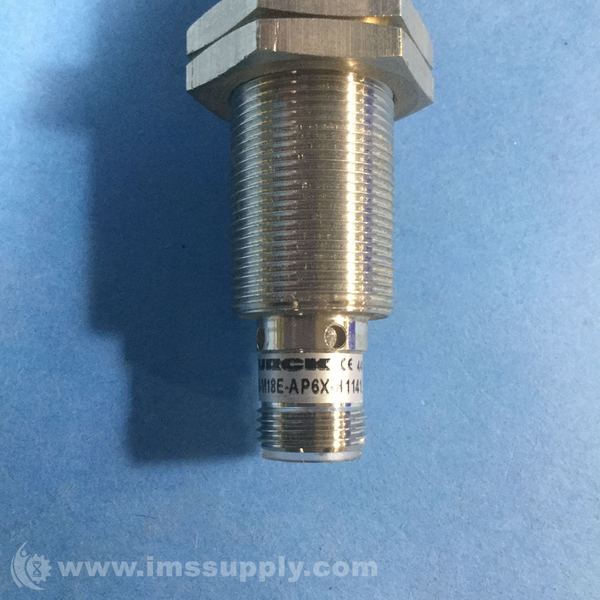

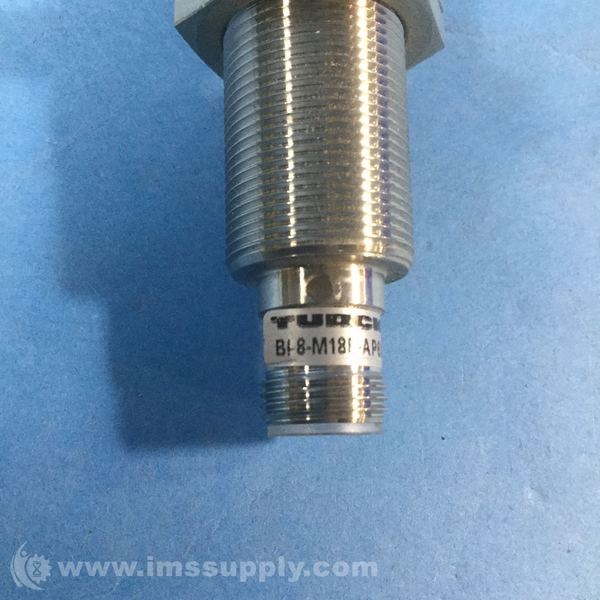

TURCK BI8-M18E-AP6X-H1141 M18 INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: TURCK
Manufacturer Part Number: BI 8-M18E-AP6X-H1141
IMS Product Code: 1766171
Packaging: Sold Individually
Description:
Turck BI8-M18E-AP6X-H1141 M18 Inductive Proximity Sensor
M18 x 1 threaded barrel inductive proximity sensor with 8 mm sensing range, shielded design, PNP output, normally open function, and M12 connector. Operates from 10-30 VDC with 200 mA maximum current. IP67 protection class.
Specifications
- Design: Threaded barrel
- Construction size: M18 x 1
- Rated switching distance: 8 mm
- Mounting: Flush
- Operating voltage: 10…30 VDC
- Output function: NO contact, PNP
- Switching frequency: 0.50 kHz
- Electrical connection: Connector, M12 × 1
- Housing material: Metal, CuZn, Chrome-plated
- Ambient temperature: -25…+70 degrees C
- Protection class: IP67
- Diameter: 18 mm
- Shielding: Shielded
- Power Type: DC
- Range: 8 mm
- Connection Type: M12 Connector
- Output Type: NO PNP
- Number of Wires: 3
- Composition: Metallic
- Voltage: 10-30 VDC
- Nominal Voltage: 12 VDC, 24 VDC
- Sensing Type: End
- Status Indicator: Yes
- Short Circuit Protection: Yes
- Reverse Polarity Protection: Yes
- Max Load Current: 0.2 A
- Height: 72 mm
- Length: 18 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 11 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
