TURCK BI4-M12-AP6X-H1141 INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: TURCK
Manufacturer Part Number: BI4-M12-AP6X-H1141
IMS Product Code: 1834822
Packaging: Sold Individually
Description:

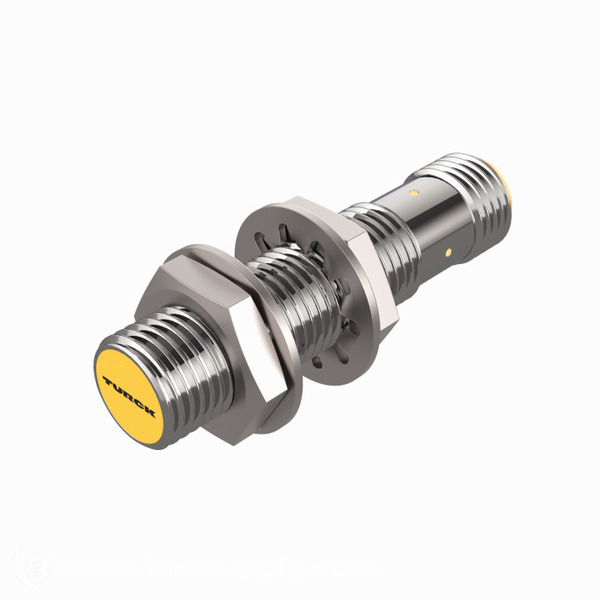

Turck BI4-M12-AP6X-H1141 Inductive Proximity Sensor
Inductive Proximity Sensor, Cylindrical, Embeddable, M12, 4 mm, PNP, 10-30V, Eurofast Connector
Specifications
- Design: Threaded barrel
- Construction size: M12 x 1
- Rated switching distance: 4 mm
- Mounting conditions: Flush
- Operating voltage: 10…30 VDC
- Output function: NO contact, PNP
- Switching frequency: 2.0 kHz
- Electrical connection: Connector, M12 × 1
- Housing material: Metal, CuZn, Chrome-plated
- Ambient temperature: -25…+70 degrees C
- Protection class: IP67
- Special features: Sn +
- Installation: Flush
- Output Function: 3-wire, PNP, NO
- Connection: M12 x 1, 4-pin
- Sensor Type: Inductive Proximity Sensor
- Sensing Distance Nom: 4mm
- Supply Voltage Min: 10VDC
- Supply Voltage Max: 30VDC
- Sensor Output Type: 3-Wire, PNP, NO
- Sensor Case / Package: Cylindrical M12 Thread
- Sensor Terminals: M12 Connector
- Sensor Body Material: Brass
- IP Rating: IP67
- Operating Temperature Min: -25 degrees C
- Operating Temperature Max: 70 degrees C
- Current, Switching: 200 mA
- Voltage, Supply: 30 VDC
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
