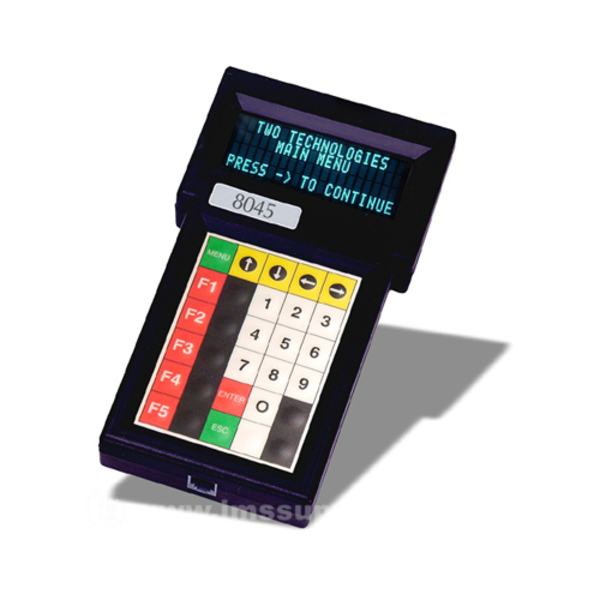

TWO TECHNOLOGIES 80NEL45R4-H 80 SERIES ASCII TERMINAL
Starting At: $429.75
Quick Overview
Manufactured By: TWO TECHNOLOGIES
Manufacturer Part Number: 80NEL45R4-H
IMS Product Code: 1790972
Packaging: Sold Individually
Description:

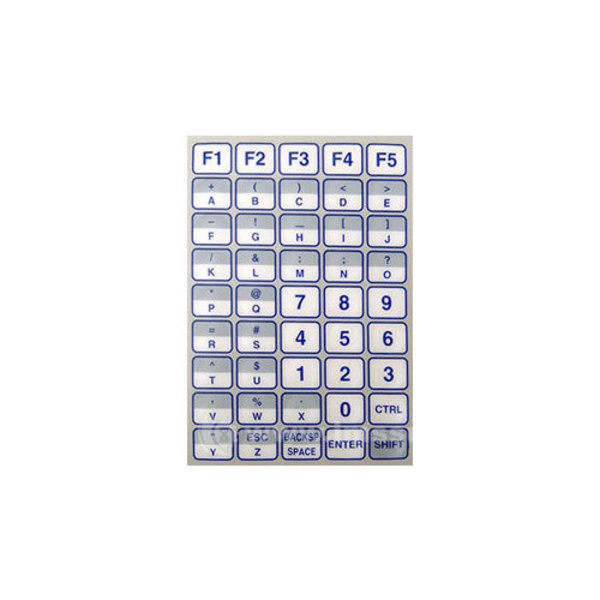

Two Technologies 80NEL45R4-H 80 Series ASCII Terminal, Supertwist Backlit Display, 45 Key Membrane Keypad, RS-422, 9.5-28 VDC Switching Regulator, Black
The 80 Series is a line of ASCII terminals for use with computers, properly equipped instruments and industrial machinery.
Custom configurations and special options available, including: Custom Default Settings, Displays, Keypad Graphics, I/O Interface, Firmware, Case Color, Boot and Logo Tag.
Three (3) year warranty included. Ask us about e-stop options!
Display
- Reflective/Transreflective Liquid Crystal Display
- LCD Twisted Nematic Display(Standard)
- Vacuum Fluorescent Display (VFD)
- Supertwist Display
- Supertwist Backlit
- LED Supertwist Backlit
- Extended Temperature Supertwist Backlit
- Extended Temperature Vacuum Fluorescent Display
- Dark Characters on Light Background (not VFD)
- Extended U.S. ASCII Character Set
- Menu Controlled Contrast Setting
- LED Indicators (Option)
- 4 Line x 20 Characters
Keys & Switches
- Reflective/Transreflective Liquid Crystal Display
- 4 Line x 20 Characters
- LCD Twisted Nematic Display (Standard)
- Vacuum Fluorescent Display (VFD)
- Supertwist Display
- Supertwist Backlit
- LED Supertwist Backlit
- Extended Temperature Supertwist Backlit
- Extended Temperature Vacuum Fluorescent Display
- Dark Characters on Light Background (not VFD)
- Extended U.S. ASCII Character Set
- Menu Controlled Contrast Setting
- LED Indicators (Option)
Power
- 9.5-28 VDC Switching Regulator
- Battery Option Available
- Current: 45-50 mA RS-422
- AA Alkaline Batteries (6) (Not Shipped with Unit)
- Some Options Require Additional Current (Example: Backlight adds 50 mA)
- Nickel Metal Hydride Rechargeable Batteries
Interface
- Handshake: 2 Lines (RS-232)
- RS-232 Levels
- Data Rates: 300 - 19,200 bps
- Parity: Even, Odd, Mark, Space, Ignore
- E-Stop Switch (Option)
- Control Bits: 1 Start and 1-2 Stop Bits
- Connector: 6-pin Female Modular, Optional Permanent or Custom Cable Configurations
Environment
- Nematic Displays
- Storage Temp: -20°C to +70°C
- Operating Temp: 0° to + 50°C
- Extended Temp: -20°C to +70°C
- Vacuum Fluorescent Displays
- Storage Temp: -20° to + 70°C
- Operating Temp: -20° to + 70°C
- Extended Temp: -40° to + 85°C
- Humidity 5-95% (Non-Condensing)
User Selectable Options
- Baud
- Data Bits
- Parity
- Stop Bits
- Display PE
- Repeat
- Key Click
- KNP Function
- Cursor
- Cursor Blink
- XON/XOFF
- Handshake
- Echo
- Escape Mode
- CR/LF Mode
- Self-Test
- Shift Lock
- Viewing Angle
- Break Commands
- Backlight
- Scroll on Last Character
Custom Options
- Default settings
- Displays
- Keypad graphics
- I/O interface
- Firmware
- Case color
- Logo Tag
- LED Indicators
Certifications
- CC Class A
- CE (in standard configuration)
- CENELEC EMI Standards EN55022
- CISPR Class A
- Electromagnetic Compatibility (EMC) EN50082-1
- Safety Standard EN60950
Features
- ANSI 3.64 (VT-100) Compatibility
- Membrane or Elastomeric Keypad
- 10 Function Keys Programmable as Characters or Strings
- Menu or Host-driven User Parameter Selection
- Up to 19,200 bps Communications
- Advanced Control Mode (ACM)
- LED Indicators Available
- Battery Powered Available
- Height: 7.15 inches (181.6 mm)
- Width: 4.10 inches (104.1 mm)
- Depth: 1 inch (25.4 mm)
- Depth with Battery: 1.65 (41.91 mm)
- Weight: 8 oz. (227 g.)
- Weight w/Battery: 18 oz. (510 g.)
- Case: Rugged Cycolac ABS
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 14 to 28 Days
Let IMS Repair Yours:
Connect with IMS engineers who will repair your broken or damaged TWO TECHNOLOGIES 80NEL45R4-H 80 SERIES ASCII TERMINAL. Contact us today for details.
Repair Time Estimates Provided In Quote
