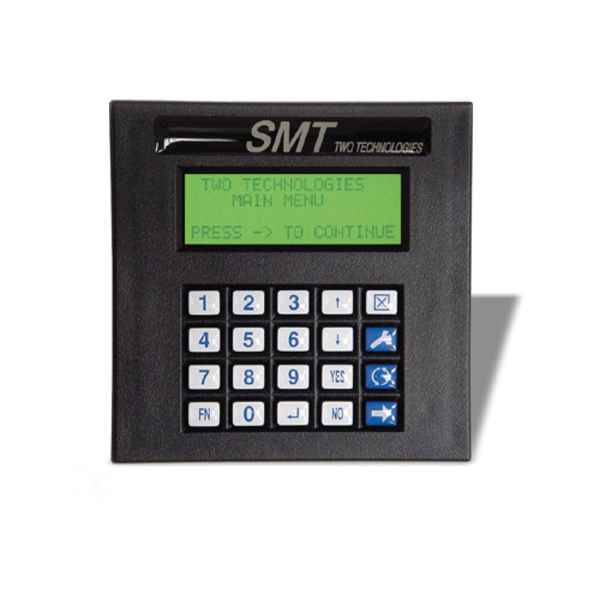

TWO TECHNOLOGIES SMTNELR4-1 SMT SERIES PANEL MOUNT TERMINAL

MSRP: $345.50
Starting At: $306.75

Quick Overview

Manufactured By: TWO TECHNOLOGIES
Manufacturer Part Number: SMTNELR4-1
IMS Product Code: 1790830
Packaging: Sold Individually

Description:

Two Technologies SMTNELR4-1 SMT Series Panel Mount Terminal, Supertwist Backlit, 20 Key Keypad Membrane, RS-422, 5V, Black

The SMT Series is line of ASCII terminals for use with computers, properly equipped instruments and industrial machinery. The SMT can be mounted permanently or as a detachable unit.

Custom configurations and special options available, including: Custom Default Settings, Displays, Keypad Graphics, I/O Interface, Firmware, Case Color and Logo Tag

Three (3) year warranty included.

Display

  • Reflective/Transreflective Liquid Crystal Display
  • 4 Row x 20 Character Display Format
  • Standard Character Set: US ASCII (5 x 7 pixels). Latin1 and European Character Sets Also Available as an Option.
  • Dark Characters on Light Background  (except VFD)
  • Optional Super Twist, Supertwist Backlit, Extended Temperature Supertwist Backlit, VFD and Extended Temperature VFD available.

Keys & Switches

  • Type: Membrane
  • Layouts: 20-key
  • Feedback: Tactile and Audible
  • Four Programmable: Function Keys
  • Optional Backlit and Backlit Phosphorescent Keypads available

Power

  • Power Voltage: 5 VD C +/- 5% (Maximum Voltage Depends on Current Draw)  Linear Regulator
  • Current: 45-50 mA Typical (Some Options Will Require Additional Current)

Interface

  • Type: RS-422
  • Handshaking: 2 Lines (DTR, DTS) for RS-232, CMOS/LSTTL
  • Data Rates: 110 to 9,600
  • Parity Range: Even, Odd, Mark, Space and None
  • Control Bits: 1 Start and 1-2 Stop Bits
  • Standard Interface Connector: 6 Pin Female Modular Connector

Environment

  • Nematic Displays
    • Storage Temp: -20°C to +70°C
    • Operating Temp: 0° to + 50°C
    • Extended Temp: -20°C to +70°C
  • Vacuum Fluorescent Displays
    • Storage Temp: -20° to + 70°C
    • Operating Temp: -20° to + 70°C
    • Extended Temp: -40° to + 85°C

    Humidity 5-95% (Non-Condensing)
    NEMA 4/12- Panel Mounted (Using Supplied Hardware)

User Selectable Options

  • Baud
  • Data Bits
  • Parity
  • Display PE
  • Repeat
  • Handshake
  • Echo
  • Self-Test

Custom Options

  • Default Settings
  • Displays • Keypad Graphics
  • I/O Interface
  • Firmware
  • Case Color
  • Logo Tag

Certifications

  • FCC Class A
  • CE (standard configuration)
  • CENELEC EN 55022
  • CISPR Class A
  • EN 50082.1
  • EN 60950

Features

  • Panel Mount (Multiple mounting options)
  • Programmable Function Keys (single character)
  • Membrane or Elastomeric Keypad
  • 20 Key Standard Keypad
  • Parameter Setup
  • Up to 9,600 bps Communication
  • NEMA 4/12
  • Optional VT-100/ANSI 3.64 Compatibility
  • Height: 4.9 Inches (124 mm)
  • Width: 4.9 Inches (124 mm)
  • Depth w/Cover: 1.3 inches (33 mm)
  • Depth w/o Cover: 1.1 inches (28 mm)
  • Weight: 12 Ounces (340 grams)
  • Case Front: Valox 420

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 14 to 28 Days

Let IMS Repair Yours:
Connect with IMS engineers who will repair your broken or damaged TWO TECHNOLOGIES SMTNELR4-1 SMT SERIES PANEL MOUNT TERMINAL. Contact us today for details.

Repair Time Estimates Provided In Quote

IMS Supply is an authorized Two Technologies distributor.
