U.S. TSUBAKI PL032X060AE POWER-LOCK
Quick Overview
Manufactured By: U.S .TSUBAKI
Manufacturer Part Number: PL032X060AE
IMS Product Code: 1868074
Packaging: Sold Individually
Description:

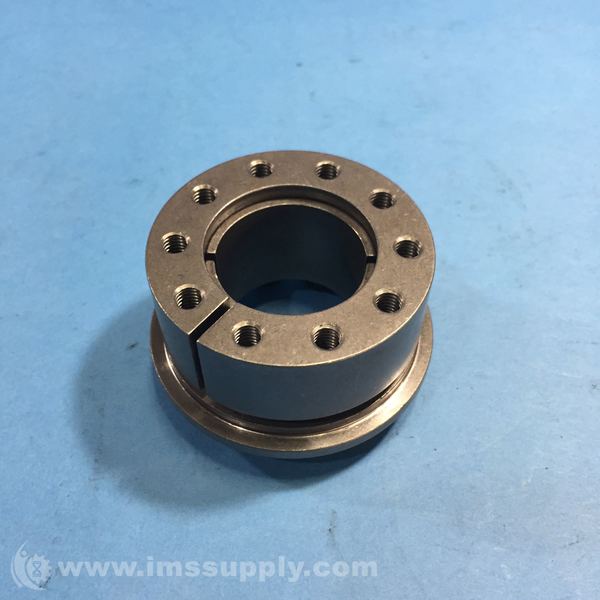

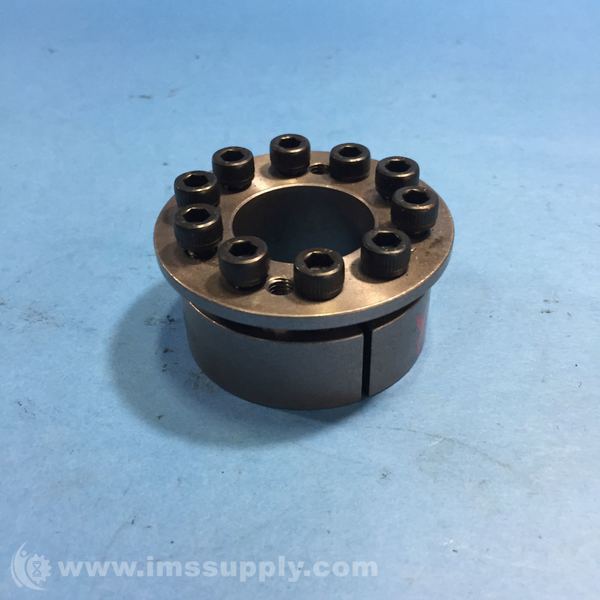

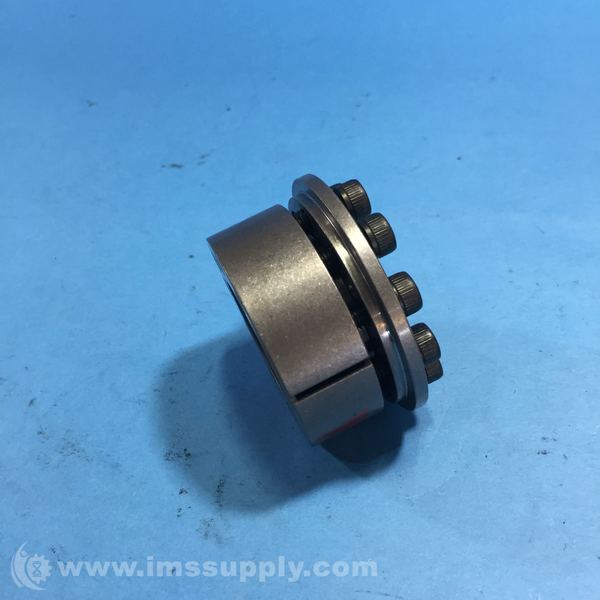

U.S. Tsubaki PL032X060AE Power-Lock
A mechanical shaft-hub connection device made of steel with nickel plating, part of the PL series.
Specifications
- d - Shaft O.D.: 1.260 in
- t1 - Shaft Dia. Tolerance: -0.0015 in +0
- D - Hub Counter I.D.: 2.362 in
- t2 - Hub Counter ID Tolerance: +0.0015 in -0
- l: 0.807 in
- L: 1.217 in
- Lt: 1.453 in
- T1: 0.142 in
- T2: 0.118 in
- D1: 2.638 in
- Transmissible Torque: 550 ft·lb
- Transmissible Thrust: 10538 lb
- P - Contact Pressure - Shaft: 38726 psi
- P' - Contact Pressure - Hub Bore: 16390 psi
- Weight: 0.970 lb
- Series: PL
- Pitch: 3/8" (9.525mm)
- Length: 60 Links
- Material: Steel
- Finish: Nickel Plated
- Applicable shaft tolerance: h8
- Applicable hub hole tolerance: H8
- Applicable surface roughness: Ra1.6
- Centering function: Yes
- Lubrication during assembly: Required
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 56 minutes.
