U.S. SOLID USS-MSV00015 MOTORIZED BALL VALVE
Quick Overview
Manufactured By: U.S. SOLID
Manufacturer Part Number: USS-MSV00015
IMS Product Code: 2154132
Packaging: Sold Individually
Description:

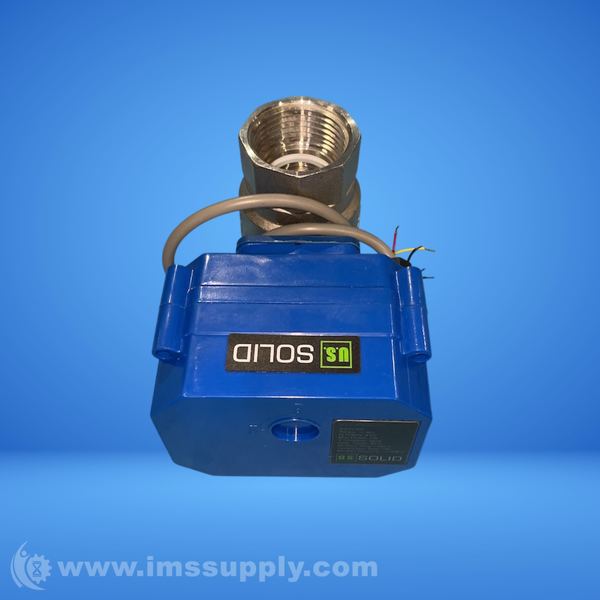

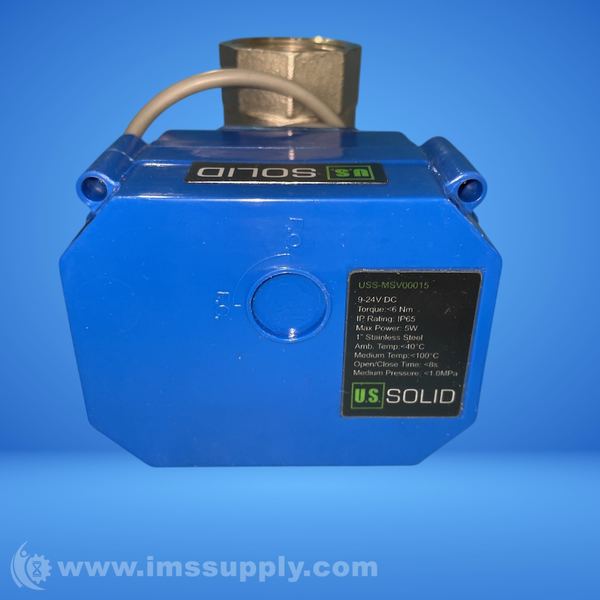

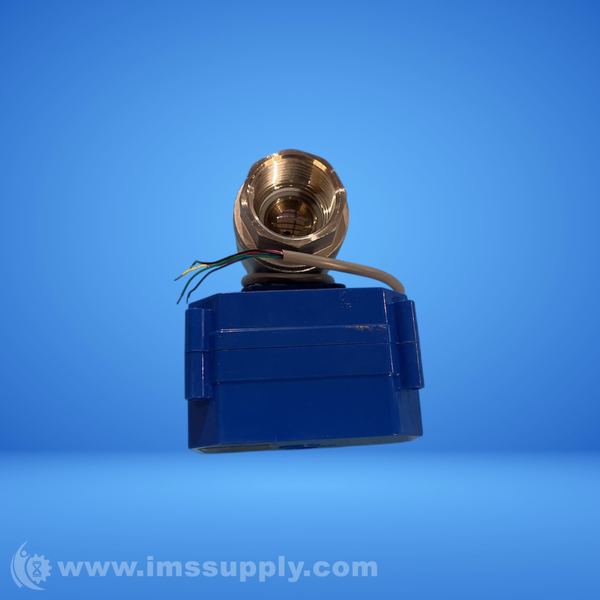

U.S. Solid USS-MSV00015 Motorized Ball Valve
1 inch stainless steel motorized ball valve with full port, 9-24V DC, 5 wire setup.
Specifications
- Size: 1"
- Wiring Type: 5 Wire
- Valve Material: SS304
- Ball Seal: PTFE
- Operating Time: 6 - 8 Seconds
- Working Voltage: 9 - 24V DC
- Max Power: 5 W
- Max Torque: 6 N m
- Max Medium Pressure: 1.0 Mpa
- Temperature Range for Flow Medium: 0 degrees C to 90 degrees C
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Full
- Thread Type: NPT/G
- Operating State: Normally Closed
- Ambient Temperature Range: -10 degrees C to 40 degrees C
- Enclosure Rating: IP65
- Diameter: 1 in
- Housing Material: Stainless Steel
- Valve Operation: Motorized
- Technical Standard: National Pipe Taper (NPT)
- Suitable Media: Water
- Country of Origin: China
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
