UNIPULSE F372A DIGITAL INDICATOR
Quick Overview
Manufactured By: UNIPULSE
Manufacturer Part Number: F372A
IMS Product Code: 2121909
Packaging: Sold Individually
Description:

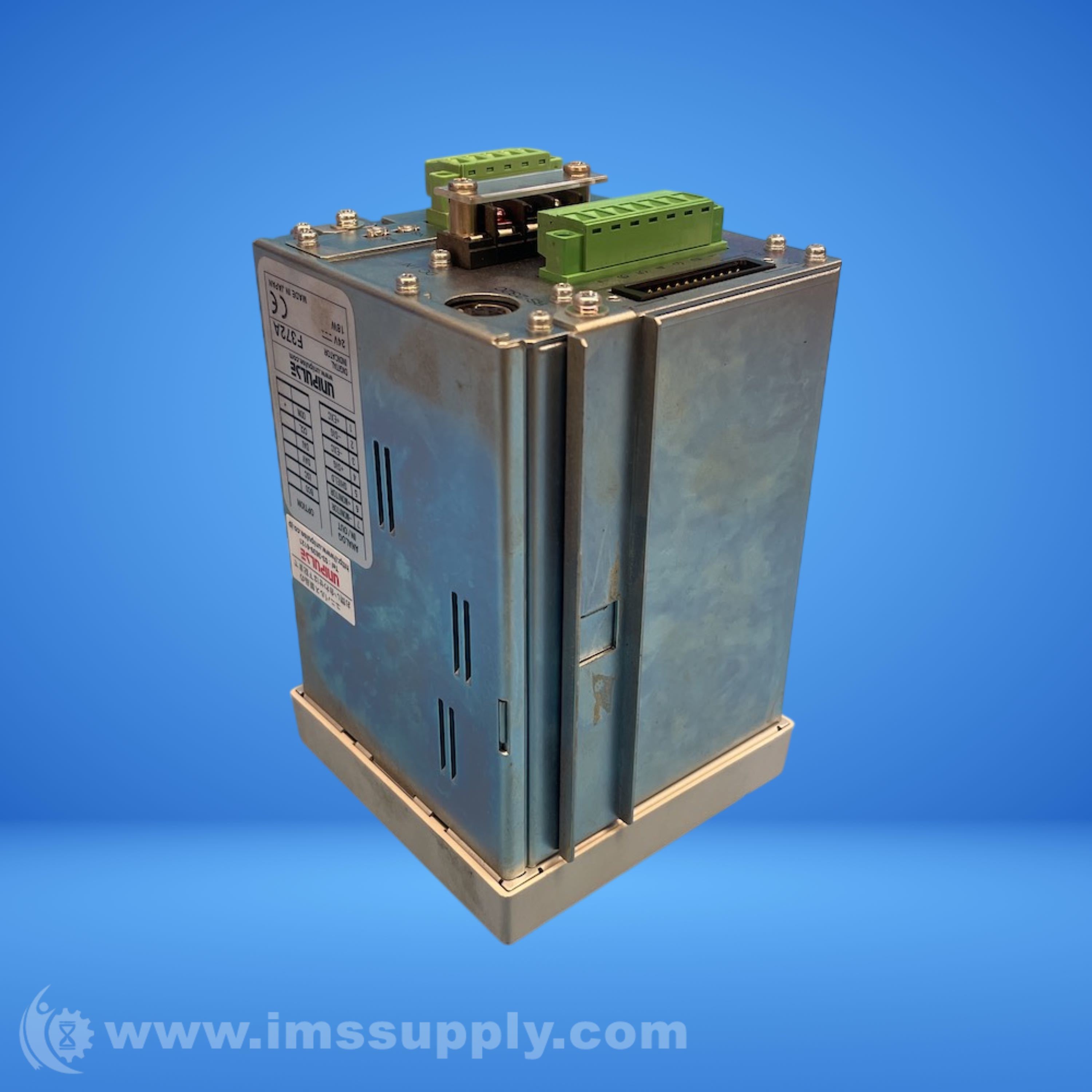

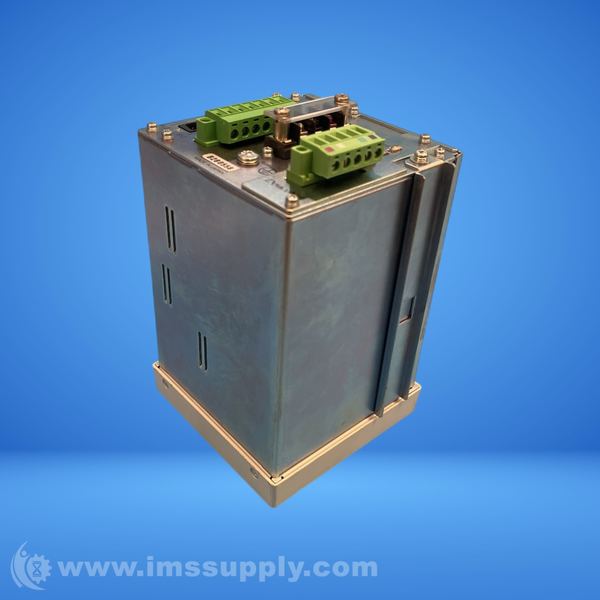

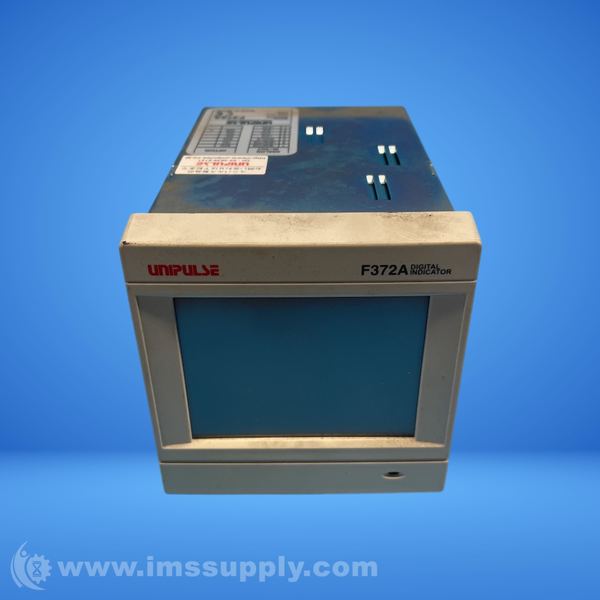

Unipulse F372A Digital Indicator
Graphic display/ touch panel type digital indicator
Specifications
- Excitation Voltage: DC 10 V, 2.5 V±5%
- Output Current: within 120 mA
- Signal Input Range: -3.0 to +3.0 mV/V
- Accuracy: Non-linearity: within 0.02% FS±1 digit (at 3.0 mV/V input), Zero drift: within 0.5 µV/? RTI, Gain drift: within 0.01%/?
- Analog Filter: Low pass filter (-6 dB/oct.), Selectable at 30 Hz, 100 Hz, 300 Hz, 1 kHz
- A/D Converter: Speed: 2000 times/sec., Resolution: 24 bit (binary), Effective resolution: Approx. 1/30000 – 3.0 mV/V input
- Analog Monitor Output: Output level: Approx. 2 V per 1 mV/V of input; Load resistance: 2 kO or more
- Display Unit: TFT color LCD
- Display Area: 71(W) mm × 53(H) mm
- Dot Structure: 320 × 240 dot
- Measured Value: 5 digits: -99999 to +99999, Sign: Minus sign on most significant digit
- Power Supply Voltage: DC 24 V (±15%)
- Power Consumption: 5 W typ.
- Inrush Current (typ): 55 A, 1 msec (cold start at room temperature)
- Operating Conditions: Operation temperature: -10? to +40?, Storage temperature: -20? to +60?, Humidity: 85% RH or less (non-condensing)
- Dimensions: 96(W) × 96(H) × 138(D) mm (Not including projections)
- Weight: Approx. 1.0 kg

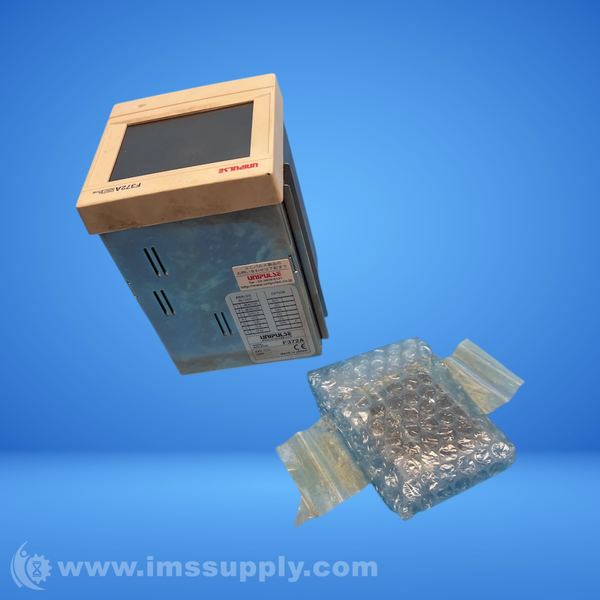

New - Missing Box (Special):
Part comes with hardware
Availability: 2 In Stock
