UNIPULSE LC240 LOAD CELL CONVERTER
Quick Overview
Manufactured By: UNIPULSE
Manufacturer Part Number: LC-240
IMS Product Code: 2124686
Packaging: Sold Individually
Description:

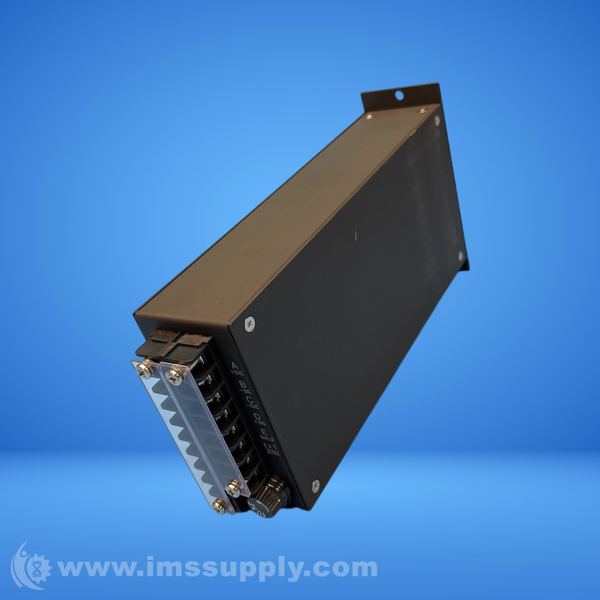

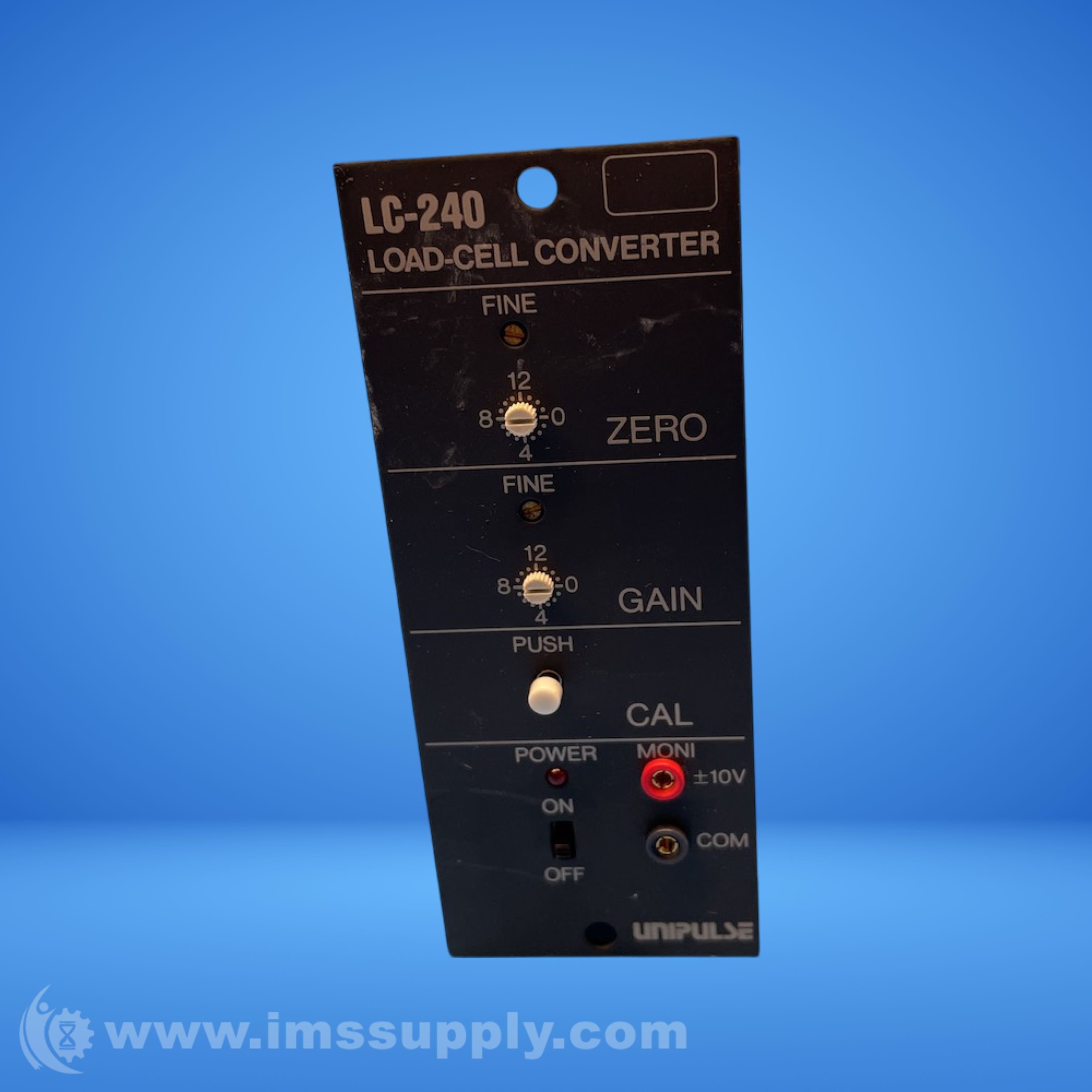

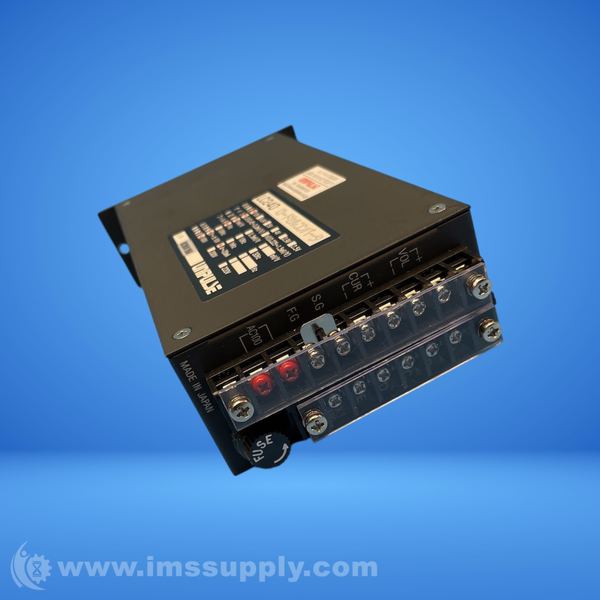

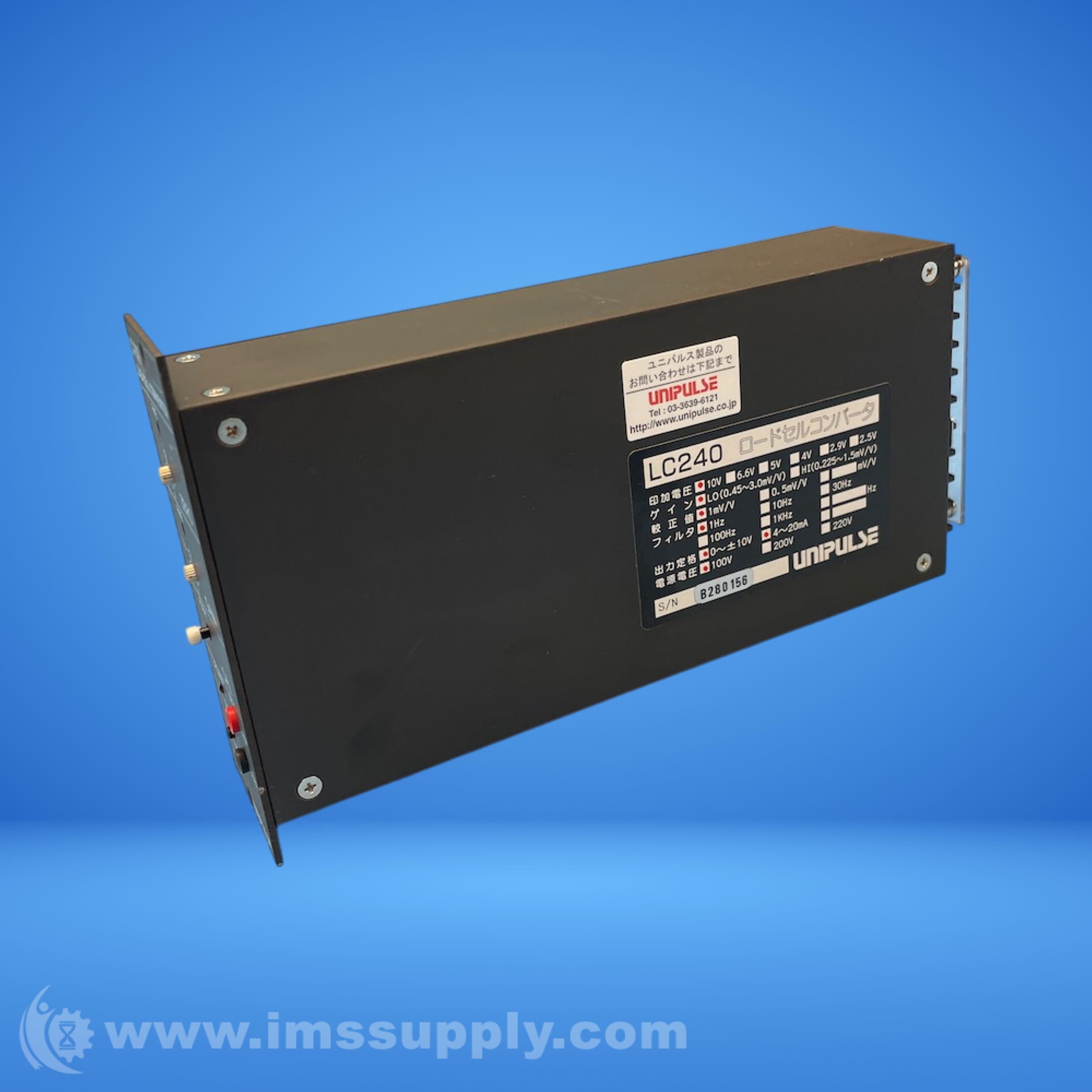

Unipulse LC240 Load Cell Converter
The LC240 is a low-drift load cell converter designed for load cells. It features a U300DC preamplifier for stability, low drift, and low noise. The bridge excitation power supply is adjustable and can drive up to 4 load cells in parallel. It includes a calibration function and supports both voltage and current output.
Specifications
- Excitation Voltage: DC 10 V ±0.5%, Output current: within 120 mA
- Zero Adjustment Range: 0 to approx. 2 mV/V
- Gain Adjustment Range: 0.45 mV/V to 3.0 mV/V, 0.225 mV/V to 1.5 mV/V
- Accuracy: Non-linearity: within 0.01% FS, Zero drift: within 0.25 µV/°C RTI, Gain drift: within 50 ppm/°C, Noise: within 0.2 µVp-p RTI (1 Hz)
- Output Signal: Voltage output: 0 to ±10 V, Load resistance: 2 kO or more, Output resistance: 0.2 O or less, Current output: 4 to 20 mA, Load resistance: 500 O or less
- Low-pass Filter: Low-pass filter (-6 dB/oct.), Approx. 1 Hz/-3 dB
- Calibration Value: 1 mV/V ±0.2%
- Power Supply Voltage: AC 100 V ±10%, 50/60 Hz
- Power Consumption: Approx. 5 VA
- Operating Conditions: Temperature: -10 to +40°C, Humidity: 85% RH or less (non-condensing)
- Dimensions: 44.6(W) × 110(H) × 185(D) mm (Not including projections)
- Weight: Approx. 820 g
New - Missing Box (Special):

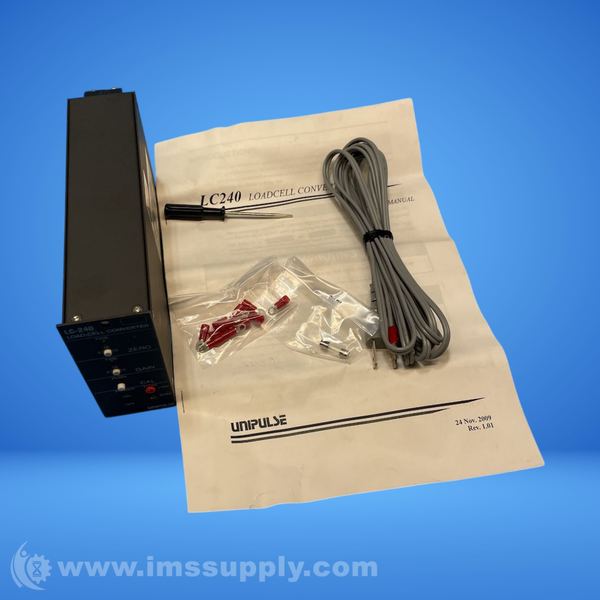

Part comes with manual and power cable.
