UNITED ELECTRIC H100-190 PRESSURE SWITCH
Quick Overview
Manufactured By: UNITED ELECTRIC
Manufacturer Part Number: H100-190
IMS Product Code: 2125857
Packaging: Sold Individually
Description:

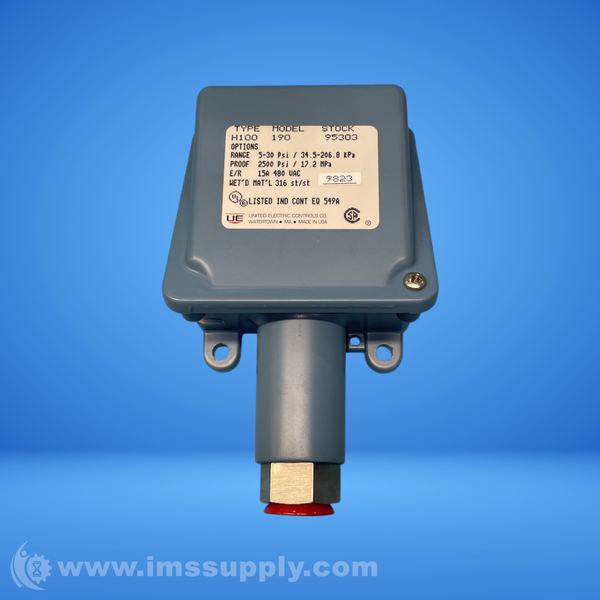

United Electric H100-190 Pressure Switch
Pressure switch with adjustable setpoint range of 5 to 30 PSI, SPDT switch output, and welded 316 stainless steel diaphragm. Epoxy-coated cast aluminum enclosure with NEMA 4X classification.
Specifications
- Adjustable Set Point: 5 to 30 PSI
- Accuracy: 1.5%
- Ambient Temperature Limits: -40 to 160 degrees F
- Contact Rating: 15 A @ 125 VAC, 15 A @ 250 VAC, 15 A @ 480 VAC
- Contact Type: SPDT
- Direction: Uni-Directional
- Electrical Connection: 1/2" NPT (female)

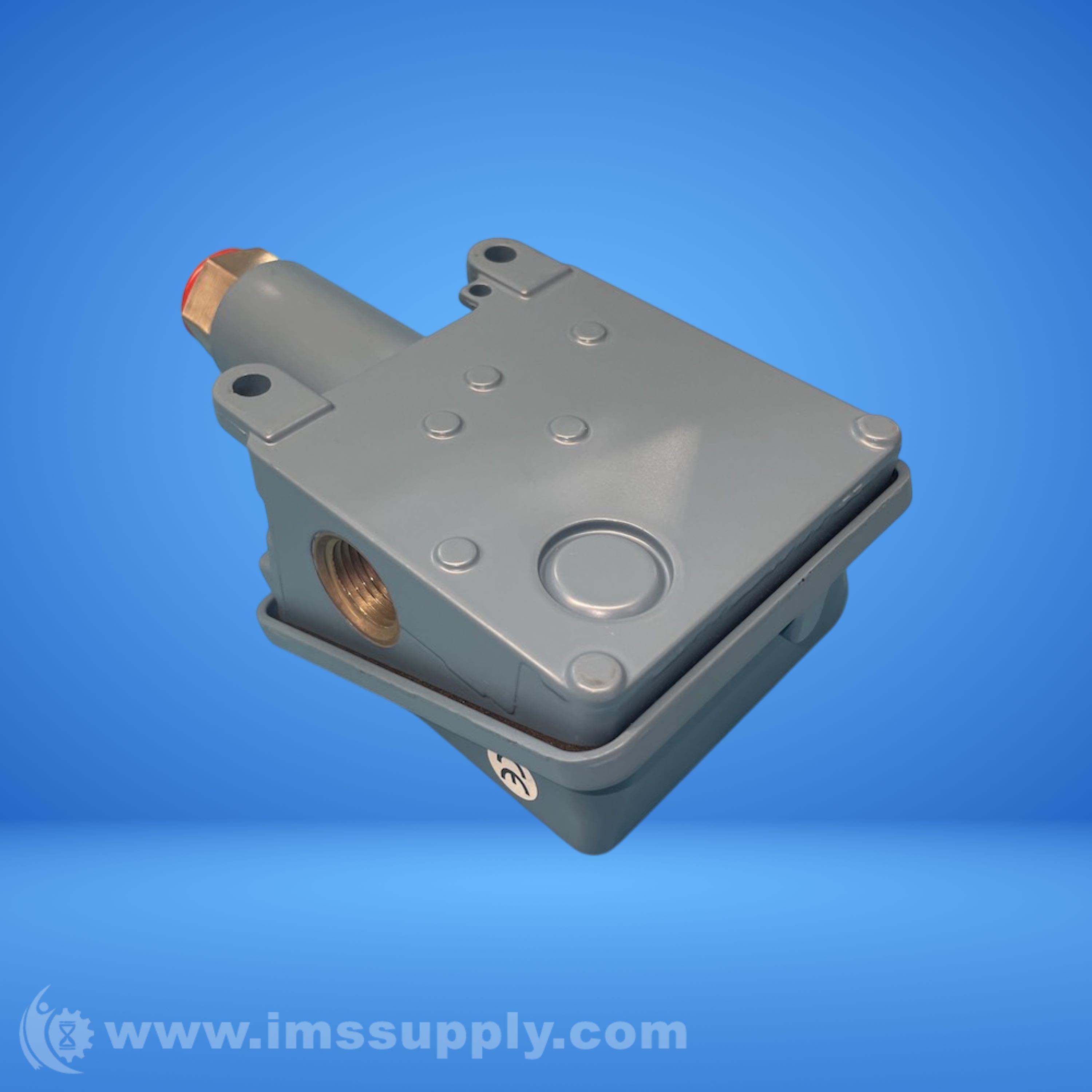

- Enclosure: Die cast aluminum, epoxy powder coated, gasketed
- Enclosure Classification: Enclosure type 4X
- Housing Material: Metallic
- Material: 316 SS
- Measurement Range: 5 - 30 PSI
- Media Compatibility: Air
- Pressure Connection: 1/2" NPT (female)
- Process Variable: Pressure
- Set Point Repeatability: ±1.5% of adjustable range
- Setpoint Adjustment Type: Internal Adjustment
- Shock: Set point repeats after 15 G, 10 millisecond duration
- Storage temperature: -65 to 160 degrees F
- Switch Output: One SPDT snap action switch
- Switch Type: (1) SPDT
- Vibration: Set point repeats after 2.5 G, 5-500 Hz
- Wetted Materials: Stainless Steel

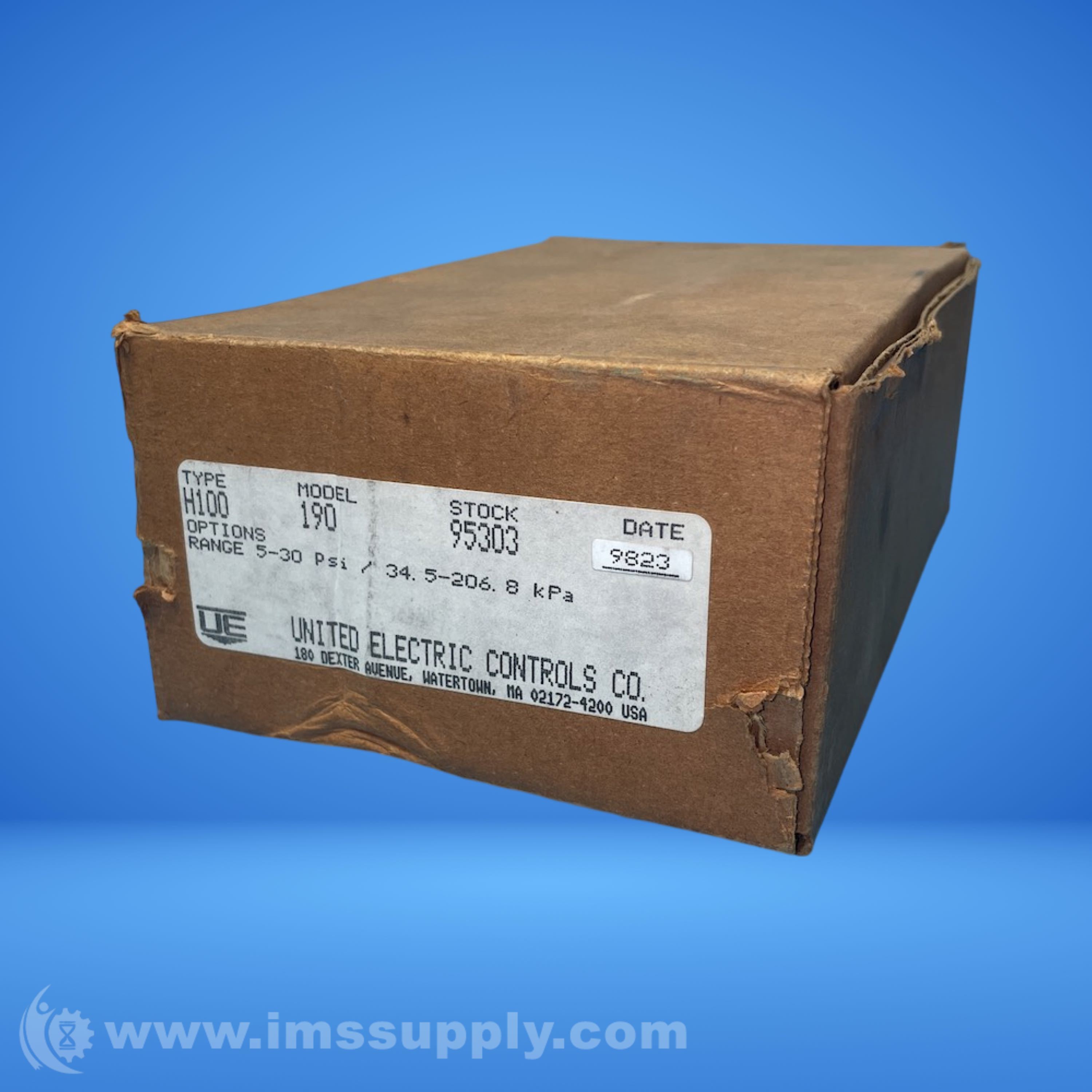

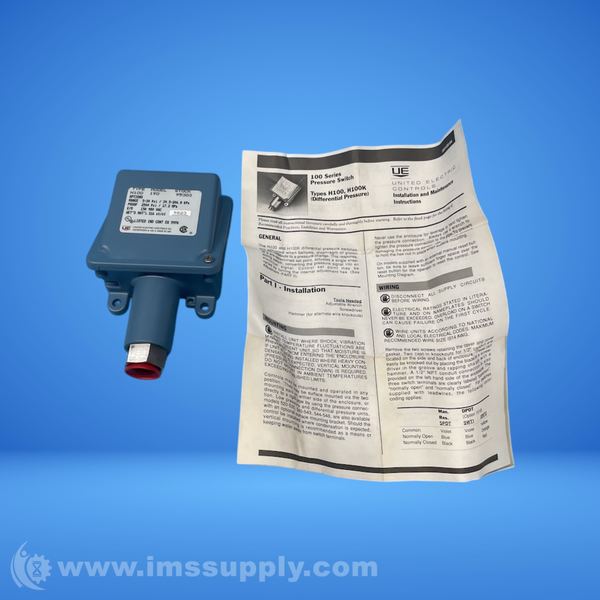

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
