VALCOM VIP-801A IP PAGING ADAPTER
Quick Overview
Manufactured By: VALCOM
Manufacturer Part Number: VIP-801A
IMS Product Code: 2160182
Packaging: Sold Individually
Description:
Valcom VIP-801A IP Paging Adapter
The Valcom VIP-801A provides access to a single zone of one-way paging through an IP-based network. It can be programmed as a SIP device for connectivity to VoIP phone systems.
Specifications
- Input Impedance: 600 Ohms
- Input Level: -10dBm nominal
- Voice Switch Sensitivity: -21dBm
- AUX Input Impedance: 8 to 600 Ohms
- AUX Input Level: -10dBm nominal
- Output Impedance: 50 Ohms
- Output Level: -10dBm nominal
- Relay Current: 1 Amp @ 24VDC
- Switch Port: 1x RJ45
- PoE: 802.3af Class 3 compliant

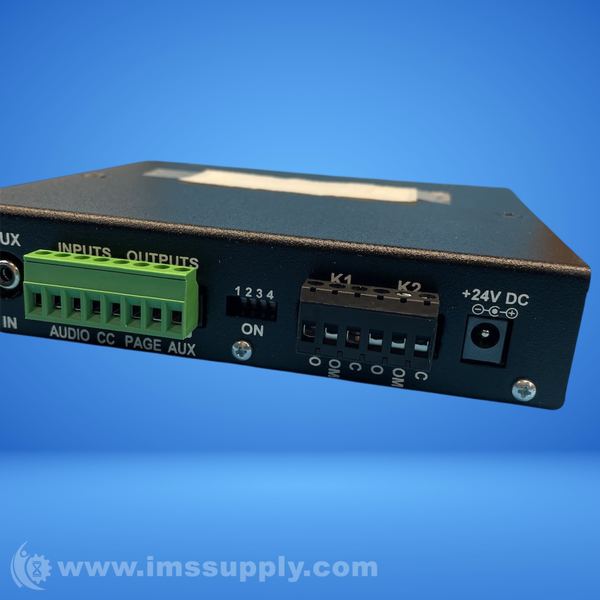

- Connections: RCA jack for AUX in, 2x Audio out, 2x Form relays, Audio in, Contact Closure in
- Dimensions: 1.38 H x 6.13 W x 5.25 D
- Type: Paging Amplifier
- Power Output: 8 Watts
- Frequency Response: 100 Hz to 16 kHz
- Signal-to-Noise Ratio: 70 dB
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 17 minutes.
