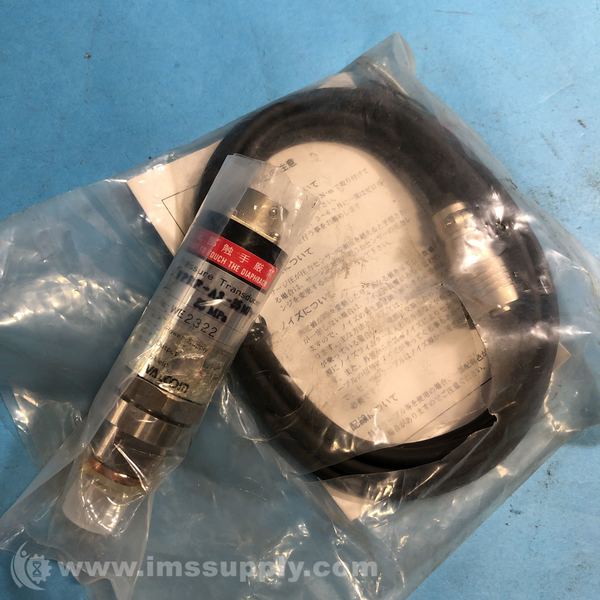

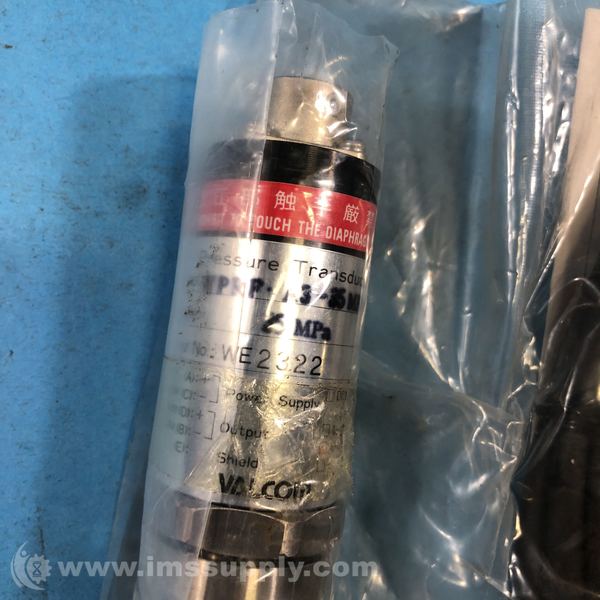

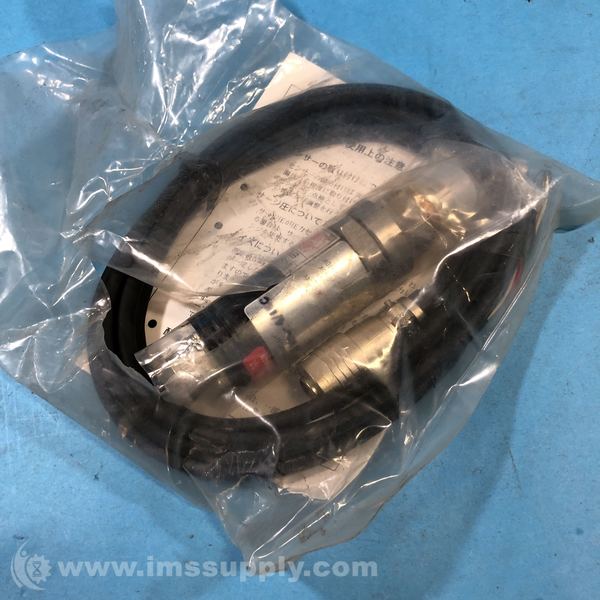

VALCOM VPRF-A3-35MPA-4/IEC VPRF SERIES TRANSDUCER
Quick Overview
Manufactured By: VALCOM
Manufacturer Part Number: VPRF-A3-35MPA-4/IEC
IMS Product Code: 1803982
Packaging: Sold Individually
Description:
Valcom VPRF-A3-35MPa-4/IEC VPRF Series Transducer
Specifications:
- Rated Output(R.O.): 1.5mV/V ±0.15mV/V(1MPa:1.07mV/V ±0.15mV/V)
- Non Linearity: ±0.5%R.C.
- Hysteresis: ±0.5%R.C.
- Excitation;Recommended: 5V or less
- Excitation;Maximum: 10V
- Input Terminal Resistance: 350±3.5Ω
- Output Terminal Resistance: 350±5Ω
- Insulation Resistance: 1000MΩ or more (DC50V)
- Compensated Temperature Range (Temperature of medium to be measured): -10~50°C(No condensation or freezing)
- Safe Temperature Range (Temperature of medium to be measured): -10~75°C(No condensation or freezing)
- Safe Overload Rating: 150%R.C.
- Ultimate Overload Rating: 300%R.C.
- Temperature Effect on Zero Balance: ±0.8%R.C./10°C
- Temperature Effect on Load: ±0.8%R.C./10°C
- Fastening Torque;Recommended: 10~20N・m
- Fastening Torque;Maximum: 30N・m
- Connection Screw: G3/8
- Pressure Port Material: SUS630 or 15-5PH (Precipitation hardening stainless steels) (*1)

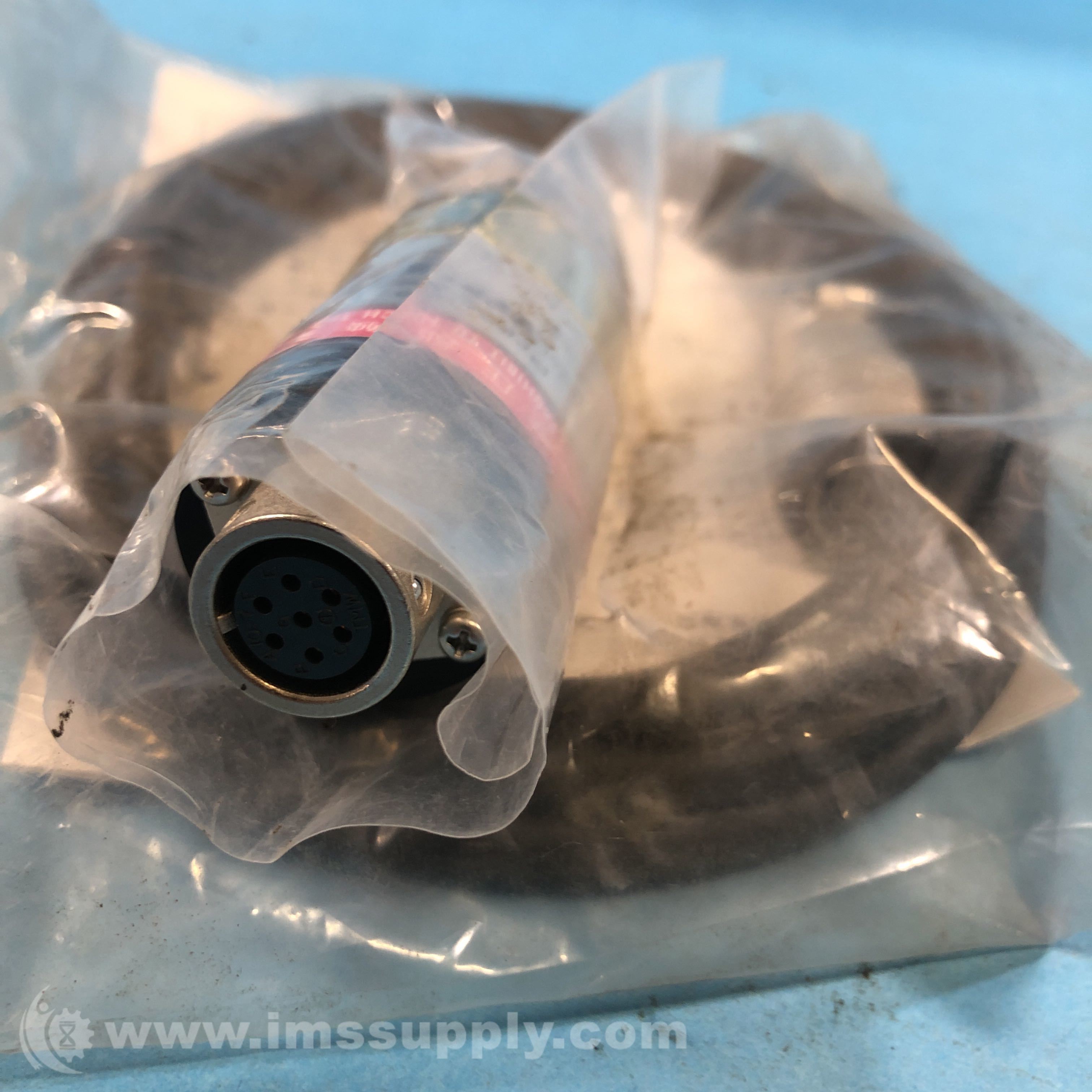

- Cable: 4-core shielded (oilproof) cable 3m(Standard) φ6mm
- Weight: Approx. 200g(Cable not included)
