VALCOM VPRTF-1MP HIGH ACCURATE PRESSURE TRANSDUCER FOR MIDDLE
Quick Overview
Manufactured By: VALCOM
Manufacturer Part Number: VPRTF-1MP
IMS Product Code: 1779633
Packaging: Sold Individually
Description:

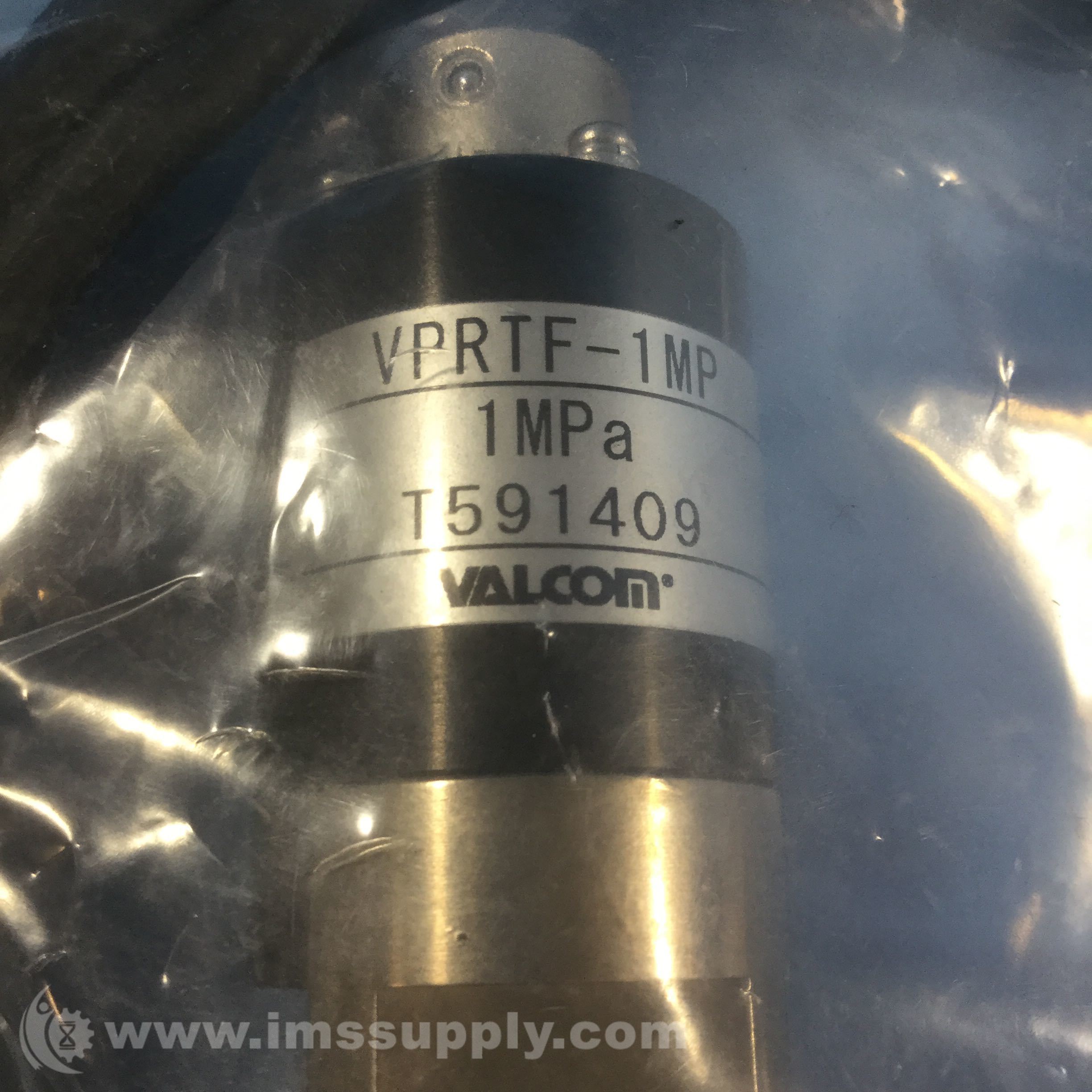

Valcom VPRTF-1MP High Accurate Pressure Transducer for Middle High Pressure
Specification:
- Rated Output(R.O.): 1.53mV/V ±0.153mV/V (1MPa, 2MPa: 1.53mV/V +0.688mV/V-0.20mV/V)
- Non Linearity: ±0.2%R.C. (1MPa: ±0.3%R.C.)
- Hysteresis: ±0.2%R.C. (1MPa: ±0.3%R.C.)
- Excitation;Recommended: 6V
- Excitation; Maximum: 15V
- Input Terminal Resistance: 373.6±5Ω
- Output Terminal Resistance: 350±5Ω
- Insulation Resistance: 1000MΩ or more (DC50V)
- Compensated Temperature Range (Temperature of medium to be measured): -20~70°C(No condensation or freezing)
- Safe Temperature Range (Temperature of medium to be measured): -30~80°C(No condensation or freezing)
- Safe Overload Rating: 150%R.C.
- Ultimate Overload Rating: 200%R.C.
- Temperature Effect on Zero Balance: ±0.2%R.C./10°C
- Temperature Effect on Load: ±0.2%R.C./10°C
- Fastening Torque;Recommended: 1MPa~5MPa: 20N・m, 10MPa~50MPa: 40N・m, 100MPa: 80N・m
- Fastening Torque;Maximum: 1MPa~5MPa: 30N・m, 10MPa~50MPa: 60N・m, 100MPa: 120N・m
- Connection Screw: Selectable: R3/8 and G3/8 (100MPa: Selectable R1/2 and G1/2)
- Pressure Port Material: SUS630 or 15-5PH (Precipitation hardening stainless steels)(*1)

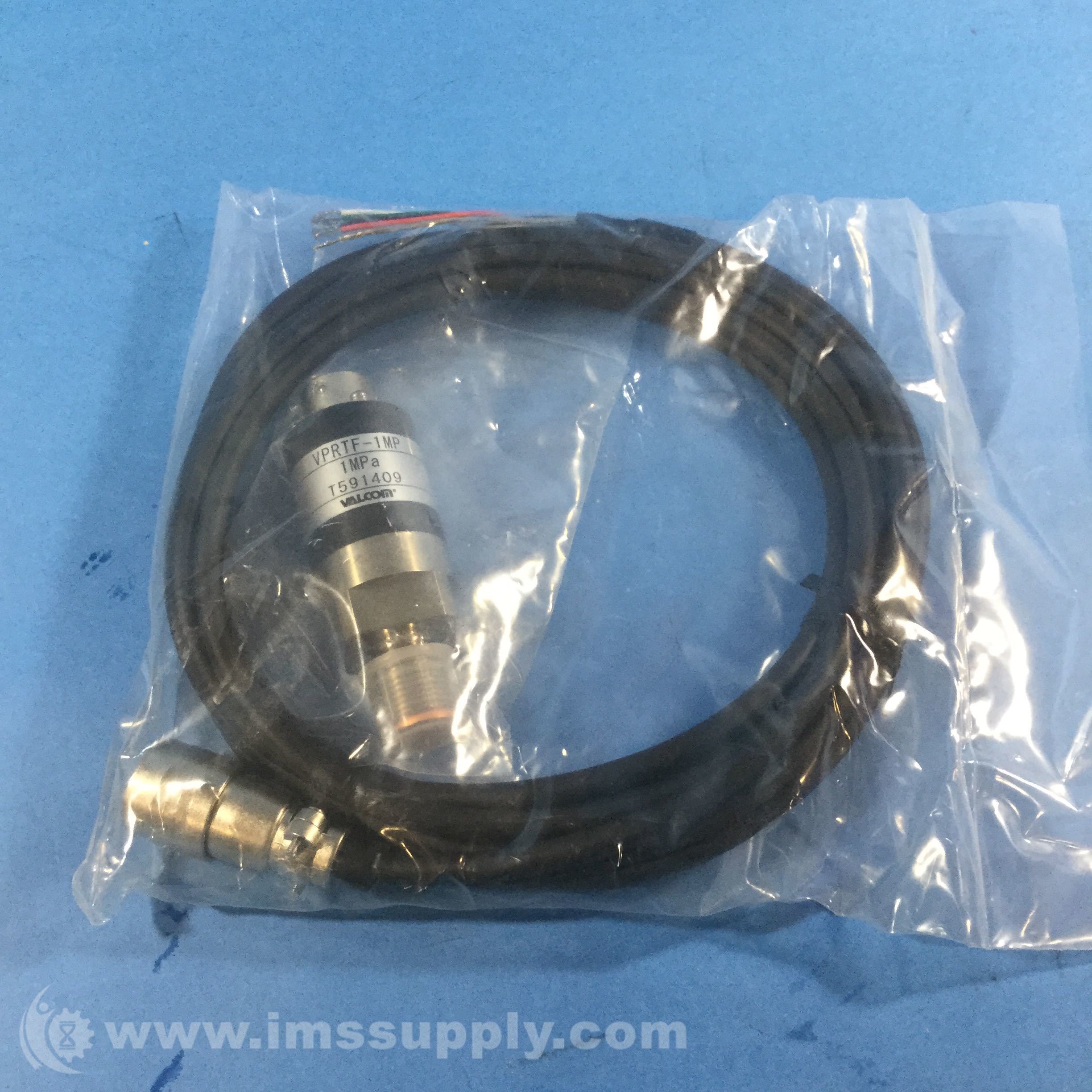

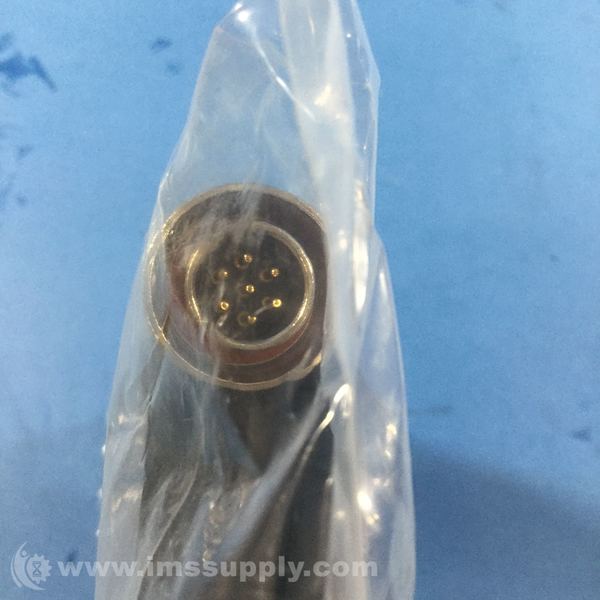

- Cable: 4-core shielded (oilproof) cable 3m(Standard) φ6mm
- Weight: Approx. 200g(Cable not included)
- Accessories: Test report (1 copy), Copper packing(×1)(G screw only)
