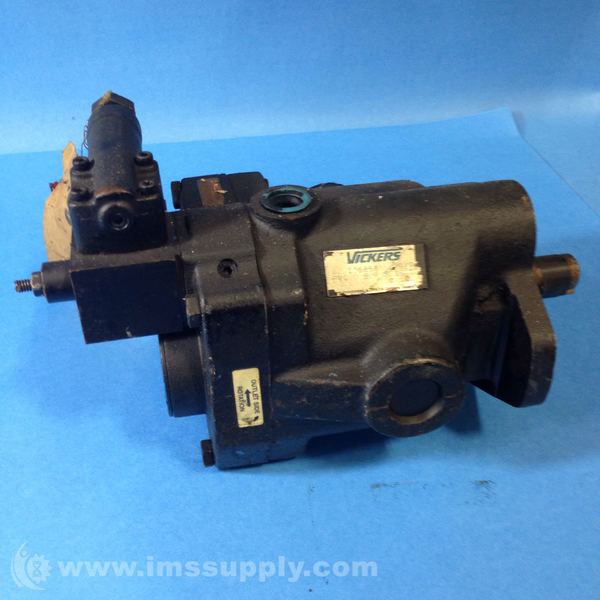

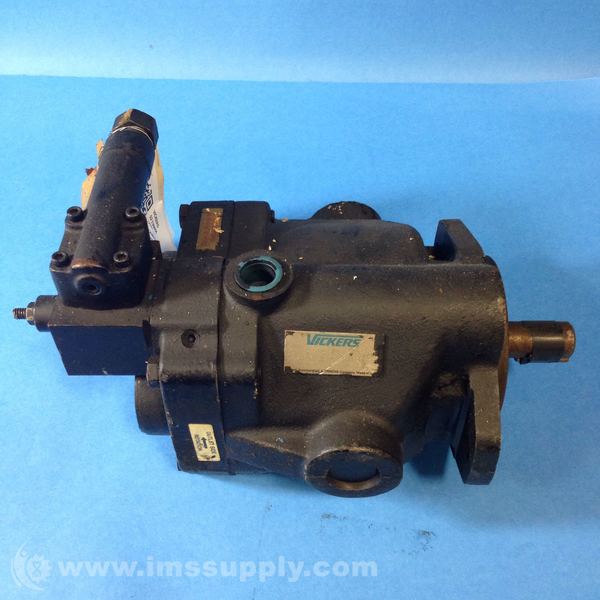

VICKERS 02 136856 PISTON PUMP
Quick Overview
Manufactured By: VICKERS
Manufacturer Part Number: 02 136856
IMS Product Code: 1735055
Packaging: Sold Individually
Description:
Feature Code Description
SERIES: PVQ/ INLINE PISTON PUMP, VARIABLE VOLUME, QUIET SERIES
DISPLACEMENT: 20/ 21.1 CC/REV (1.29 CIR), 210 BAR (3000 PSI)
MOUNTING FLANGE: -B2/ FLANGE SAE J744 101-2 (SAE-B)
INPUT SHAFT ROTATION: R/ RIGHT-HAND ROTATION (CW)
THRU-DRIVE WITHOUT COUPLING: --/ NO THRU-DRIVE
PORTS - TYPE AND LOCATION: -SE/ STANDARD - INCH O-RING BOSS, 1.625" INLET AND OUTLET, END PORT
SHAFTS - INPUT: 1/ STRAIGHT KEYED, SAE "A" MODIFIED 0.75 X 1.75 LG
SEALS: S/ BUNA N, STANDARD
PUMP DESIGN NUMBER: -10/ 10
CONTROL TYPE: -C21/ Pressure Compenstor 210 BAR
CONTROL OPTIONS: --/ WITHOUT ADJUSTABLE MAXIMUM DISPLACEMENT STOP (STANDARD)
CONTROL DESIGN: -11/ 11
SPECIAL FEATURES --/ NONE
