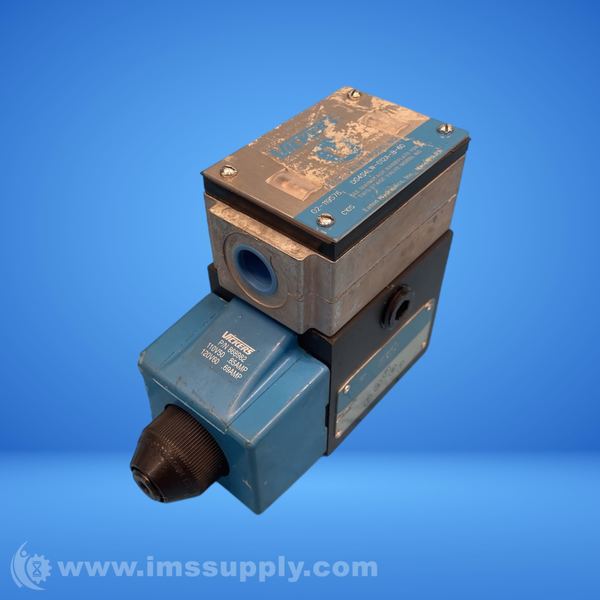

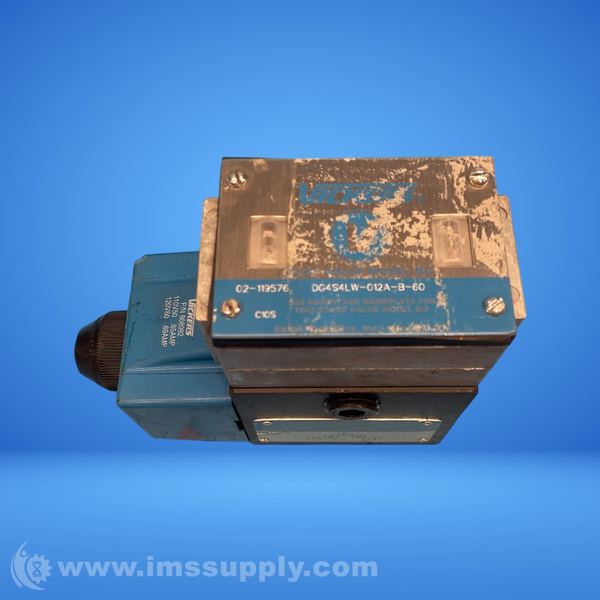

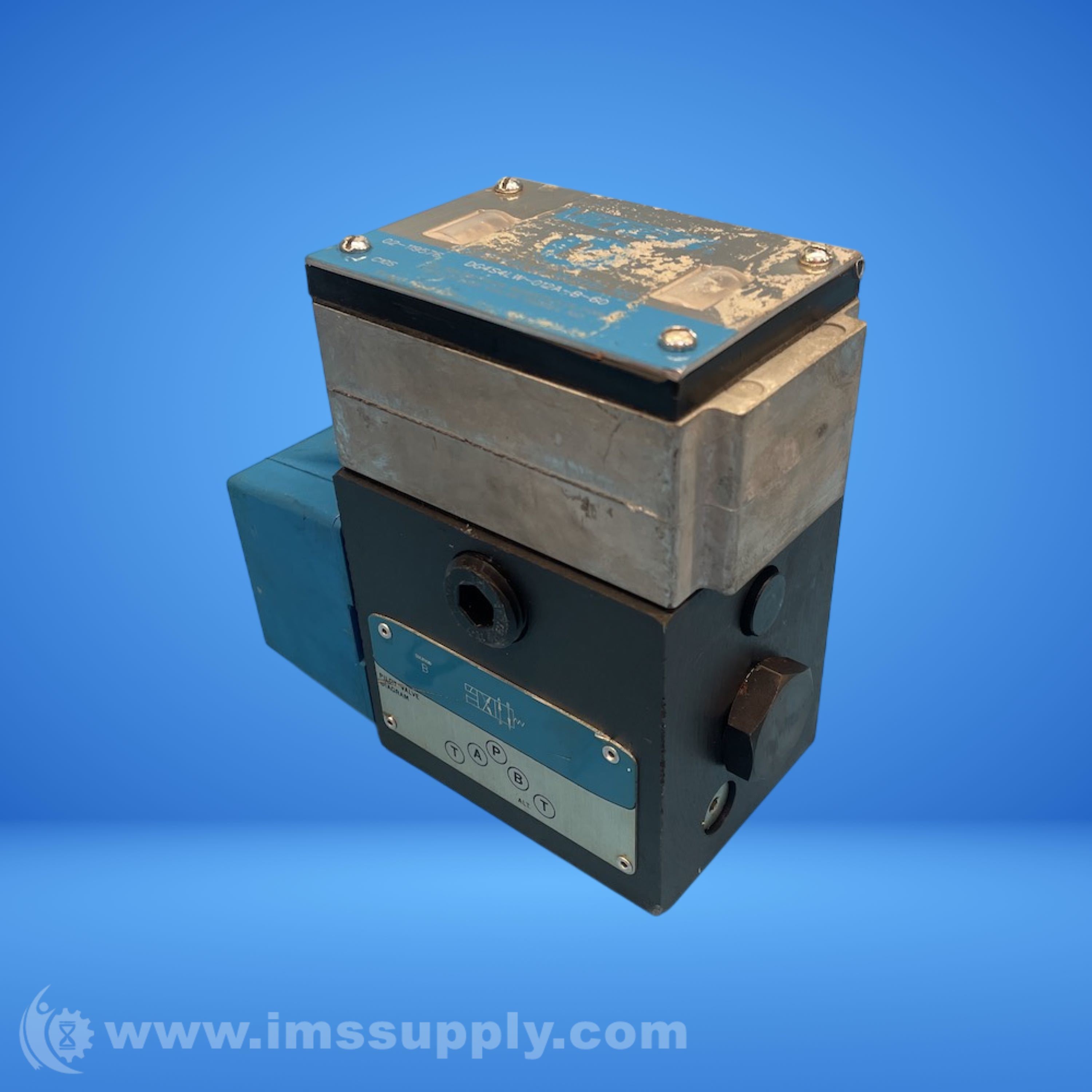

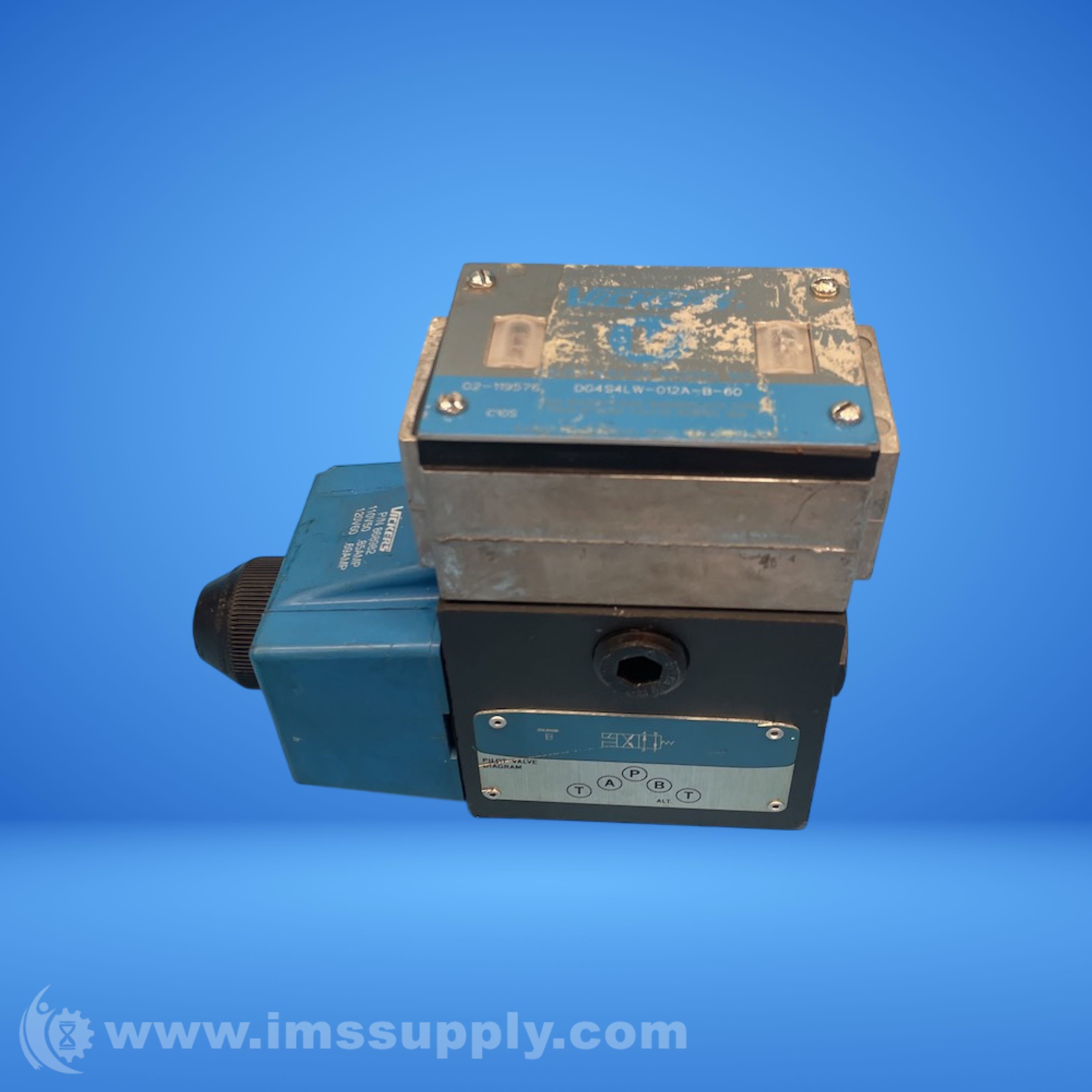

VICKERS DG4S4LW-012A-B-60 DIRECTIONAL CONTROL VALVE
Quick Overview
Manufactured By: VICKERS
Manufacturer Part Number: DG4S4LW-012A-B-60
IMS Product Code: 2132292
Packaging: Sold Individually
Description:
Vickers DG4S4LW-012A-B-60 Directional Control Valve
Directional Control Valve - Solenoid Actuation, 4-Way, D05 Valve, 20 gpm Max Flow, 110 V ac (50 Hz) / 120 V ac (60 Hz) Coil
Specifications
- Actuation: Solenoid
- Body Material: Gray Iron
- Coil Voltage: 110 V ac (50 Hz) / 120 V ac (60 Hz)
- Design Number: 60
- Flow Direction: 4-Way
- Maximum Flow Rate: 20 gpm
- Maximum Operating Pressure: 3600 psi
- Max Operating Temperature: 180 degrees F
- Min Operating Temperature: 70 degrees F
- Mounting Type: Manifold, Subplate
- Orifice Size: 0.047 in
- Overall Height: 137.4 mm
- Overall Length: 173.8 mm
- Overall Width: 71.4 mm
- Seal Material: Buna-N
- Series: DG4S4-01 60 Design
- Size (ISO-4401): D05
- Spool Type: Closed Center (All Ports)
- Spool Spring Arrangement: Spring Offset
- T Port Pressure Rating: 1000 psi
- Valve Size: D05
- Weight: 4.08 kgs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
