VICKERS DGMFN-5-Y-A2W-B2W-30 FLOW CONTROL VALVE
Quick Overview
Manufactured By: VICKERS
Manufacturer Part Number: DGMFN-5-Y-A2W-B2W-30
IMS Product Code: 1811521
Packaging: Sold Individually
Description:

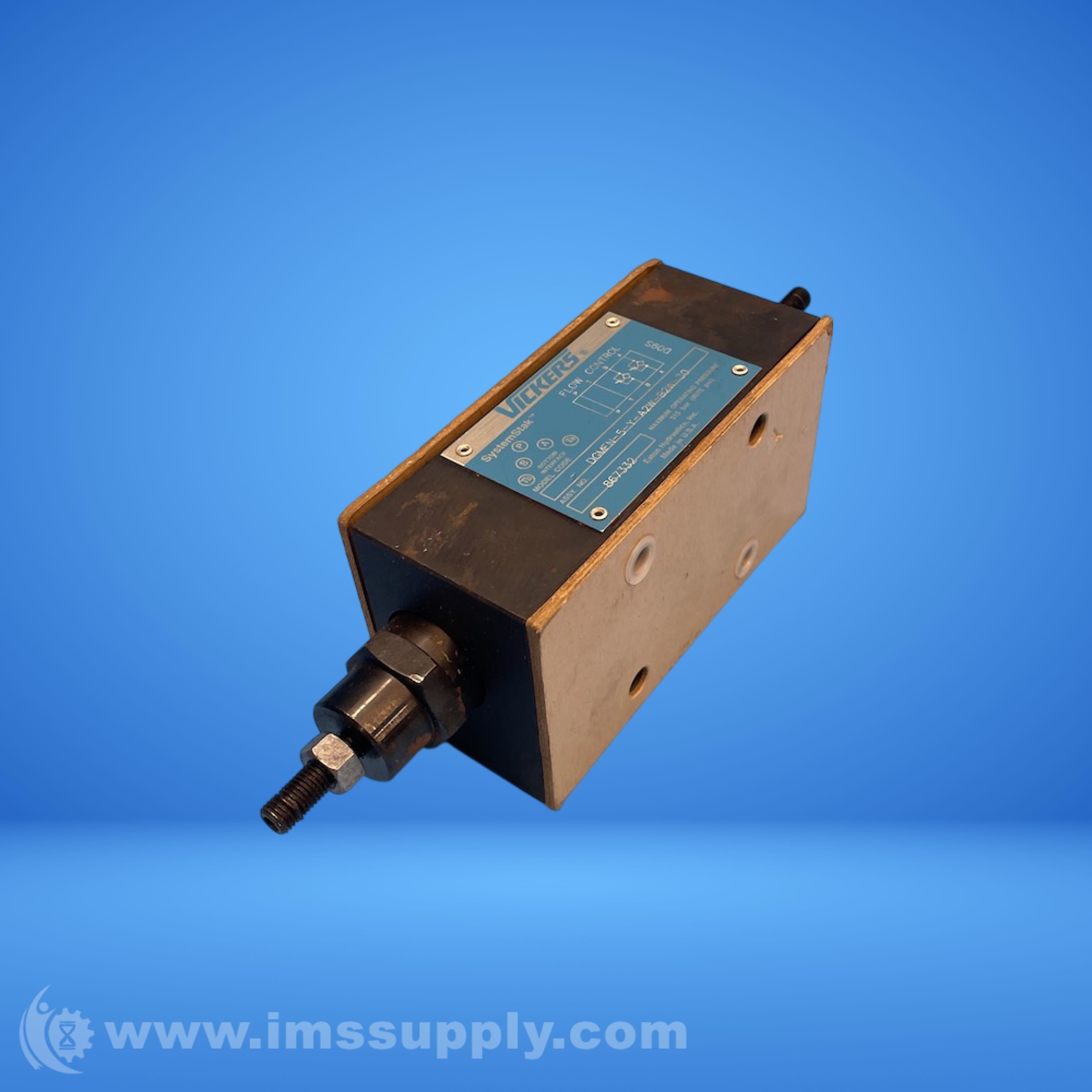

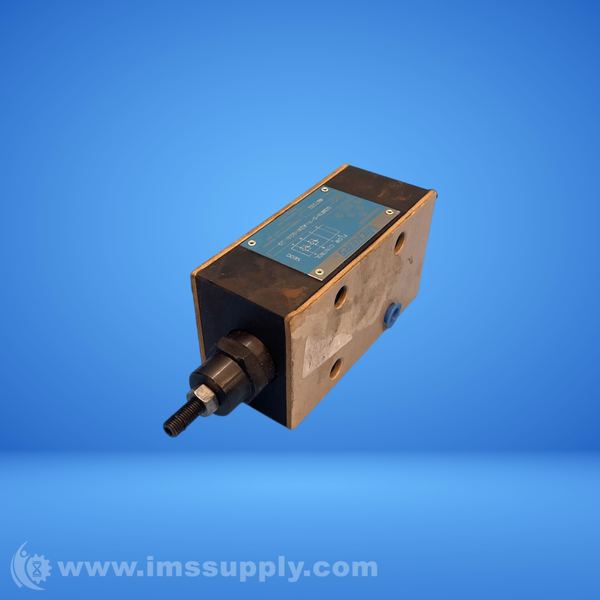

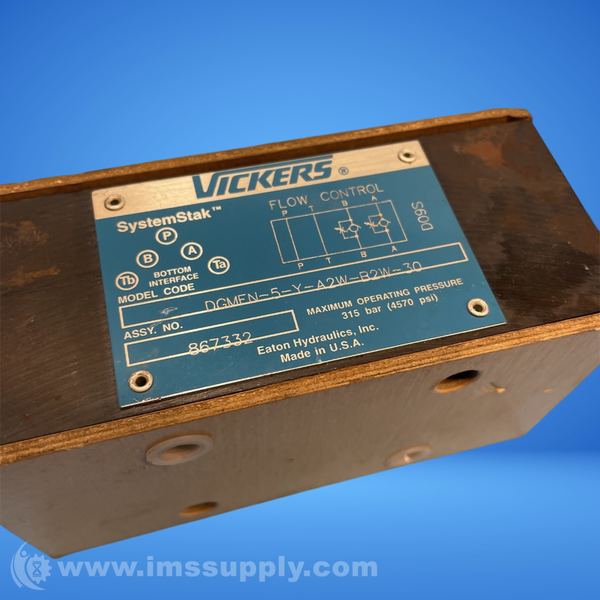

Vickers DGMFN-5-Y-A2W-B2W-30 Flow Control Valve
Non-compensated flow control valve with check, D05 size, dual meter-out configuration. Maximum operating pressure of 315 bar (4570 psi) and maximum flow rate of 32 gpm. Control ports A and B, Viton seals, screw adjustment with locknut, and cast iron body.
Specifications
- Actuation Type: Pressure operated
- Adjustment Type: Screw and locknut
- Control Type: Standard control
- Design Series: 30 Series
- Direction of Flow: Meter-out control
- Flow Rate: 32 gpm
- Fluid Cleanliness: 19/17/14 micron
- Fluid Compatibility: Petroleum Oils
- Interface: ISO4401-05
- Location Control Function: Line A and Line B
- Maximum Pressure: 315 bar (4570 psi)
- Performance: Standard
- Seal Type: Viton
- Valve Mount Type: Subplate/manifold mounted
- Valve Type: Flow control valve
- Weight: 3.05 kgs (or 10 lbs)
- Working Temperature: -20°C to 50°C (-4°F to 122°F)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
