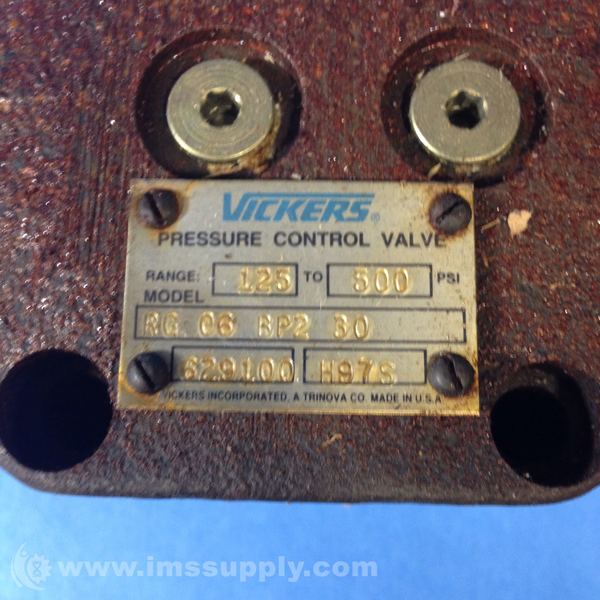

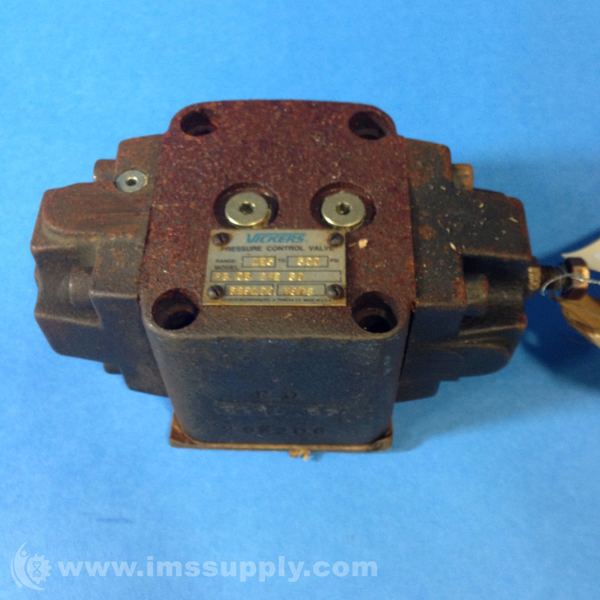

VICKERS RG 06 BP2 30 PRESSURE CONTROL VALVE
Starting At: $862.50
Quick Overview
Manufactured By: VICKERS
Manufacturer Part Number: RG 06 BP2 30
IMS Product Code: 1735097
Packaging: Sold Individually
Description:
Valve Function: Sequence Valve, Directly Controlled
Rated Flow Capacity: 30 GPM, (114 L/Min.)
SUBPLATE: Rxgm-06Sx-20, Sold Separately
MAXIMUM PRESSURE: 3,000 Psi (207 Bar)
ADJUSTMENT SCREW: 390224 Sold Separately
WEIGHT: 14.00 Lbs.
Electronic Catalog: Click here
VICKERS PAPER CATALOG: 686
TANK DRAIN INFORMATION: Valve Should Be Piped Directly To Tank At Atmospheric Pressure. Any Pressure At The Drain Port Must Be Added To The Pressure Setting Of The Valve.
SEAL KIT: 919781 Sold Separately
Valve Series: R(C)G-03/06/10 Series
BODY (SUB. ASSY.): 581722 Sold Separately
Options: Auxiliary Remote Connection
Additional Detail: Pressure Can Be Adjusted By Loosening A Jam Nut And Turning An Adjustment Screw. Turning Clockwise Increases Pressure, And Turning Counterclockwise Decreases Pressure.
Trade/Brand Name: Vickers
TYPE: Subplate Mounted, Sequence Valve, Directly Controlled
Application: Used To Control The Sequencing Of Oil Flow In Hydraulic Systems.
TYPE SEALS: Buna-N Seals, (Standard)
OPERATED: Manual
Synonym: Pressure Control
Adjustable Pressure Range: 125 PSI To 500 PSI, (8,5 Bar To 35 Bar)
SPRING: 342243 Sold Separately
STANDARD UNIT OF MEASURE: 1 Each
SPOOL: 340306 Sold Separately
TYPE DRAIN: External Drain, Directly Operated
Valve Size: Size-06
VICKERS PAPER PARTS AND REPAIR DRAWING NUMBER: I-3656-S
BOLT KIT: Bkrx06661, Sold Separately
PLUNGER: 593888 Sold Separately
Additional Part No(s): 629100
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Let IMS Repair Yours:
Connect with IMS engineers who will repair your broken or damaged VICKERS RG 06 BP2 30 PRESSURE CONTROL VALVE. Contact us today for details.
Repair Time Estimates Provided In Quote
