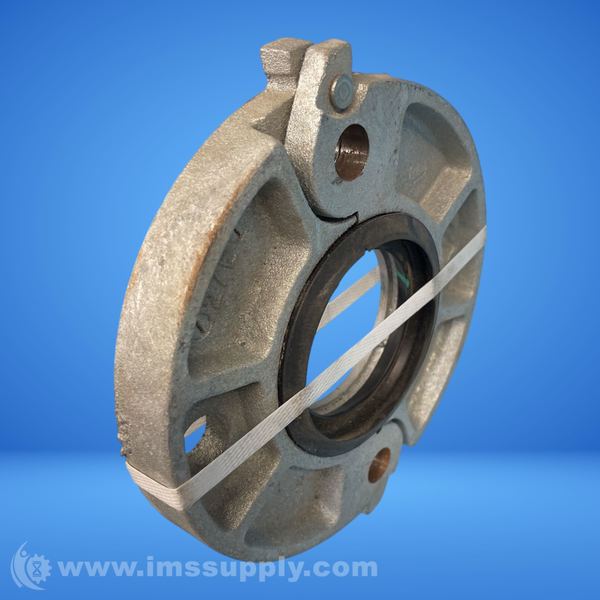

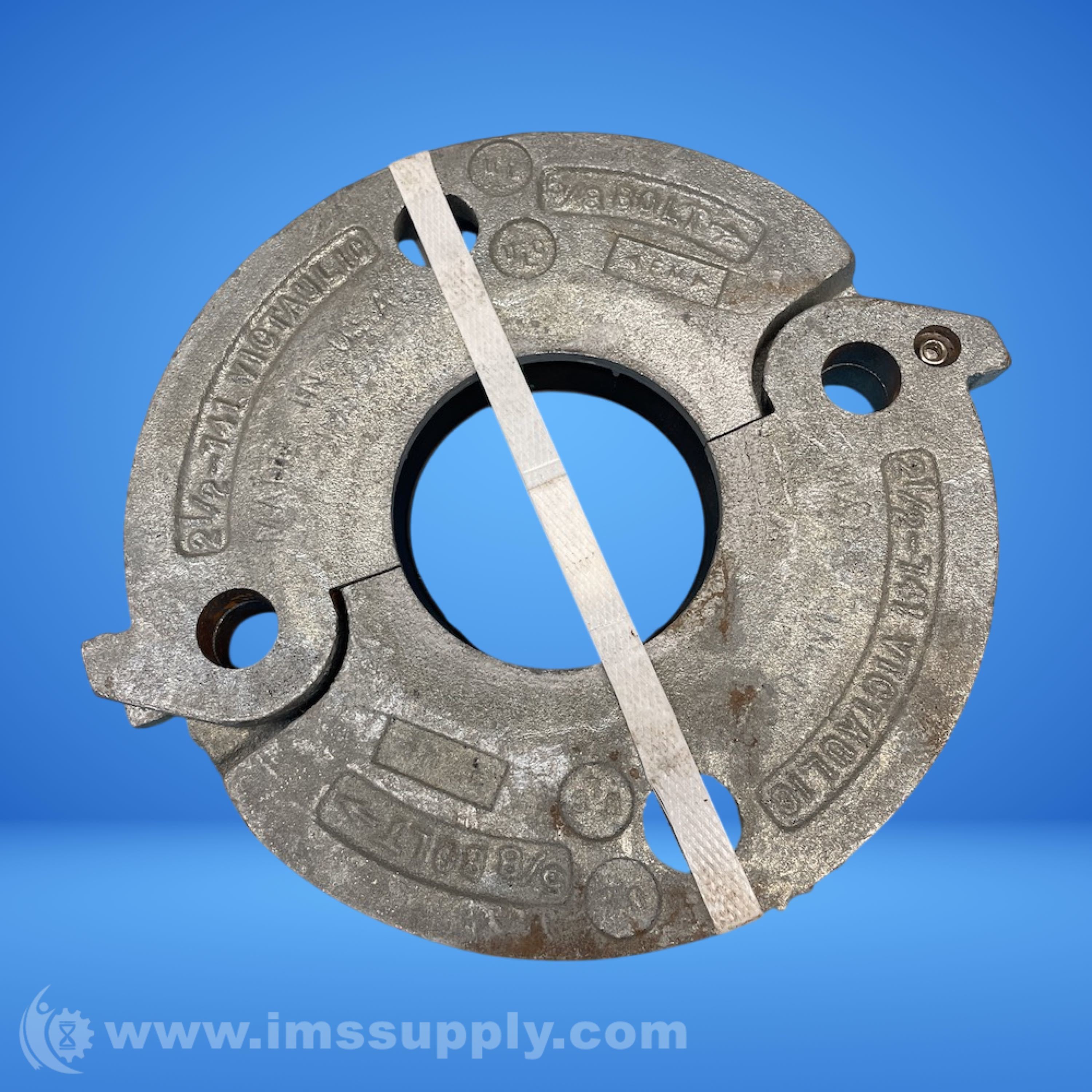

VICTAULIC 21/2-741 FLANGE ADAPTER
Quick Overview
Manufactured By: VICTAULIC
Manufacturer Part Number: 21/2-741
IMS Product Code: 2133260
Packaging: Sold Individually
Description:
Victaulic 21/2-741 Flange Adapter
Ductile Iron Flange Adapter with T-Gasket
Specifications
- ansi: ANSI C606, ANSI A21.10, ANSI 125, ANSI 150
- astm: ASTM A-183, ASTM A-536
- coating: Enamel
- collection: Vic-Flange Style 741
- end connection 1: Grooved
- end connection 2: Grooved
- end connections: Grooved
- fm approved: Yes
- fitting size 1: 2-1/2 in
- fitting size 2: 2-1/2 in
- fitting sizes: 2-1/2 in
- fitting type: Straight
- iso: ISO 2084
- material: Ductile Iron
- maximum temperature: 230
- nsf: NSF 61, NSF 372
- nsf certified: Yes
- pressure - maximum: 300 psi
- ul listed: Yes
- sub brand: Vic-Flange
- item name: Flange Adapter With Grade T Gasket
- series/model: Style 741
- nominal size: 2-1/2 IN
- flange outside diameter: 7 IN
- nominal bore size: 2-7/8 IN
- flange thickness: 0.88 IN
- bolt circle diameter: 5-1/2 IN
- number of bolts: 4
- bolt hole diameter: 5/8 IN
- material standard: ASTM A536 Grade 65-45-12
- finish/color: Black Enamel Painted
- maximum pressure: 300 PSI
- industry standards: C/US UL Listed, FM, LPCB, VDS, LR, RINA, CNBOP, DNV-GL Approved
- other physical dimension: 3 IN Bolt Length, 3.91 - 2.88 IN Sealing Surface
- domestic/import: Import
- additional specifications: End Load: 1950 LB Maximum
- weight: 4.800 LB
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 6 hours and 52 minutes.
