WAGO 2002-2238 DOUBLE-DECK TERMINAL BLOCK
Quick Overview
Manufactured By: WAGO
Manufacturer Part Number: 2002-2238
IMS Product Code: 1942023
Packaging: Sold Individually
Sold Individually
Box of 50
Description:

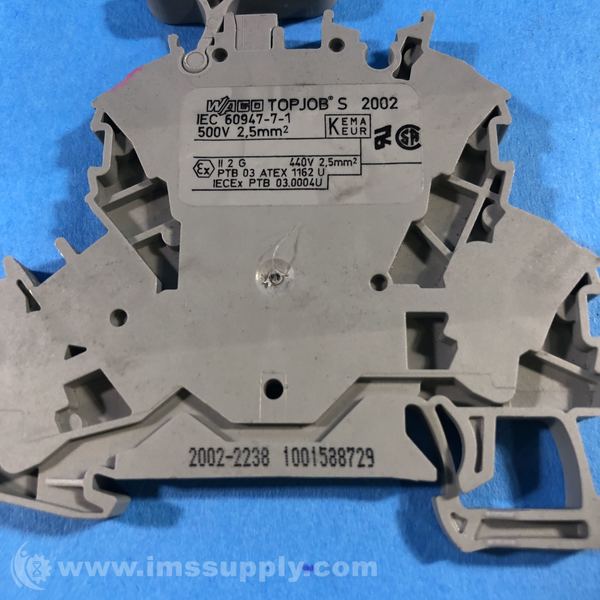

Wago 2002-2238 Double-Deck Terminal Block
Double-deck terminal block with Push-in CAGE CLAMP connection, 4-conductor, 5.2 mm wide, gray, for DIN-rail 35 x 15 and 35 x 7.5
Specifications
- width: 5.2 mm
- mounting type: rail mount
- number of conductors: 4
- color: gray
- nominal cross section: 2.5 mm²
- rated voltage: 500 V
- rated current: 24 A
- material insulation body: Polyamide
- strip length: 10 - 12 mm
- number of connection points: 4
- number of potentials: 1
- height: 69.7 mm
- length: 69.7 mm
- depth: 61.8 mm
- weight: 11.166 g
- rated impulse voltage: 6 kV
- overvoltage category: III
- pollution degree: 3
- min. connectable conductor cross-section multiple wire: 0.25 mm²
- max. connectable conductor cross-section multiple wire: 4 mm²
- min. line cross section, rigid: 0.25 mm²
- max. line cross section, rigid: 4 mm²
- min. line cross section, flexible: 0.25 mm²
- max. line cross section, flexible: 4 mm²
- min. connectable conductor cross-section fine wire with conductor end sleeve: 1 mm²
- max. connectable conductor cross-section fine wire with conductor end sleeve: 4 mm²
- number of clamp positions per level: 2
- number of levels: 2
- type of electrical connection 1: Push In connection
- type of electrical connection 2: Push In connection
- inflammability class of insulation material according to with UL94: V0
- min. operating temperature: -60 °C
- max. operating temperature: 105 °C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
