WAGO 2002-3217 TRIPLE DECK TERMINAL BLOCK
Quick Overview
Manufactured By: WAGO
Manufacturer Part Number: 2002-3217
IMS Product Code: 1813118
Packaging: Sold Individually
Description:

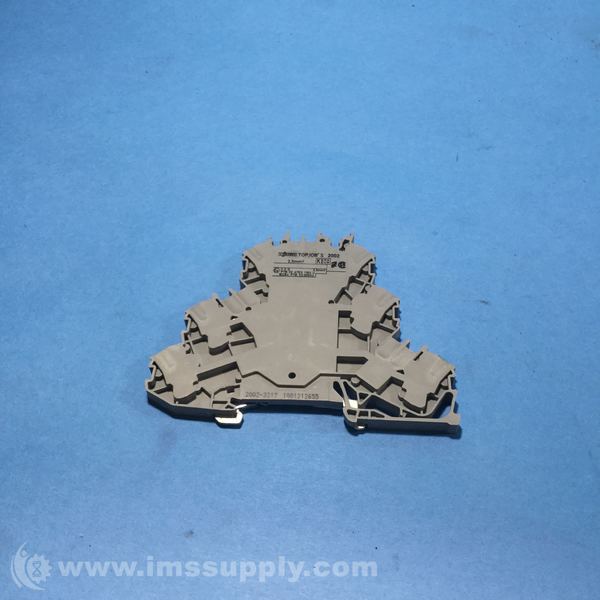

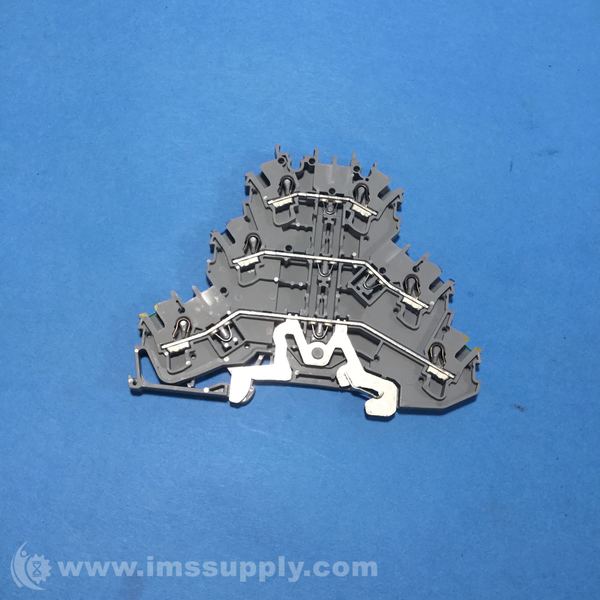

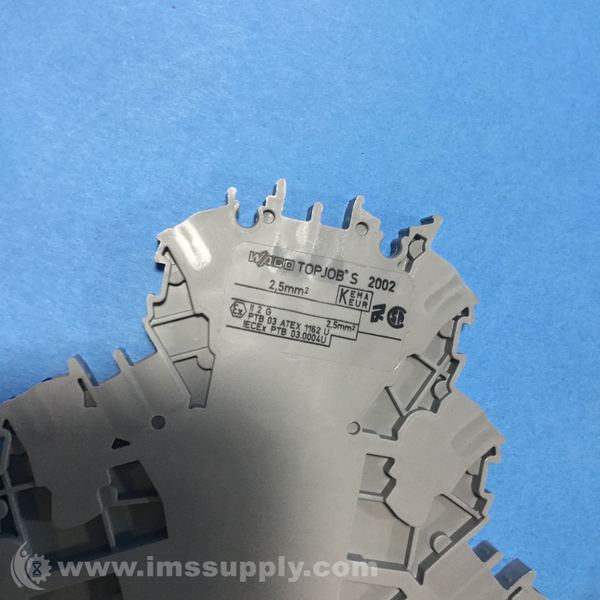

Wago 2002-3217 Triple Deck Terminal Block
Triple-deck terminal block with ground/through/through configuration (PE/N/L), rail mount, 2-conductor, 5.2 mm wide, gray. Push-in CAGE CLAMP connection technology. Suitable for Ex e II applications. Rated current 24A. Nominal cross-section 2.5 mm˛.
Specifications
- Manufacturer: Wago
- Product Series: 2002 Series
- Mounting Type: Rail Mount
- Width: 5.2 mm
- Color: Gray
- Number of Conductors: 2
- Type: Ground/Through/Through (PE/N/L)
- No. of Positions: 6
- Wire Size AWG Min: 22 AWG
- Wire Size AWG Max: 12 AWG
- Conductor Area CSA: 4 mm˛
- Wire Connection Method: Clamp
- Rated Current: 24 A
- Rated Voltage: 500 V
- No. of Levels: 3
- Nominal Cross Section: 2.5 mm˛
- Solid Conductor: 0.25 - 4 mm˛
- Solid Conductor Push-in Termination: 0.75 - 4 mm˛
- Fine-stranded Conductor: 0.25 - 4 mm˛
- Fine-stranded Conductor with Ferrule: 1 - 4 mm˛
- Strip Length: 10 - 12 mm
- Height at Lowest Possible Mounting Height: 81.3 mm
- Length: 93.3 mm
- Mounting Method: Top-hat Rail TH35
- Material Insulation Body: Polyamide
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
