WAGO 222 LEVER-NUT CONNECTOR
Quick Overview
Manufactured By: WAGO
Manufacturer Part Number: 222
IMS Product Code: 2140202
Packaging: Sold Individually
Description:

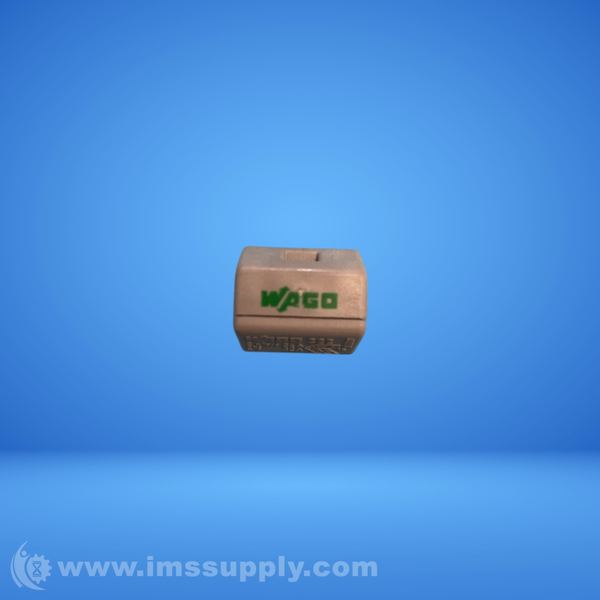

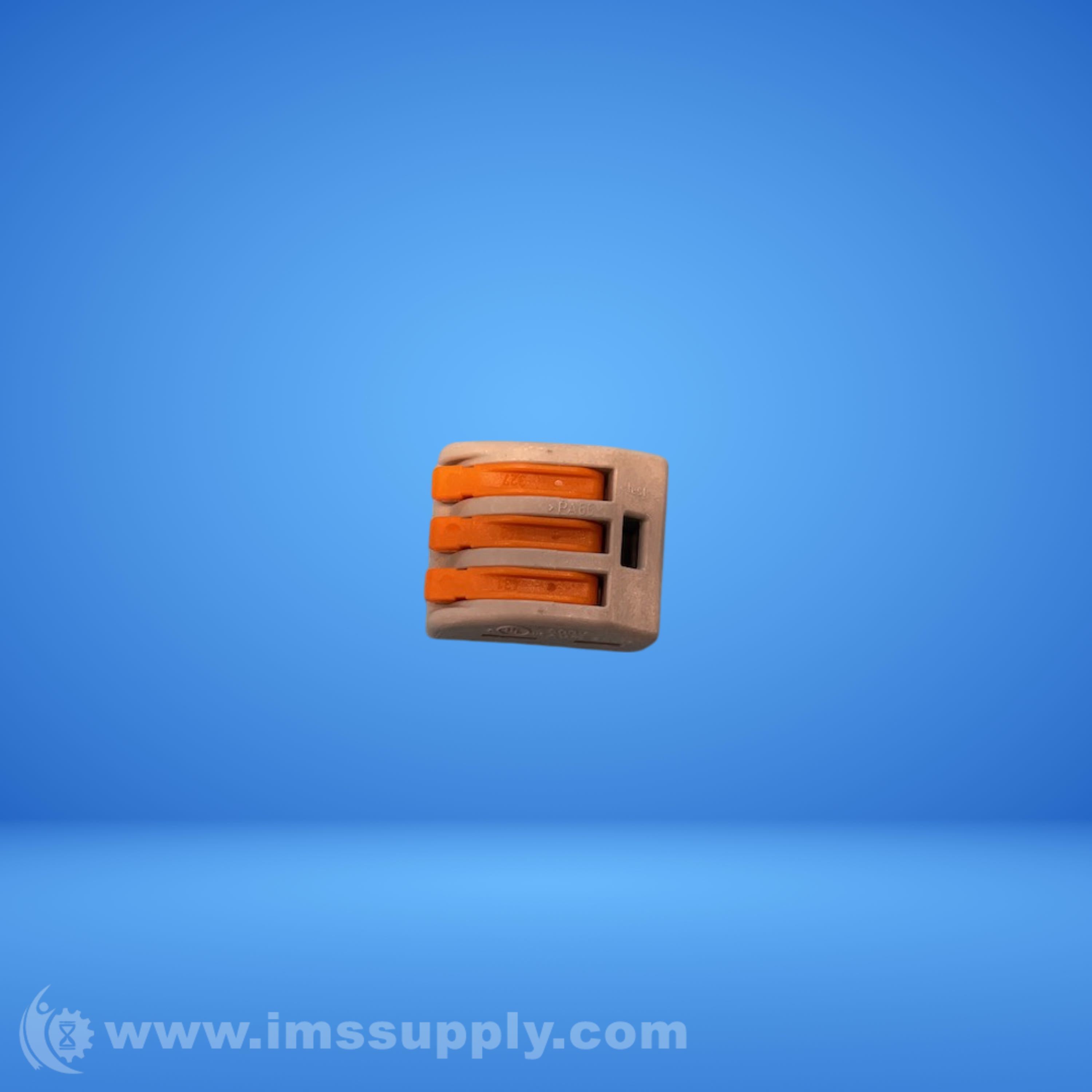

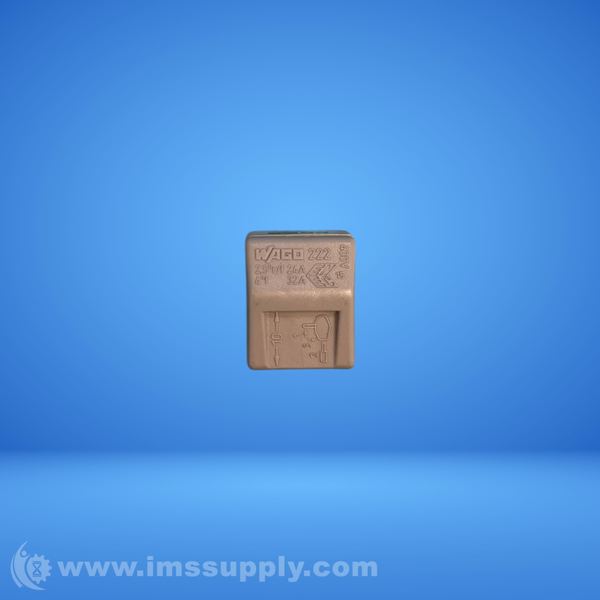

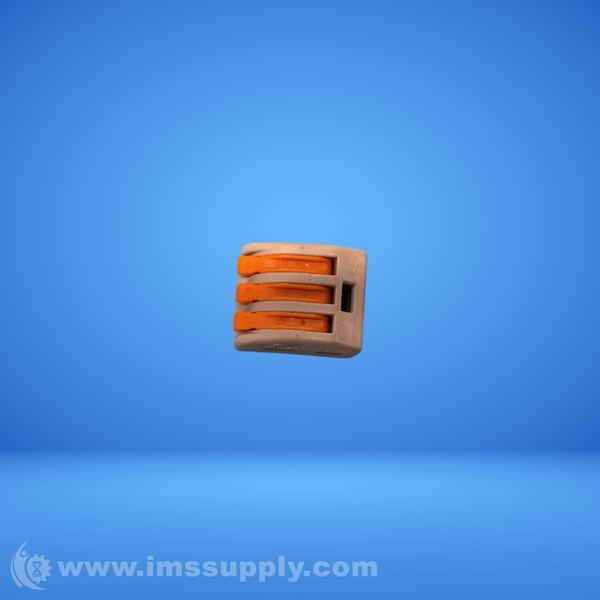

Wago 222 Lever-Nut Connector
Compact splicing connector with lever actuation for copper conductors.
Specifications
- Series: 222 Series
- Connector Type: Splice
- Actuation Type: Lever
- Conductor Material: Copper
- Housing Material: Polyamide
- Solid Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Stranded Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip Length: 9 … 10 mm / 0.35 … 0.39 inch
- Wiring Direction: Side-entry wiring
- Width: 12.4 mm / 0.488 inch
- Height: 14.5 mm / 0.571 inch
- Depth: 20.5 mm / 0.807 inch
- Color: Gray
- Color of Actuator: Orange
- Nominal Voltage (II/2): 400 V
- Rated Surge Voltage (II/2): 4 kV
- Rated Current: 32 A
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 16 In Stock
Ships today if ordered in the next 3 hours and 44 minutes.
